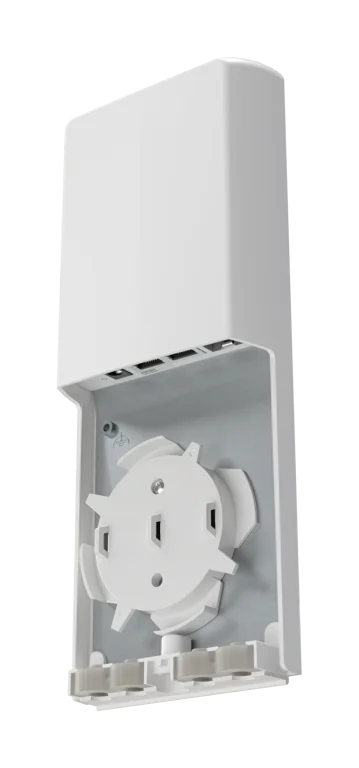

FTC21
A weatherproof IP55 Fiber-to-Copper converter with smart management capabilities for your fiber and Ethernet setups.
A weatherproof IP55 Fiber-to-Copper converter with smart management capabilities for your fiber and Ethernet setups. The FTC21 is not just a simple media converter. It runs a full version of SwOS Lite, offering advanced management features:
- Interface monitoring and management
- VLAN support
- SNMP reporting
- Basic traffic shaping
- Advanced packet filtering with Access Control Lists - allowing for packet filtering, accounting, and VLAN tagging based on Layer 2, 3, and 4 protocol header conditions

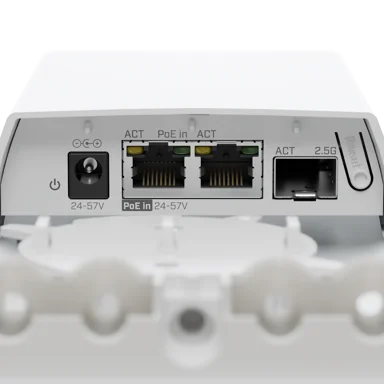

This compact device is housed in a weatherproof IP55 enclosure, making it suitable for outdoor and harsh environments. Powering is simple and flexible, with both PoE-in and a DC jack that support 24-57V. The FTC21 is highly efficient, consuming only 3W without attachments and up to 4W fully loaded.

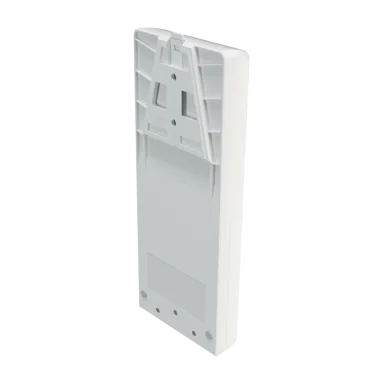

It comes with everything you need for installation, including a 48V power adapter, a PoE injector, and a ceiling mount and fastening set. For reliable, smart Fiber-to-Copper conversion, the FTC21 is the ideal choice.
Specification
- Product code FTC21
- Suggested price $59.00
- Switch chip model 88E6341
- MTBF Approximately 100'000 hours at 25C
- Tested ambient temperature -40°C to 70°C
- Number of DC inputs 2 (DC jack, PoE-IN)
- DC jack input Voltage 24-57 V
- Max power consumption 4 W
- Max power consumption without attachments 3 W
- PoE in 802.3af/at
- Cooling type Passive
- PoE in input Voltage 24-57 V
- 10/100/1000 Ethernet ports 2
- SFP ports 1 (2.5G supported)
- Certification CE, EAC, ROHS
- IP 55
| FTC21 | |||||||
| Mode | Configuration | 1518 byte | 512 byte | 64 byte | |||
| kpps | Mbps | kpps | Mbps | kpps | Mbps | ||
| Switching | Non blocking Layer 2 throughput | 325.1 | 3948.0 | 939.8 | 3849.4 | 5952.4 | 3047.6 |
| Switching | Non blocking Layer 2 capacity | 325.1 | 7896.0 | 939.8 | 7698.8 | 5952.4 | 6095.2 |
| Switching | Non blocking Layer 1 throughput | 325.1 | 4000.0 | 939.8 | 4000.0 | 5952.4 | 4000.0 |
| Switching | Non blocking Layer 1 capacity | 325.1 | 8000.0 | 939.8 | 8000.0 | 5952.4 | 8000.0 |
