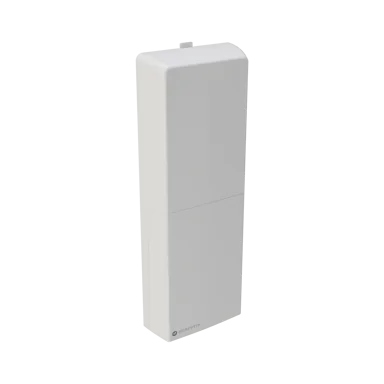

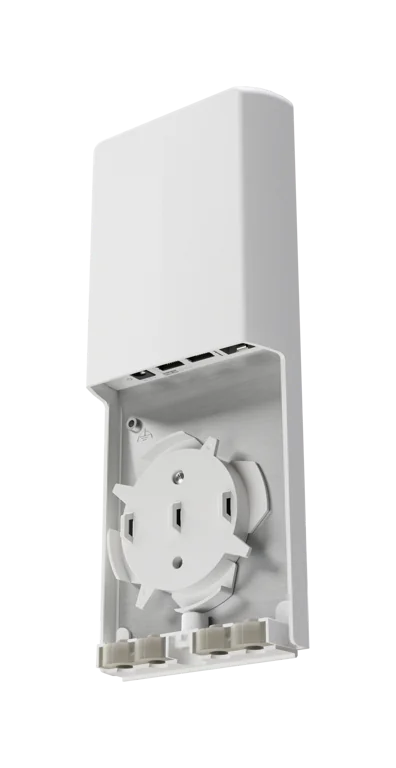

    FTC11XG A weatherproof IP55 Fiber-to-Copper converter to transform your 10 Gigabit SFP+ fiber connections into RJ45 10 Gigabit Ethernet. It runs a full version of SwOS Lite and has its own switch-chip!

    A weatherproof IP55 Fiber-to-Copper converter to transform your 10 Gigabit SFP+ fiber connections into RJ45 10 Gigabit Ethernet.

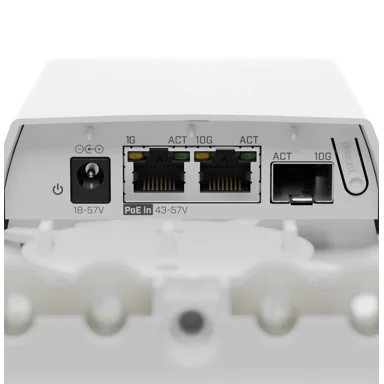

    FTC11XG offers low power consumption (9-10 W) and two ways of powering: a standard DC jack & 802.3 af/at/bt 43-57 V PoE-In. It comes with a PoE injector, a power supply, and everything you need to secure it on a ceiling.

    FTC11XG runs a full version of SwOS Lite, and has its own switch-chip, allowing you to perform a variety of tasks you would never expect from a regular media converter! Here are some of them:

    Interface management and monitoring;

    VLAN support;

    SNMP reporting;

    Basic traffic shaping;

    And even advanced packet filtering with Access Control List - a powerful network tool that allows packet filtering, accounting, and VLAN tagging based on Layer 2, 3, and 4 protocol header field conditions.

     Send purchase questions

    Product specifications

    Details
    Product code FTC11XG
    10/100/1000 Ethernet ports 1
    CPU temperature monitor Yes
    Can be used indoors Yes
    Can be used outdoors Yes
    Certification CE, EAC, ROHS
    Cooling type Passive
    DC jack input Voltage 18-57 V
    IP 55
    Max power consumption 10 W
    Max power consumption without attachments 9 W
    Number of 1G/2.5G/5G/10G Ethernet ports 1
    Number of DC inputs 2 (DC jack, PoE-IN)
    PoE in 802.3 bt
    PoE in input Voltage 43-57 V
    SFP+ ports 1
    Storage size 64 KB
    Storage type FLASH
    Switch chip model 88E6193
    Tested ambient temperature -40°C to 70°C
    Suggested price $139

    Included parts

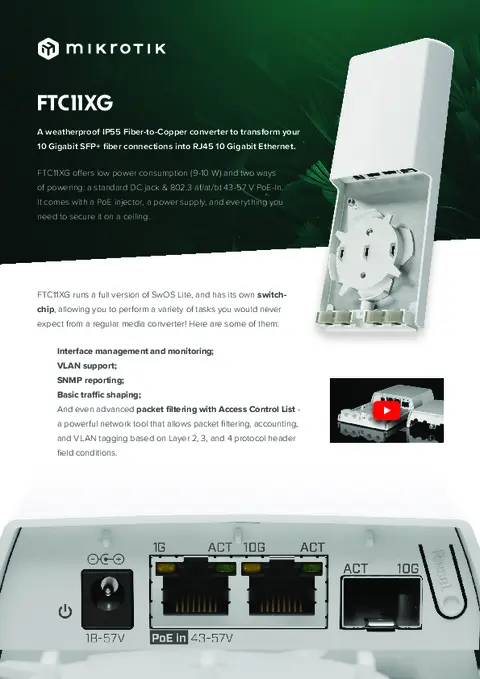

    BrochureOpen
    Quick GuideOpen
    User manualOpen
    Block DiagramOpen

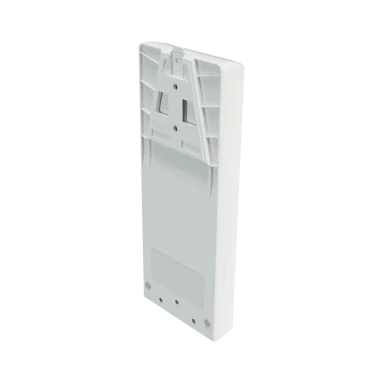

    Mount 3D modelOpen
    Declaration of conformityOpen (CE)

    High resolution images

    #
    #
    #
    #

    Switching results

    FTC11XG
    ModeConfiguration1518 byte512 byte64 byte
    kppsMbpskppsMbpskppsMbps
    SwitchingNon blocking Layer 2 throughput1625.519739.94699.219248.129761.915238.1
    SwitchingNon blocking Layer 2 capacity1625.539479.84699.238496.229761.930476.2
    SwitchingNon blocking Layer 1 throughput1625.520000.04699.220000.029761.920000.0
    SwitchingNon blocking Layer 1 capacity 1625.540000.04699.240000.029761.940000.0

    Download: Full CE declaration (PDF)
