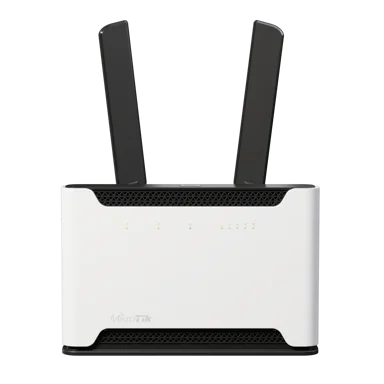

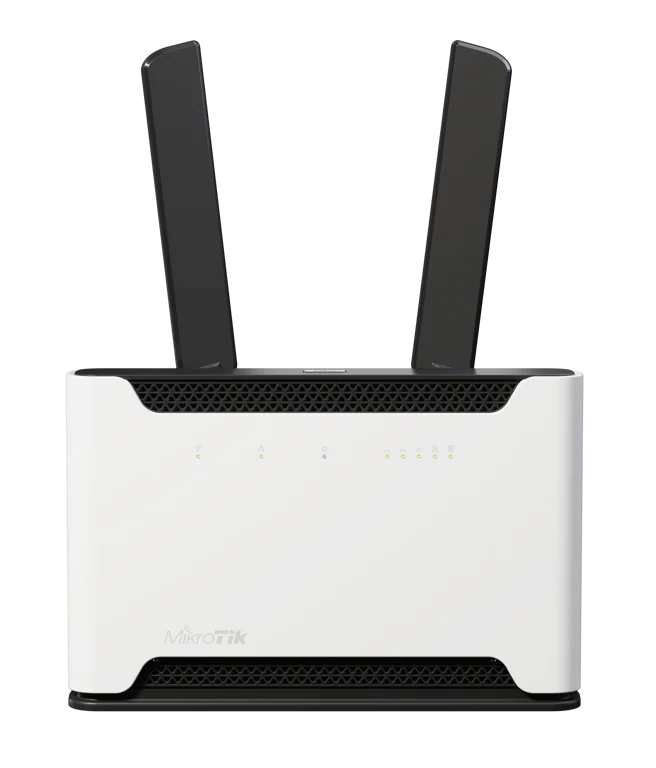

    Chateau 5G One router to delight them all – introducing the ultimate home AP with ultra-fast LTE/5G support

    Discontinued

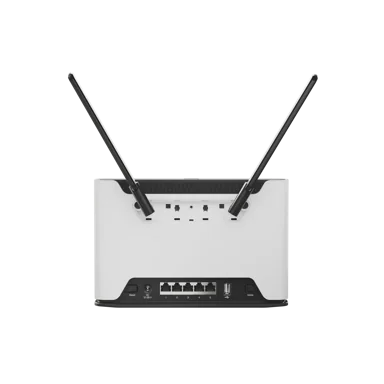

    Chateau 5G s a high-speed, dual-band home access point with LTE/5G support – for really fast Internet anywhere, anytime. There are many options to choose from, depending on your needs: from CAT4 LTE up to the CAT20 LTE and the ultra-fast 5G. But LTE is not the only option – Chateau also features 5 x Gigabit Ethernet ports and a full size USB port.

    Strong dual-chain dual-band 2.4/5 GHz wireless for concurrent coverage will solve most interference issues in a crowded environment. For example, a client can simultaneously use the 2.4 GHz channel for all household mobile devices and reserve the 5 GHz channel for tasks that are sensitive to packet loss – such as streaming high-quality videos.

    Chateau can be customized: you can choose a variety of labels, we can print your branding, if necessary. And there is another great feature – you can use TR-069 technology to create a custom remote client management option. You can choose how much control your clients need and which features of the highly versatile RouterOS they get to use. Some operators use this to allow users to configure the router via the same web-page they use to pay bills, others restrict novice users from meddling with the settings to provide better browsing experience in the long run.

    Let’s make more clients happy with MikroTik Chateau 5G!


     Send purchase questions

    Specifications

    Details
    Product code D53G-5HacD2HnD-TC&RG502Q-EA
    Architecture ARM 32bit
    CPU IPQ-4019
    CPU core count 4
    CPU nominal frequency 716 MHz
    Switch chip model IPQ-4019
    Dimensions 240 x 156 x 44 mm
    RouterOS license 4
    Operating System RouterOS v7
    Size of RAM 256 MB
    Storage size 16 MB
    Storage type FLASH
    MTBF Approximately 200'000 hours at 25C
    Tested ambient temperature -40°C to 70°C
    IPsec hardware acceleration Yes
    Suggested price $530.00

    Powering

    Details
    Number of DC inputs 1 (DC jack)
    DC jack input Voltage 12-28 V
    Max power consumption 23 W
    Max power consumption without attachments 17 W
    Cooling type Passive

    Mobile

    Details
    3G Category R8 (42.2Mbps Downlink, 5.76Mbps Uplink)
    3G bands 6 (850 MHz) / 3 (1800MHz) / 5 (850MHz) / 8 (900MHz) / 19 (800 MHz) / 1 (2100MHz)
    LTE Category 20 (2.0 Gbps Downlink, 200 Mbps Uplink)
    LTE FDD bands 1 (2100MHz) / 3 (1800MHz) / 5 (850MHz) / 7 (2600MHz) / 8 (900 MHz) / 18 (800 MHz) / 19 (800 MHz) / 20 (800MHz) / 26 (850MHz) / 28 (700MHz) / 32 (1500 MHz)
    LTE TDD bands 38 (2600MHz) / 39 (1900MHz) / 40 (2300MHz) / 41 (2500MHz) / 42 (3500MHz) / 43 (3700MHz) / 34 (2000 MHz)
    5G NSA FDD bands 1 (2100 MHz) / 3 (1800 MHz) / 5 (850 MHz) / 7 (2600 MHz) / 8 (900 MHz) / 20 (800 MHz) / 28 (700 MHz)
    5G NSA TDD bands 40 (2300 MHz) / 41 (2500 MHz) / 77 (3700 MHz) / 78 (3500 MHz) / 79 (4700 MHz) / 38 (2600 MHz)
    5G SA FDD bands 1 (2100 MHz) / 3 (1800 MHz) / 5 (850 MHz) / 7 (2600 MHz) / 8 (900 MHz) / 20 (800 MHz) / 28 (700 MHz)
    5G SA TDD bands 41 (2500 MHz) / 77 (3700 MHz) / 78 (3500 MHz) / 79 (4700 MHz) / 38 (2600 MHz) / 40 (2300 MHz)
    TAC 86073604

    Wireless specifications

    Details
    Wireless 2.4 GHz Max data rate 300 Mbit/s
    Wireless 2.4 GHz number of chains 2
    Wireless 2.4 GHz standards 802.11b/g/n
    Antenna gain dBi for 2.4 GHz 2
    Wireless 2.4 GHz chip model IPQ-4019
    Wireless 2.4 GHz generation Wi-Fi 4
    Wireless 5 GHz Max data rate 867 Mbit/s
    Wireless 5 GHz number of chains 2
    Wireless 5 GHz standards 802.11a/n/ac
    Antenna gain dBi for 5 GHz 4
    Wireless 5 GHz chip model IPQ-4019
    Wireless 5 GHz generation Wi-Fi 5

    Ethernet

    Details
    10/100/1000 Ethernet ports 5

    Peripherals

    Details
    Number of SIM slots 1 Modem (Micro SIM)
    Number of USB ports 1
    USB Power Reset Yes
    USB slot type USB type A
    Max USB current (A) 1
    Number of M.2 slots 1

    Other

    Details
    Mode button Yes

    Certification & Approvals

    Details
    Certification CE, EAC, ROHS

    Wireless specifications

    2.4 GHzTransmit (dBm)Receive Sensitivity
    1MBit/s25-100
    11MBit/s25-94
    6MBit/s26-96
    54MBit/s23-78
    MCS026-96
    MCS722-73
    5 GHzTransmit (dBm)Receive Sensitivity
    6MBit/s26-96
    54MBit/s22-80
    MCS026-96
    MCS721-75
    MCS919-70

    Included parts

    BrochureOpen
    Quick GuideOpen
    User ManualOpen
    RouterOS current release
    5G modem optionsOpen
    Mounting dimensionsOpen
    Block DiagramOpen
    RouterOS software manualOpen
    Declaration of conformityOpen (CE)

    High resolution images

    #
    #
    #

    Ethernet test results

    D53G-5HacD2HnD-TC&RG502Q-EAIPQ-4019 1G all port test
    ModeConfiguration1518 byte512 byte64 byte
    kppsMbpskppsMbpskppsMbps
    Bridgingnone (fast path)162,51973.4469,91924.71488,4762.1
    Bridging25 bridge filter rules162,51973.4351,21438.5352,1180.3
    Routingnone (fast path)162,51973.4469,91924.71488,4762.1
    Routing25 simple queues162,51973.4468,61919.4493,4252.6
    Routing25 ip filter rules162,51973.4222,8912.6227,4116.4
    1. All tests are done with Xena Networks specialized test equipment (XenaBay),and done according to RFC2544 (Xena2544)
    2. Max throughput is determined with 30+ second attempts with 0,1% packet loss tolerance in 64, 512, 1518 byte packet sizes
    3. Test results show device maximum performance, and are reached using mentioned hardware and software configuration, different configurations most likely will result in lower results

    IPsec test results

    D53G-5HacD2HnD-TC&RG502Q-EAIPQ-4018 IPsec throughput
    ModeConfiguration1400 byte512 byte64 byte
    kppsMbpskppsMbpskppsMbps
    Single tunnelAES-128-CBC + SHA137.9424.559241.761.631.5
    256 tunnelsAES-128-CBC + SHA136403.238.5157.739.820.4
    256 tunnelsAES-128-CBC + SHA25636403.238.5157.739.820.4
    256 tunnelsAES-256-CBC + SHA134.4385.337.9155.239.820.4
    256 tunnelsAES-256-CBC + SHA25634.4385.337.9155.239.820.4
    1. All tests are done with Xena Networks specialized test equipment (XenaBay),and done according to RFC2544 (Xena2544)
    2. Max throughput is determined with 30+ second attempts with 0,1% packet loss tolerance in 64, 512, 1400 byte packet sizes
    3. Test results show device maximum performance, and are reached using mentioned hardware and software configuration, different configurations most likely will result in lower results

    The device has an operating system preinstalled and licensed. No separate purchase is necessary and the product is ready to use. The device includes free software updates for the life of the product or a minimum of 5 years starting from date of purchase..
