    wAP ac BE Small dual-band 2.4 / 5GHz black weatherproof wireless access point for mounting on a ceiling, wall or pole

    Discontinued


    The wAP ac is a small weatherproof wireless access point for your mobile devices, perfect for installation outside your house, in the garden, on your porch or anywhere else where you need wireless access from your phone or computer.

    The device has one Gigabit Ethernet port, it supports 802.11a/b/g/n/ac wireless protocols and can work at both the 2.4GHz and 5GHz frequencies simultaneously. It looks unobtrusive and sleek.

    The wAP ac is weatherproof and can be fixed to any external wall from the inside of the case - so that it is securely attached to it’s mounting location.

    We have two versions available.

    - RBwAPG-5HacT2HnD-BE (International) supports 2412-2484MHz and 5150MHz-5875MHz range (Specific frequency range can be limited by country regulations).

    - RBwAPG-5HacT2HnD-BE-US (USA) is factory locked for 2412-2462MHz, 5170-5250MHz and 5725-5835MHz frequencies. This lock can not be removed.

     Send purchase questions

    Specifications

    Details
    Product code RBwAPG-5HacT2HnD-BE
    Architecture MIPSBE
    CPU QCA9556
    CPU core count 1
    CPU nominal frequency 720 MHz
    Dimensions 185 x 85 x 30 mm
    RouterOS license 4
    Operating System RouterOS
    Size of RAM 64 MB
    Storage size 16 MB
    Storage type FLASH
    MTBF Approximately 100'000 hours at 25C
    Tested ambient temperature -40°C to 70°C
    Suggested price $89.00

    Wireless capabilities

    Details
    Wireless 2.4 GHz Max data rate 300 Mbit/s
    Wireless 2.4 GHz number of chains 2
    Wireless 2.4 GHz standards 802.11b/g/n
    Antenna gain dBi for 2.4 GHz 2
    Wireless 2.4 GHz chip model QCA9556
    Wireless 2.4 GHz generation Wi-Fi 4
    Wireless 5 GHz Max data rate 1300 Mbit/s
    Wireless 5 GHz number of chains 3
    Wireless 5 GHz standards 802.11a/n/ac
    Antenna gain dBi for 5 GHz 2
    Wireless 5 GHz chip model QCA9880
    Wireless 5 GHz generation Wi-Fi 5
    WiFi speed AC1600

    Ethernet

    Details
    10/100/1000 Ethernet ports 1

    Powering

    Details
    Number of DC inputs 1 (PoE-IN)
    Max power consumption 12 W
    Cooling type Passive
    PoE in 802.3af/at
    PoE in input Voltage 11-57 V

    Certification & Approvals

    Details
    Certification CE, FCC, IC, EAC, ROHS
    IP IP54

    Other

    Details
    PCB temperature monitor Yes
    Voltage Monitor Yes

    Wireless specifications

    2.4 GHzTransmit (dBm)Receive Sensitivity
    1MBit/s25-95
    11MBit/s25-90
    6MBit/s25-95
    54MBit/s23-80
    MCS025-95
    MCS722-74
    5 GHzTransmit (dBm)Receive Sensitivity
    6MBit/s25-96
    54MBit/s25-81
    MCS025-96
    MCS724-77
    MCS923-72

    Included parts

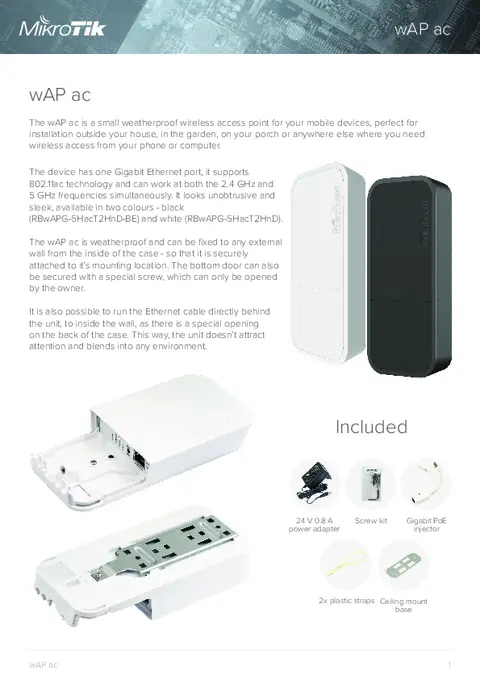

    BrochureOpen
    RouterOS current release
    Block DiagramOpen
    PoE-IN compatibility listOpen
    RouterOS software manualOpen
    Declaration of conformityOpen (CE)
    FCC Grant of Certification (2.4GHz)Open
    FCC Grant of Certification (5GHz)Open

    High resolution images

    #
    #

    Ethernet test results

    RBwAPG-5HacT2HnD-BEQCA9556 1G one port test
    ModeConfiguration1518 byte512 byte64 byte
    kppsMbpskppsMbpskppsMbps
    Bridgingnone (fast path)81.2986.1233.1954.8576.7295.3
    Bridging25 bridge filter rules81.2986.1123.7506.7117.860.3
    Routingnone (fast path)81.2986.1233.1954.8454.8232.9
    Routing25 simple queues81.2986.1152.6625.0137.270.2
    Routing25 ip filter rules69.4842.866.3271.668.735.2
    1. All tests are done with Xena Networks specialized test equipment (XenaBay),and done according to RFC2544 (Xena2544)
    2. Max throughput is determined with 30+ second attempts with 0,1% packet loss tolerance in 64, 512, 1518 byte packet sizes
    3. Test results show device maximum performance, and are reached using mentioned hardware and software configuration, different configurations most likely will result in lower results

    The device has an operating system preinstalled and licensed. No separate purchase is necessary and the product is ready to use. The device includes free software updates for the life of the product or a minimum of 5 years starting from date of purchase..
