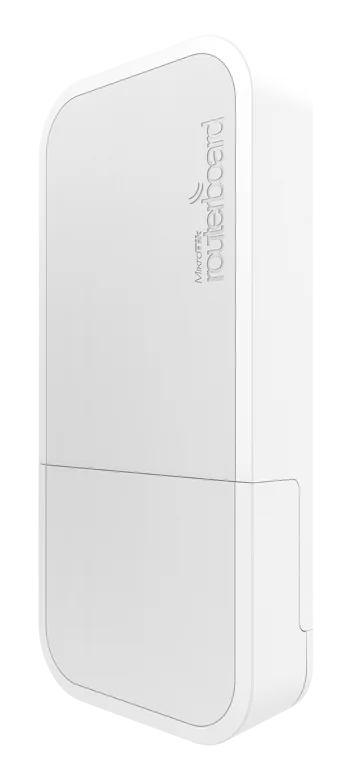

wAP ac

The wAP ac is a small weatherproof wireless access point for your mobile devices, perfect for installation outside your house, in the garden, on your porch or anywhere else where you need wireless access from your phone or computer.

The device has one Gigabit Ethernet port, it supports 802.11ac technology and can work at both the 2.4GHz and 5GHz frequencies simultaneously. It looks unobtrusive and sleek.

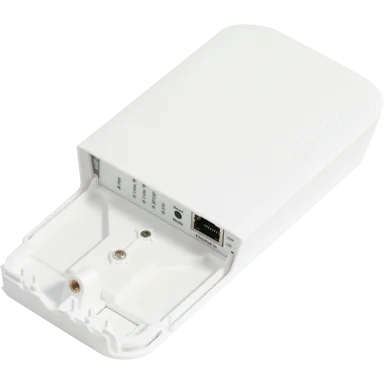

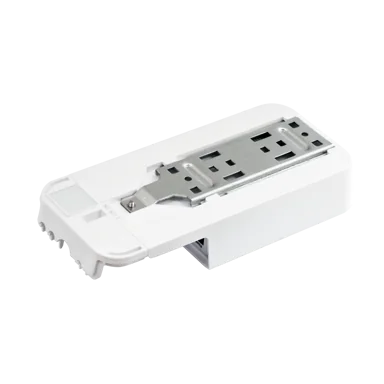

The wAP ac is weatherproof and can be fixed to any external wall from the inside of the case - so that it is securely attached to it’s mounting location. The bottom door can also be secured with a special screw, which can only be opened by the owner.

We have two versions available.

- RBwAPG-5HacT2HnD (International) supports 2412-2484MHz and 5150MHz-5875MHz range (Specific frequency range can be limited by country regulations).

- RBwAPG-5HacT2HnD-US (USA) is factory locked for 2412-2462MHz, 5170-5250MHz and 5725-5835MHz frequencies. This lock can not be removed.

Specifications

Details
Product code	RBwAPG-5HacT2HnD
Architecture	MIPSBE
CPU	QCA9556
CPU core count	1
CPU nominal frequency	720 MHz
Dimensions	185 x 85 x 30 mm
License level	4
Operating System	RouterOS
Size of RAM	64 MB
Storage size	16 MB
Storage type	FLASH
Tested ambient temperature	-40 to +50C
Suggested price	$89.00

Powering

Details
Max Power consumption	12W
PoE in	802.3af/at
PoE in input Voltage	11-57 V
Number of DC inputs	1 (PoE-IN)

Wireless

Details
Wireless 2.4 GHz number of chains	2
Wireless 2.4 GHz standards	802.11b/g/n
Antenna gain dBi for 2.4 GHz	2
Wireless 2.4 GHz chip model	QCA9556
Wireless 5 GHz number of chains	3
Wireless 5 GHz standards	802.11ac
Antenna gain dBi for 5 GHz	2
Wireless 5 GHz chip model	QCA9880

Ethernet

Details
10/100/1000 Ethernet ports	1

Other

Details
PCB temperature monitor	Yes
Voltage Monitor	Yes

Wireless specifications

2.4 GHz	Transmit (dBm)	Receive Sensitivity
1MBit/s	25	-95
11MBit/s	25	-90
6MBit/s	25	-95
54MBit/s	23	-80
MCS0	25	-95
MCS7	22	-74

5 GHz	Transmit (dBm)	Receive Sensitivity
6MBit/s	25	-96
54MBit/s	25	-81
MCS0	25	-96
MCS7	24	-77
MCS9	23	-72

More info

Ethernet test results

RBwAPG-5HacT2HnD		QCA9556 1G one port test
Mode	Configuration	1518 byte		512 byte		64 byte
Mode	Configuration	kpps	Mbps	kpps	Mbps	kpps	Mbps
Bridging	none (fast path)	81.2	986.1	233.1	954.8	576.7	295.3
Bridging	25 bridge filter rules	81.2	986.1	123.7	506.7	117.8	60.3
Routing	none (fast path)	81.2	986.1	233.1	954.8	454.8	232.9
Routing	25 simple queues	81.2	986.1	152.6	625.0	137.2	70.2
Routing	25 ip filter rules	69.4	842.8	66.3	271.6	68.7	35.2

All tests are done with Xena Networks specialized test equipment (XenaBay),and done according to RFC2544 (Xena2544)
Max throughput is determined with 30+ second attempts with 0,1% packet loss tolerance in 64, 512, 1518 byte packet sizes
Values in Italic indicate that max throughput was reached without maxing out CPU, but because board interface configuration was maxed out
Test results show device maximum performance, and are reached using mentioned hardware and software configuration, different configurations most likely will result in lower results

Included parts

Download: Full CE declaration (PDF)

Information about wAP ac
