    cAP

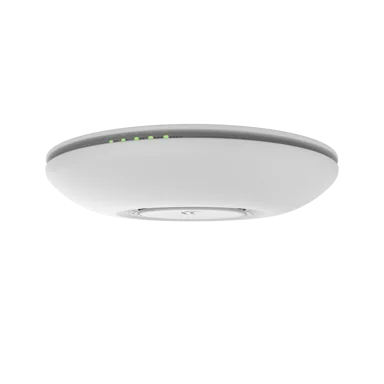

    RouterBOARD cAP-2nD (ceiling Access Point) is our first 2.4GHz Dual-Chain ceiling AP. Inconspicuously designed, it blends into the environment, perfect for hospitality business like hotels, airports, shopping malls etc.

    cAP-2nD supports 802.11b/g/n and can be powered by PoE. It’s a perfect companion for the MikroTik CAPsMAN (controlled AP system manager), allowing you to control all your AP devices from one central location.

    Unlike traditional controller software, which requires a separate PC/Mac to run, our CAPsMAN runs on any existing RouterBOARD device in your network. No need for a separate controller machine.

    Everything is included to get you started, wall/ceiling mount, PoE injector, power adapter and even the screws and screw anchors.

    Product specifications

    Details
    Product code RBcAP2nD
    10/100 Ethernet ports 1
    Antenna gain 2
    CPU QCA9533
    CPU core count 1
    CPU nominal frequency 650 MHz
    Dimensions 185mm diameter, 31mm height
    License level 4
    Max Power consumption 4W
    Number of chains 2
    Operating System RouterOS
    PoE in 802.3af/at
    Size of RAM 64 MB
    Storage size 16 MB
    Storage type FLASH
    Tested ambient temperature -40C to +70C
    Wireless 2.4 GHz chip model QCA9533
    Wireless 2.4 GHz standards 802.11b/g/n
    Suggested price $49.95

    Wireless specifications

    2.4 GHz
    Transmit power (dBm)Receive SensitivityTransmit power (mW)
    1MBit/s22-96158
    11MBit/s22-89158
    6MBit/s20-93100
    54MBit/s18-7463
    MCS020-93100
    MCS716-7140

    More info

    Ethernet test results

    RBcAP2nDQCA9533 100M one port test
    ModeConfiguration1518 byte512 byte64 byte
    kppsMbpskppsMbpskppsMbps
    Bridgingnone (fast path)8.198.423.596.3173.688.9
    Bridging25 bridge filter rules8.198.423.596.370.936.3
    Routingnone (fast path)8.198.423.596.3160.882.3
    Routing25 simple queues8.198.423.596.390.846.5
    Routing25 ip filter rules8.198.423.596.343.222.1
    1. All tests are done with Xena Networks specialized test equipment (XenaBay),and done according to RFC2544 (Xena2544)
    2. Max throughput is determined with 30+ second attempts with 0,1% packet loss tolerance in 64, 512, 1518 byte packet sizes
    3. Values in Italic indicate that max throughput was reached without maxing out CPU, but because board interface configuration was maxed out
    4. Test results show device maximum performance, and are reached using mentioned hardware and software configuration, different configurations most likely will result in lower results

    Download: Full CE declaration (PDF)

    Information about cAP

    [BG] Bulgarian С настоящето, "Mikrotikls SIA", декларира, че cAP е в съответствие със съществените изисквания и другитеприложими разпоредби на Директива 2014/53/EC.
    [CZ] Czech "Mikrotikls SIA" tímto prohlašuje, že cAP splňuje základní požadavky a všechna příslušná ustanoveni Směrnice 2014/53/ES.
    [DK] Danish Undertegnede "Mikrotikls SIA" erklærer herved, at følgende udstyr cAP overholder de væsentlige krav og øvrige relevante krav i direktiv 2014/53/EF.
    [DE] German Hiermit erklärt "Mikrotikls SIA", dass sich das Gerät cAP in Übereinstimmung mit den grundlegenden Anforderungen und den übrigen einschlägigen Bestimmungen der Richtlinie 2014/53/EG befindet.
    [EE] Estonian Käesolevaga kinnitab "Mikrotikls SIA" seadme cAP vastavust direktiivi 2014/53/EÜ põhinõuetele ja nimetatud direktiivist tulenevatele teistele asjakohastele sätetele.
    [GR] Greek ΜΕ ΤΗΝ ΠΑΡΟΥΣΑ Ο ΚΑΤΑΣΚΕΥΑΣΤΗΣ "Mikrotikls SIA" ΔΗΛΩΝΕΙ ΟΤΙ cAP ΣΥΜΜΟΡΦΩΝΕΤΑΙ ΠΡΟΣ ΤΙΣ ΟΥΣΙΩΔΕΙΣ ΑΠΑΙΤΗΣΕΙΣ ΚΑΙ ΤΙΣ ΛΟΙΠΕΣ ΣΧΕΤΙΚΕΣ ΔΙΑΤΑΞΕΙΣ ΤΗΣ ΟΔΗΓΙΑΣ 2014/53/ΕΚ
    [EN] English Hereby, "Mikrotikls SIA", declares that this cAP is in compliance with the essential requirements and other relevant provisions of Directive 2014/53/EC.
    [ES] Spanish Por la presente, "Mikrotikls SIA", declara que este cAP cumple con los requisitos esenciales y otras exigencias relevantes de la Directiva 2014/53/EC.
    [IT] Italian Con la presente "Mikrotikls SIA" dichiara che questo cAP è conforme ai requisiti essenziali ed alle altre disposizioni pertinenti stabilite dalla direttiva 2014/53/CE.
    [LV] Latvian Ar šo "Mikrotikls SIA" deklarē, ka cAP atbilst Direktīvas 2014/53/EK būtiskajām prasībām un citiem ar to saistītajiem noteikumiem.
    [LT] Lithuanian Šiuo "Mikrotikls SIA" deklaruoja, kad šis cAP atitinka esminius reikalavimus ir kitas 2014/53/EB Direktyvos nuostatas
    [HU] Hungarian A "Mikrotikls SIA" ezzennel kijelenti, hogy a cAP típusú beren-dezés teljesíti az alapvető követelményeket és más 2014/53/EK irányelvben meghatározott vonatkozó rendelkezéseket.
    [NL] Dutch Hierbij verklaart "Mikrotikls SIA" dat het toestel l cAP in overeenstemming is met de essentiële eisen en de andere relevante bepalin-gen van richtlijn 2014/53/EG.
    [PL] Polish Niniejszym "Mikrotikls SIA" deklaruje że cAP jest zgodny z zasadniczymi wymaganiami i innymi właściwymi postanowieniami Dyrektywy 2014/53/EC.
    [PT] Portuguese Eu, "Mikrotikls SIA", declaro que o cAP cumpre os requisitos essenciais e outras provisões relevantes da Directiva 2014/53/EC.
    [RO] Romanian Prin prezenta, "Mikrotikls SIA", declară că aparatul cAP este în conformitate cu cerinţele esenţiale şi cu alte prevederi pertinente ale Directivei 2014/53/CE..
    [SK] Slovak "Mikrotikls SIA" týmto vyhlasuje, že cAP spĺňa základné požiadavky a všetky príslušné ustanovenia Smernice 2014/53/ES.
    [SI] Slovenian "Mikrotikls SIA" izjavlja, da je ta cAP v skladu z bistvenimi zahtevami in drugimi relevantnimi določili direktive 2014/53/ES.
    [FI] Finish "Mikrotikls SIA" vakuuttaa täten että cAP tyyppinen laite on direktiivin 2014/53/EY oleellisten vaatimusten ja sitä koskevien direktiivin muiden ehtojen mukainen.
    [SE] Swedish Denna utrustning är i överensstämmelse med de väsentliga kraven och andra relevanta bestämmelser i direktiv 2014/53/EC.
    [NO] Norwegian "Mikrotikls SIA", Erklærer herved at cAP er i samsvar med de grunnleggende krav og øvrige relevante krav i direktiv 2014/53/EF.
    ×
