SXT 5 ac

802.11ac up to 540Mbit, high output, low latency Point to Point

Outdoors

PoE

Specification Find retailer

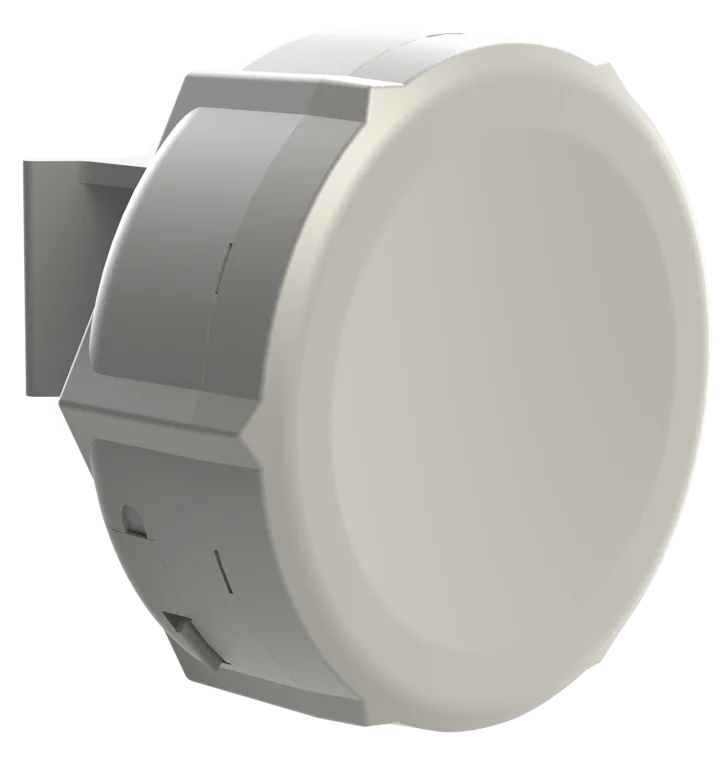

SXT 5 ac

The SXT ac is a new member in our 802.11ac product lineup, currently two models are available — with regular 28 degree antenna, and the SA model with a 90 wide beam- width sector antenna. Also supports 802.11a/n mode and is compatible with all legacy RouterBOARD devices, including Nstream and Nv2 protocols. Both devices come with Gigabit Ethernet.

New products are backwards compatible- for example, you can replace your 5GHz 802.11an legacy Access Point with new 802.11ac product and your existing customers will still be able to connect to it.

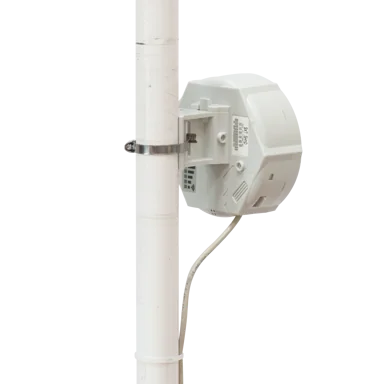

SXT install guide:

- RBSXTG-5HPacD-US (USA) is factory locked for 5170-5250MHz and 5725-5835MHz frequencies. This lock can not be removed.

- RBSXTG-5HPacD (International) supports 5150MHz-5875MHz range (Specific frequency range can be limited by country regulations).

Specification

Specifications

Product code RBSXTG-5HPacD
Suggested price $109.00
Architecture MIPSBE
CPU QCA9557
CPU core count 1
CPU nominal frequency 720 MHz
RouterOS license 4
Operating System RouterOS
Size of RAM 128 MB
Storage size 128 MB
Storage type NAND
MTBF Approximately 200'000 hours at 25C
Tested ambient temperature -40°C to 70°C

Powering

Number of DC inputs 1 (PoE-IN)
Max power consumption 12 W
PoE in 802.3af/at
Cooling type Passive
PoE in input Voltage 15-60 V

Wireless specifications

Wireless 5 GHz Max data rate 867 Mbit/s
Wireless 5 GHz Number of chains 2
Wireless 5 GHz standards 802.11a/n/ac
Antenna gain dBi for 5 GHz 16
Wireless 5 GHz chip model QCA9892
Wireless 5 GHz generation Wi-Fi 5
Wireless secondary chip model QCA9557

Ethernet

10/100/1000 Ethernet ports 1

Peripherals

Number of USB ports 1
USB Power Reset Yes
USB slot type USB type A
Max USB current (A) 1

Other

PCB temperature monitor Yes
Voltage Monitor Yes
Beeper Yes

Certification & Approvals

Certification FCC

Included parts

Note

The device has an operating system preinstalled and licensed. No separate purchase is necessary and the product is ready to use. The device includes free software updates for the life of the product or a minimum of 5 years starting from date of purchase.

5 GHz

Transmit (dBm)

Receive Sensitivity

6MBit/s

-96

54MBit/s

-81

MCS0

-96

MCS7

-77

MCS9

-72

RBSXTG-5HPacDr2		QCA9557 1G all port test
Mode	Configuration	1518 byte		512 byte		64 byte
Mode	Configuration	kpps	Mbps	kpps	Mbps	kpps	Mbps
Bridging	none (fast path)	81.2	986.1	234.9	962.2	477.7	244.6
Bridging	25 bridge filter rules	81.2	986.1	118.4	485.0	119.5	61.2
Routing	none (fast path)	81.2	986.1	234.9	962.2	408.2	209.0
Routing	25 simple queues	81.2	986.1	158.3	648.4	165.8	84.9
Routing	25 ip filter rules	64.8	786.9	70.4	288.4	60.9	31.2

All tests are done with Xena Networks specialized test equipment (XenaBay),and done according to RFC2544 (Xena2544)
Max throughput is determined with 30+ second attempts with 0,1% packet loss tolerance in 64, 512, 1518 byte packet sizes
Test results show device maximum performance, and are reached using mentioned hardware and software configuration, different configurations most likely will result in lower results
