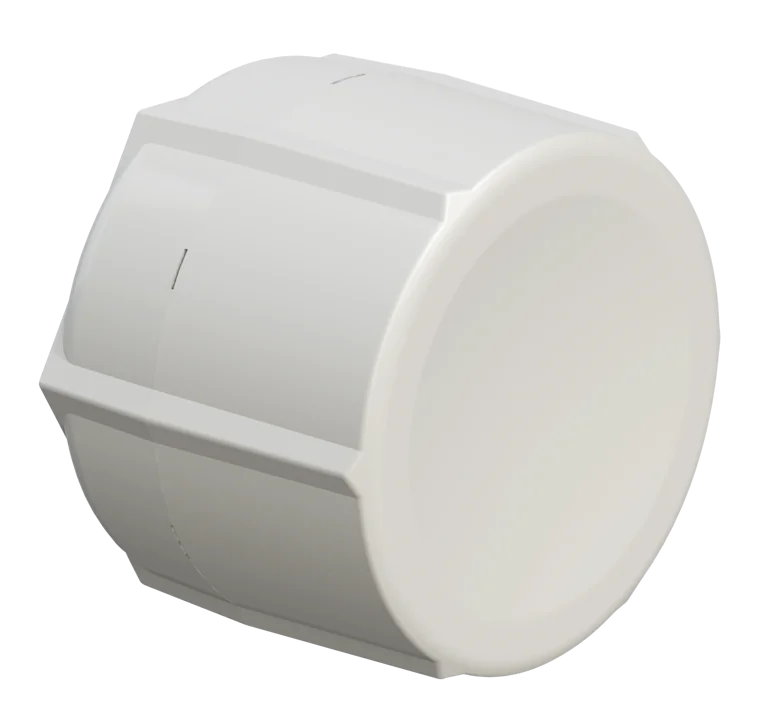

    SXT HG5 ac

    The new High Gain version of our popular SXT G 802.11a/n/ac model, equipped with an improved 5GHz 17dBi 24 degree antenna, Gigabit Ethernet port and RouterOS L4 license.

    Like all our SXT units, this is a neat and compact outdoor device that comes with all necessary accessories included. Use it as a wireless AP, for point to point, or as a CPE unit. 802.11ac technology provides data rates up to 866Mbit, but is also backwards compatible with 802.11a/n.

    The SXT HG supports 10-57V 802.3af/at and passive PoE power input.

    - RBSXTG-5HPacD-HG-US (USA) is factory locked for 5170-5250MHz and 5725-5835MHz frequencies. This lock can not be removed.

    - RBSXTG-5HPacD-HG (International) supports 5150MHz-5875MHz range (Specific frequency range can be limited by country regulations).

    General

    Details
    Product code RBSXTG-5HPacD-HGr2
    CPU QCA9557
    CPU core count 1
    CPU nominal frequency 720 MHz
    Dimensions 140x140x105mm. Weight without packaging, adapters and cables: 265g
    License level 4
    Operating System RouterOS
    Size of RAM 128 MB
    Storage size 128 MB
    Storage type NAND
    Tested ambient temperature -40 C .. +70 °C
    Suggested price $119.00

    Powering

    Details
    Max Power consumption 12W
    Number of DC inputs 1 (PoE-IN)
    PoE in 802.3af/at
    PoE in input Voltage 12-57 V

    Wireless

    Details
    Wireless 5 GHz number of chains 2
    Wireless 5 GHz standards 802.11ac
    Antenna gain dBi for 5 GHz 17
    Wireless 5 GHz chip model QCA9892

    Ethernet

    Details
    10/100/1000 Ethernet ports 1

    Peripherals

    Details
    Number of USB ports 1
    USB Power Reset Yes
    USB slot type USB type A

    Other

    Details
    PCB temperature monitor Yes
    Voltage Monitor Yes

    Wireless specifications

    5 GHz
    Transmit (dBm)Receive Sensitivity
    6MBit/s31-96
    54MBit/s28-81
    MCS030-96
    MCS727-77
    MCS922-72

    More info

    Ethernet test results

    RBSXTG-5HPacD-HGr2QCA9557 1G all port test
    ModeConfiguration1518 byte512 byte64 byte
    kppsMbpskppsMbpskppsMbps
    Bridgingnone (fast path)81.2986.1234.9962.2477.7244.6
    Bridging25 bridge filter rules81.2986.1118.4485.0119.561.2
    Routingnone (fast path)81.2986.1234.9962.2408.2209.0
    Routing25 simple queues81.2986.1158.3648.4165.884.9
    Routing25 ip filter rules64.8786.970.4288.460.931.2
    1. All tests are done with Xena Networks specialized test equipment (XenaBay),and done according to RFC2544 (Xena2544)
    2. Max throughput is determined with 30+ second attempts with 0,1% packet loss tolerance in 64, 512, 1518 byte packet sizes
    3. Values in Italic indicate that max throughput was reached without maxing out CPU, but because board interface configuration was maxed out
    4. Test results show device maximum performance, and are reached using mentioned hardware and software configuration, different configurations most likely will result in lower results

    Download: Full CE declaration (PDF)

    Information about SXT HG5 ac

    [BG] Bulgarian С настоящето, "Mikrotikls SIA", декларира, че SXT HG5 ac е в съответствие със съществените изисквания и другитеприложими разпоредби на Директива 2014/53/EC.
    [CZ] Czech "Mikrotikls SIA" tímto prohlašuje, že SXT HG5 ac splňuje základní požadavky a všechna příslušná ustanoveni Směrnice 2014/53/ES.
    [DK] Danish Undertegnede "Mikrotikls SIA" erklærer herved, at følgende udstyr SXT HG5 ac overholder de væsentlige krav og øvrige relevante krav i direktiv 2014/53/EF.
    [DE] German Hiermit erklärt "Mikrotikls SIA", dass sich das Gerät SXT HG5 ac in Übereinstimmung mit den grundlegenden Anforderungen und den übrigen einschlägigen Bestimmungen der Richtlinie 2014/53/EG befindet.
    [EE] Estonian Käesolevaga kinnitab "Mikrotikls SIA" seadme SXT HG5 ac vastavust direktiivi 2014/53/EÜ põhinõuetele ja nimetatud direktiivist tulenevatele teistele asjakohastele sätetele.
    [GR] Greek ΜΕ ΤΗΝ ΠΑΡΟΥΣΑ Ο ΚΑΤΑΣΚΕΥΑΣΤΗΣ "Mikrotikls SIA" ΔΗΛΩΝΕΙ ΟΤΙ SXT HG5 ac ΣΥΜΜΟΡΦΩΝΕΤΑΙ ΠΡΟΣ ΤΙΣ ΟΥΣΙΩΔΕΙΣ ΑΠΑΙΤΗΣΕΙΣ ΚΑΙ ΤΙΣ ΛΟΙΠΕΣ ΣΧΕΤΙΚΕΣ ΔΙΑΤΑΞΕΙΣ ΤΗΣ ΟΔΗΓΙΑΣ 2014/53/ΕΚ
    [EN] English Hereby, "Mikrotikls SIA", declares that this SXT HG5 ac is in compliance with the essential requirements and other relevant provisions of Directive 2014/53/EC.
    [ES] Spanish Por la presente, "Mikrotikls SIA", declara que este SXT HG5 ac cumple con los requisitos esenciales y otras exigencias relevantes de la Directiva 2014/53/EC.
    [IT] Italian Con la presente "Mikrotikls SIA" dichiara che questo SXT HG5 ac è conforme ai requisiti essenziali ed alle altre disposizioni pertinenti stabilite dalla direttiva 2014/53/CE.
    [LV] Latvian Ar šo "Mikrotikls SIA" deklarē, ka SXT HG5 ac atbilst Direktīvas 2014/53/EK būtiskajām prasībām un citiem ar to saistītajiem noteikumiem.
    [LT] Lithuanian Šiuo "Mikrotikls SIA" deklaruoja, kad šis SXT HG5 ac atitinka esminius reikalavimus ir kitas 2014/53/EB Direktyvos nuostatas
    [HU] Hungarian A "Mikrotikls SIA" ezzennel kijelenti, hogy a SXT HG5 ac típusú beren-dezés teljesíti az alapvető követelményeket és más 2014/53/EK irányelvben meghatározott vonatkozó rendelkezéseket.
    [NL] Dutch Hierbij verklaart "Mikrotikls SIA" dat het toestel l SXT HG5 ac in overeenstemming is met de essentiële eisen en de andere relevante bepalin-gen van richtlijn 2014/53/EG.
    [PL] Polish Niniejszym "Mikrotikls SIA" deklaruje że SXT HG5 ac jest zgodny z zasadniczymi wymaganiami i innymi właściwymi postanowieniami Dyrektywy 2014/53/EC.
    [PT] Portuguese Eu, "Mikrotikls SIA", declaro que o SXT HG5 ac cumpre os requisitos essenciais e outras provisões relevantes da Directiva 2014/53/EC.
    [RO] Romanian Prin prezenta, "Mikrotikls SIA", declară că aparatul SXT HG5 ac este în conformitate cu cerinţele esenţiale şi cu alte prevederi pertinente ale Directivei 2014/53/CE..
    [SK] Slovak "Mikrotikls SIA" týmto vyhlasuje, že SXT HG5 ac spĺňa základné požiadavky a všetky príslušné ustanovenia Smernice 2014/53/ES.
    [SI] Slovenian "Mikrotikls SIA" izjavlja, da je ta SXT HG5 ac v skladu z bistvenimi zahtevami in drugimi relevantnimi določili direktive 2014/53/ES.
    [FI] Finish "Mikrotikls SIA" vakuuttaa täten että SXT HG5 ac tyyppinen laite on direktiivin 2014/53/EY oleellisten vaatimusten ja sitä koskevien direktiivin muiden ehtojen mukainen.
    [SE] Swedish Denna utrustning är i överensstämmelse med de väsentliga kraven och andra relevanta bestämmelser i direktiv 2014/53/EC.
    [NO] Norwegian "Mikrotikls SIA", Erklærer herved at SXT HG5 ac er i samsvar med de grunnleggende krav og øvrige relevante krav i direktiv 2014/53/EF.
    ×
