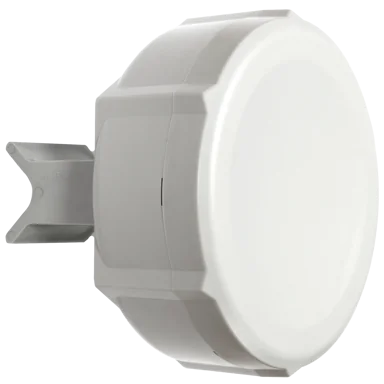

SXT 2

10dbi 60 degree integrated AP/Backbone/CPE, dual chain, Gigabit Ethernet

IP 54

Outdoors

PoE

Specification Find retailer

SXT 2

We are glad to introduce our first complete AP/CPE for 2.4GHz - SXTG2HnD! It's powerful 60 degrees 2x2 MIMO 10dbi sector antenna with wireless on-board- you can use it as a Sector AP, to make wireless point-to-point links or as a CPE- whatever you prefer! It comes with L4 license, perfect for covering outdoor area for hotspot clients.

Unit is equipped with Gigabit Ethernet port, so customers can take full advantage of dual chain MIMO. It has the same form factor as our popular 5Ghz SXT model.

Package contains SXTG-2HnD, mounting loops, PoE injector, power adapter

SXT install guide:

Specification

Specifications

Product code RBSXTG-2HnD
Suggested price $79.00
Architecture MIPSBE
CPU AR9344
CPU core count 1
CPU nominal frequency 600 MHz
Dimensions 140x140x56mm
RouterOS license 4
Operating System RouterOS
Size of RAM 64 MB
Storage size 16 MB
Storage type FLASH
MTBF Approximately 100'000 hours at 25C
Tested ambient temperature -40°C to 70°C

Powering

Number of DC inputs 1 (PoE-IN)
Max power consumption 11 W
PoE in Passive PoE
Cooling type Passive
PoE in input Voltage 8-30 V

Wireless specifications

Wireless 2.4 GHz Max data rate 300 Mbit/s
Wireless 2.4 GHz Number of chains 2
Wireless 2.4 GHz standards 802.11b/g/n
Antenna gain dBi for 2.4 GHz 10
Wireless 2.4 GHz chip model AR9344
Wireless 2.4 GHz generation Wi-Fi 4

Ethernet

10/100/1000 Ethernet ports 1

Other

PCB temperature monitor Yes
Voltage Monitor Yes
Beeper Yes

Certification & Approvals

Certification CE, FCC, EAC, ROHS
IP IP54

Included parts

Note

The device has an operating system preinstalled and licensed. No separate purchase is necessary and the product is ready to use. The device includes free software updates for the life of the product or a minimum of 5 years starting from date of purchase.

2.4 GHz

Transmit (dBm)

Receive Sensitivity

1MBit/s

-96

11MBit/s

-90

6MBit/s

-96

54MBit/s

-80

MCS0

-96

MCS7

-74

RBSXTG-2HnDr2		AR9344 1G 1 port test
Mode	Configuration	1518 byte		512 byte		64 byte
Mode	Configuration	kpps	Mbps	kpps	Mbps	kpps	Mbps
Bridging	none (fast path)	81.0	983.7	232.0	950.3	269.6	138.0
Bridging	25 bridge filter rules	81.0	983.7	86.0	352.3	87.6	44.9
Routing	none (fast path)	81.0	983.7	210.0	860.2	226.9	116.2
Routing	25 simple queues	81.0	983.7	103.9	425.6	106.6	54.6
Routing	25 ip filter rules	56.8	689.8	59.6	244.1	60.5	31.0

All tests are done with Xena Networks specialized test equipment (XenaBay),and done according to RFC2544 (Xena2544)
Max throughput is determined with 30+ second attempts with 0,1% packet loss tolerance in 64, 512, 1518 byte packet sizes
Test results show device maximum performance, and are reached using mentioned hardware and software configuration, different configurations most likely will result in lower results
