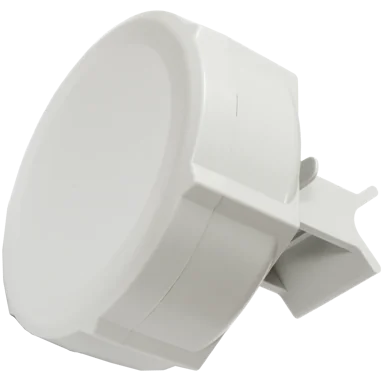

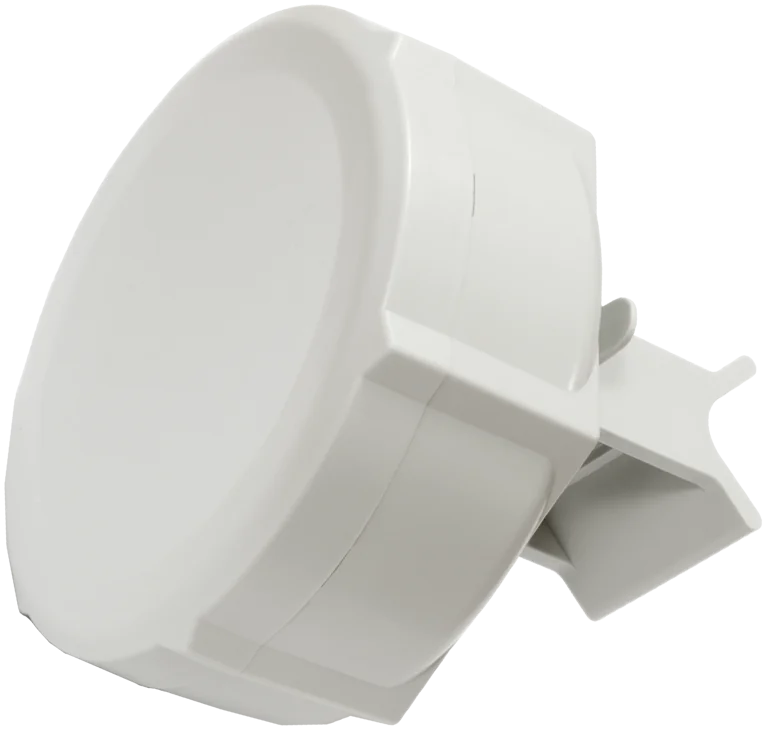

MikroTik Routers and Wireless - Products: SXT Lite5 ac

Discontinued

The SXT Lite5 ac is a new low cost device in our 802.11ac product lineup.

Unit is equipped with powerful 650MHz CPU, 64MB RAM, 10/100Mbps Ethernet port and has 5GHz 16dBi 28 degree beamwidth antenna.

The SXT Lite5 ac supports 256-QAM modulation and 80MHz channels, so you get more speed per same frequency width as 802.11 devices. It also supports 802.11a/n, Nv2, Nstreme mode and is compatible with all legacy RouterBOARD devices. New industrial wireless chip QCA-9892 provides support for 5/10 MHz channel width for 802.11an standard.

Send purchase questions

Specifications

Details
Product code	RBSXT5HacD2n
Architecture	MIPSBE
CPU	QCA9531
CPU core count	1
CPU nominal frequency	650 MHz
Dimensions	140x140x56mm
RouterOS license	3
Operating System	RouterOS
Size of RAM	64 MB
Storage size	16 MB
Storage type	FLASH
MTBF	Approximately 100'000 hours at 25C
Tested ambient temperature	-40°C to 70°C
Suggested price	$65.00

Powering

Details
Number of DC inputs	1 (PoE-IN)
Max power consumption	8 W
Max power consumption without attachments	8W
Cooling type	Passive
PoE in	Passive PoE
PoE in input Voltage	8-30 V

Wireless specifications

Details
Wireless 2.4 GHz Max data rate	150 Mbit/s
Wireless 2.4 GHz number of chains	1
Wireless 2.4 GHz standards	802.11b/g/n
Antenna gain dBi for 2.4 GHz	1.5
Wireless 2.4 GHz chip model	QCA9531
Wireless 2.4 GHz generation	Wi-Fi 4
Wireless 5 GHz Max data rate	867 Mbit/s
Wireless 5 GHz number of chains	2
Wireless 5 GHz standards	802.11a/n/ac
Antenna gain dBi for 5 GHz	16
Wireless 5 GHz chip model	QCA9892
Wireless 5 GHz generation	Wi-Fi 5

Ethernet

Details
10/100 Ethernet ports	1

Certification & Approvals

Details
Certification	FCC

Wireless specifications

2.4 GHz	Transmit (dBm)	Receive Sensitivity
1MBit/s	17	-93
11MBit/s	17	-86
6MBit/s	17	-90
54MBit/s	15	-71
MCS0	17	-90
MCS7	13	-68

5 GHz	Transmit (dBm)	Receive Sensitivity
6MBit/s	29	-96
54MBit/s	26	-81
MCS0	29	-96
MCS7	25	-77
MCS9	22	-72

Included parts

BrochureOpen

Quick GuideOpen

RouterOS current release

Download

RouterBoot firmware Download

Block DiagramOpen

RouterOS software manualOpen

Declaration of conformityOpen (CE)

FCC Grant of Certification (2.4GHz)Open

FCC Grant of Certification (5GHz)Open

High resolution images

Ethernet test results

RBSXT5HacD2nr2		QCA9531 100M one port test
Mode	Configuration	1518 byte		512 byte		64 byte
Mode	Configuration	kpps	Mbps	kpps	Mbps	kpps	Mbps
Bridging	none (fast path)	8.1	98.4	23.5	96.3	173.6	88.9
Bridging	25 bridge filter rules	8.1	98.4	23.5	96.3	70.9	36.3
Routing	none (fast path)	8.1	98.4	23.5	96.3	160.8	82.3
Routing	25 simple queues	8.1	98.4	23.5	96.3	90.8	46.5
Routing	25 ip filter rules	8.1	98.4	23.5	96.3	43.2	22.1

All tests are done with Xena Networks specialized test equipment (XenaBay),and done according to RFC2544 (Xena2544)
Max throughput is determined with 30+ second attempts with 0,1% packet loss tolerance in 64, 512, 1518 byte packet sizes
Test results show device maximum performance, and are reached using mentioned hardware and software configuration, different configurations most likely will result in lower results

The device has an operating system preinstalled and licensed. No separate purchase is necessary and the product is ready to use. The device includes free software updates for the life of the product or a minimum of 5 years starting from date of purchase..
