SXT 5

16dBi integrated CPE/Backbone, high power

Outdoors

PoE

Specification Find retailer

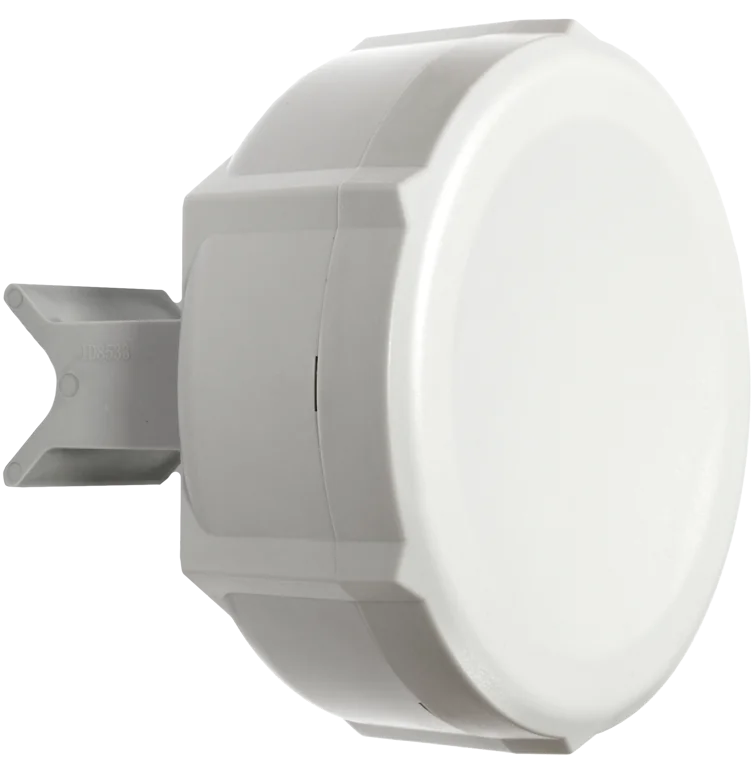

SXT 5

SXT 5 is a low cost, high transmit power 5GHz outdoor wireless device. SXT 5 can be used for point to point links or as a CPE for point to multipoint installations.

Complete with a ready to mount enclosure and built-in 16dBi antenna, the package contains everything you need to make a point to point link, or connect to an AP.

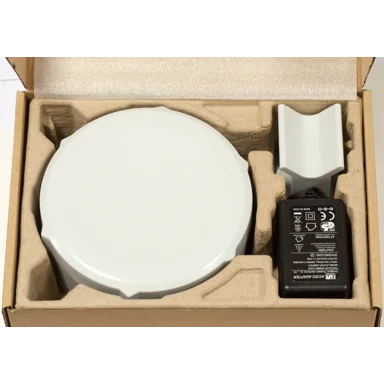

Box contains: one SXT 5, PoE injector, 24V power adapter, mounting bracket, metallic mounting loop.

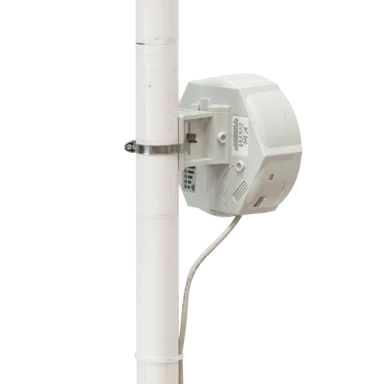

SXT install guide:

- RBSXT-5HPnDr2-US (USA) is factory locked for 5170-5250MHz and 5725-5835MHz frequencies. This lock can not be removed.

- RBSXT-5HPnDr2 (International) supports 5150MHz-5875MHz range (Specific frequency range can be limited by country regulations).

Specification

Specifications

Product code RBSXT5HPnDr2
Suggested price $89.00
Architecture MIPSBE
CPU AR9344
CPU core count 1
CPU nominal frequency 600 MHz
Dimensions 140x140x56mm, 265g
RouterOS license 3
Operating System RouterOS
Size of RAM 64 MB
Storage size 64 MB
Storage type NAND
MTBF Approximately 100'000 hours at 25C
Tested ambient temperature -40°C to 70°C

Powering

Number of DC inputs 1 (PoE-IN)
Max power consumption 11 W
Max power consumption without attachments 11W
PoE in Passive PoE
Cooling type Passive
PoE in input Voltage 5-30 V

Wireless specifications

Wireless 5 GHz Max data rate 300 Mbit/s
Wireless 5 GHz Number of chains 2
Wireless 5 GHz standards 802.11a/n
Antenna gain dBi for 5 GHz 16
Wireless 5 GHz chip model AR9344
Wireless 5 GHz generation Wi-Fi 4

Ethernet

10/100 Ethernet ports 1

Peripherals

Number of USB ports 1
USB Power Reset Yes
USB slot type USB type A
Max USB current (A) 1

Other

PCB temperature monitor Yes
Voltage Monitor Yes
Beeper Yes

Certification & Approvals

Certification FCC

Included parts

Note

The device has an operating system preinstalled and licensed. No separate purchase is necessary and the product is ready to use. The device includes free software updates for the life of the product or a minimum of 5 years starting from date of purchase.

5 GHz

Transmit (dBm)

Receive Sensitivity

6MBit/s

-96

54MBit/s

-81

MCS0

-96

MCS7

-77

RBSXT5HPnDr2		AR9344 100M 1 port test
Mode	Configuration	1518 byte		512 byte		64 byte
Mode	Configuration	kpps	Mbps	kpps	Mbps	kpps	Mbps
Bridging	none (fast path)	8.1	98.4	23.5	96.3	148.0	75.8
Bridging	25 bridge filter rules	8.1	98.4	23.5	96.3	87.6	44.9
Routing	none (fast path)	8.1	98.4	23.5	96.3	148.0	75.8
Routing	25 simple queues	8.1	98.4	23.5	96.3	106.6	54.6
Routing	25 ip filter rules	8.1	98.4	23.5	96.3	60.5	31.0

All tests are done with Xena Networks specialized test equipment (XenaBay),and done according to RFC2544 (Xena2544)
Max throughput is determined with 30+ second attempts with 0,1% packet loss tolerance in 64, 512, 1518 byte packet sizes
Test results show device maximum performance, and are reached using mentioned hardware and software configuration, different configurations most likely will result in lower results
