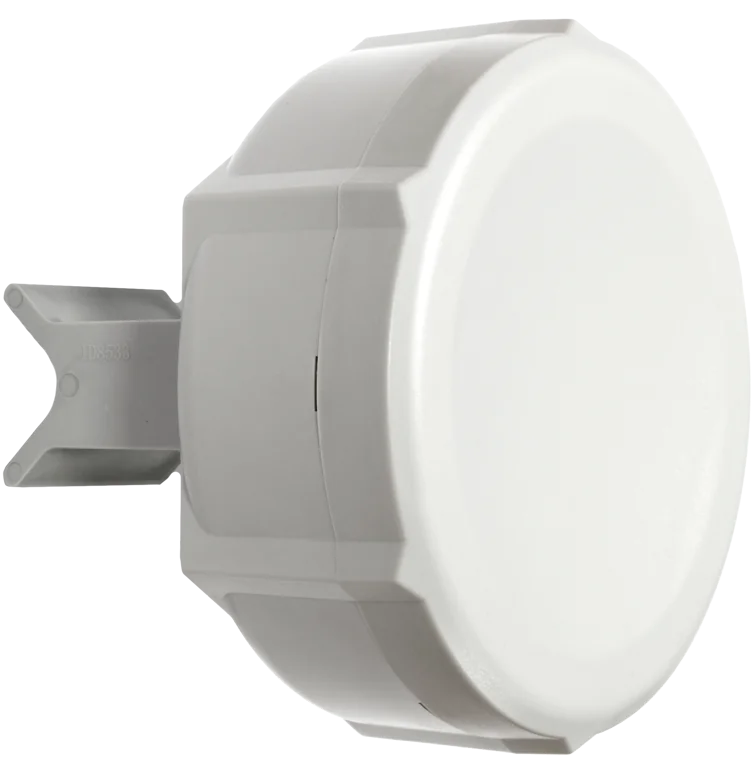

    SXT Lite2 10dbi integrated CPE/Backbone, 2GHz dual chain, 600MHz CPU

    Discontinued


    Our best price/performance 2.4GHz CPE. The SXT Lite2, 2GHz 10dBi integrated antenna with 600MHz CPU, 64MB RAM and RouterOS L3 installed.

    SXT Lite2 is a low cost, high transmit power 2.4GHz (2312 -2732MHz depending on country regulations) outdoor wireless device. It can be used for point to point links or as a CPE for point to multipoint installations.


    SXT install guide:

     Send purchase questions

    Specifications

    Details
    Product code RBSXT2nDr2
    Architecture MIPSBE
    CPU AR9344
    CPU core count 1
    CPU nominal frequency 600 MHz
    Dimensions 140x140x56mm
    RouterOS license 3
    Operating System RouterOS
    Size of RAM 64 MB
    Storage size 16 MB
    Storage type FLASH
    MTBF Approximately 100'000 hours at 25C
    Tested ambient temperature -40°C to 70°C
    Suggested price $49.00

    Powering

    Details
    Number of DC inputs 1 (PoE-IN)
    Max power consumption 6 W
    Max power consumption without attachments 6W
    Cooling type Passive
    PoE in Passive PoE
    PoE in input Voltage 8-30 V

    Wireless specifications

    Details
    Wireless 2.4 GHz Max data rate 300 Mbit/s
    Wireless 2.4 GHz number of chains 2
    Wireless 2.4 GHz standards 802.11b/g/n
    Antenna gain dBi for 2.4 GHz 10
    Wireless 2.4 GHz chip model AR9344
    Wireless 2.4 GHz generation Wi-Fi 4

    Ethernet

    Details
    10/100 Ethernet ports 1

    Other

    Details
    Beeper Yes

    Certification & Approvals

    Details
    Certification FCC

    Wireless specifications

    2.4 GHzTransmit (dBm)Receive Sensitivity
    1MBit/s27-100
    11MBit/s27-95
    6MBit/s27-96
    54MBit/s24-80
    MCS027-95
    MCS723-77

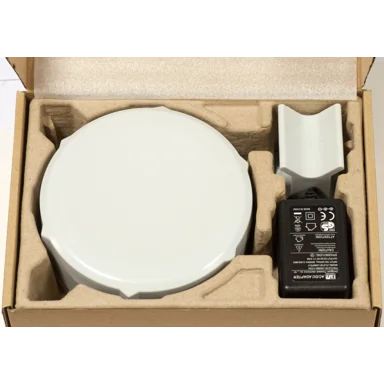

    Included parts

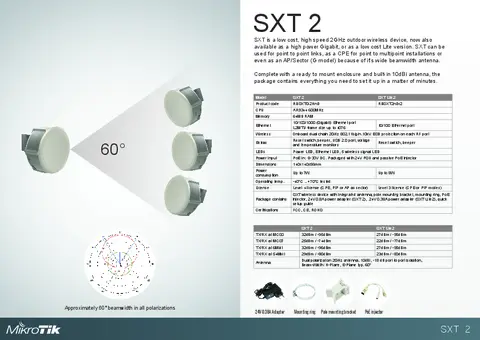

    BrochureOpen
    Quick GuideOpen
    RouterOS current release
    RouterBoot firmware Download
    Block DiagramOpen
    RouterOS software manualOpen
    Declaration of conformityOpen (CE)
    Declaration of conformityOpen (FCC)

    High resolution images

    #
    #
    #
    #

    Ethernet test results

    RBSXT2nDr3AR9344 100M 1 port test
    ModeConfiguration1518 byte512 byte64 byte
    kppsMbpskppsMbpskppsMbps
    Bridgingnone (fast path)8.198.423.596.3148.075.8
    Bridging25 bridge filter rules8.198.423.596.387.644.9
    Routingnone (fast path)8.198.423.596.3148.075.8
    Routing25 simple queues8.198.423.596.3106.654.6
    Routing25 ip filter rules8.198.423.596.360.531.0
    1. All tests are done with Xena Networks specialized test equipment (XenaBay),and done according to RFC2544 (Xena2544)
    2. Max throughput is determined with 30+ second attempts with 0,1% packet loss tolerance in 64, 512, 1518 byte packet sizes
    3. Test results show device maximum performance, and are reached using mentioned hardware and software configuration, different configurations most likely will result in lower results

    The device has an operating system preinstalled and licensed. No separate purchase is necessary and the product is ready to use. The device includes free software updates for the life of the product or a minimum of 5 years starting from date of purchase..
