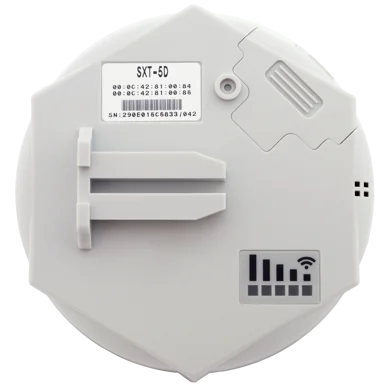

    SXT 5HnD 16dBi dual pol CPE or PtP 802.11n TDMA

    Discontinued


    Our integrated outdoor unit for Point-to-point, or as a CPE device for point-to-multipoint.

    SXT 5HnD is a low cost, high speed 5GHz wireless device. Dual polarization 802.11n and Nv2 TDMA technology help to achieve even 200Mbit real throughput speed.

    Complete with a ready to mount enclosure and built-in antenna, this is the perfect CPE.
    - FCC certified!
    - Solid all-in-one design: quick and easy to mount
    - Tower friendly one hand enclosure access
    - 5GHz 802.11a/n wireless on board
    - One 10/100 Ethernet port
    - 16dBi (+/- 2) dual chain antenna built-in
    - Signal strength LED indicators on back
    - USB 2.0 port, voltage and temperature monitors
    - Extended L2MTU support to avoid fragmentation overhead in MPLS, QinQ etc

    Box contains: one SXT unit, PoE injector, 24V power adapter, mounting bracket, metallic mounting loop.

    SXT install guide:

     Send purchase questions

    Specifications

    Details
    Product code RBSXT
    Dimensions 140x140x56mm, 265g
    Operating System RouterOS
    MTBF Approximately 100'000 hours at 25C
    Tested ambient temperature -30C to +70C
    Suggested price $89.00
    BrochureOpen
    Quick GuideOpen
    User GuideOpen
    Antenna patternsOpen
    RouterOS software manualOpen
    Declaration of conformityOpen (CE)

    High resolution images

    #
    #

    The device has an operating system preinstalled and licensed. No separate purchase is necessary and the product is ready to use. The device includes free software updates for the life of the product or a minimum of 5 years starting from date of purchase..

    Download: Full CE declaration (PDF)

    Information about SXT 5HnD

    [BG] Bulgarian С настоящето, "Mikrotikls SIA", декларира, че SXT 5HnD е в съответствие със съществените изисквания и другитеприложими разпоредби на Директива 2014/53/EC.
    [CZ] Czech "Mikrotikls SIA" tímto prohlašuje, že SXT 5HnD splňuje základní požadavky a všechna příslušná ustanoveni Směrnice 2014/53/ES.
    [DK] Danish Undertegnede "Mikrotikls SIA" erklærer herved, at følgende udstyr SXT 5HnD overholder de væsentlige krav og øvrige relevante krav i direktiv 2014/53/EF.
    [DE] German Hiermit erklärt "Mikrotikls SIA", dass sich das Gerät SXT 5HnD in Übereinstimmung mit den grundlegenden Anforderungen und den übrigen einschlägigen Bestimmungen der Richtlinie 2014/53/EG befindet.
    [EE] Estonian Käesolevaga kinnitab "Mikrotikls SIA" seadme SXT 5HnD vastavust direktiivi 2014/53/EÜ põhinõuetele ja nimetatud direktiivist tulenevatele teistele asjakohastele sätetele.
    [GR] Greek ΜΕ ΤΗΝ ΠΑΡΟΥΣΑ Ο ΚΑΤΑΣΚΕΥΑΣΤΗΣ "Mikrotikls SIA" ΔΗΛΩΝΕΙ ΟΤΙ SXT 5HnD ΣΥΜΜΟΡΦΩΝΕΤΑΙ ΠΡΟΣ ΤΙΣ ΟΥΣΙΩΔΕΙΣ ΑΠΑΙΤΗΣΕΙΣ ΚΑΙ ΤΙΣ ΛΟΙΠΕΣ ΣΧΕΤΙΚΕΣ ΔΙΑΤΑΞΕΙΣ ΤΗΣ ΟΔΗΓΙΑΣ 2014/53/ΕΚ
    [EN] English Hereby, "Mikrotikls SIA", declares that this SXT 5HnD is in compliance with the essential requirements and other relevant provisions of Directive 2014/53/EC.
    [ES] Spanish Por la presente, "Mikrotikls SIA", declara que este SXT 5HnD cumple con los requisitos esenciales y otras exigencias relevantes de la Directiva 2014/53/EC.
    [IT] Italian Con la presente "Mikrotikls SIA" dichiara che questo SXT 5HnD è conforme ai requisiti essenziali ed alle altre disposizioni pertinenti stabilite dalla direttiva 2014/53/CE.
    [LV] Latvian Ar šo "Mikrotikls SIA" deklarē, ka SXT 5HnD atbilst Direktīvas 2014/53/EK būtiskajām prasībām un citiem ar to saistītajiem noteikumiem.
    [LT] Lithuanian Šiuo "Mikrotikls SIA" deklaruoja, kad šis SXT 5HnD atitinka esminius reikalavimus ir kitas 2014/53/EB Direktyvos nuostatas
    [HU] Hungarian A "Mikrotikls SIA" ezzennel kijelenti, hogy a SXT 5HnD típusú beren-dezés teljesíti az alapvető követelményeket és más 2014/53/EK irányelvben meghatározott vonatkozó rendelkezéseket.
    [NL] Dutch Hierbij verklaart "Mikrotikls SIA" dat het toestel l SXT 5HnD in overeenstemming is met de essentiële eisen en de andere relevante bepalin-gen van richtlijn 2014/53/EG.
    [PL] Polish Niniejszym "Mikrotikls SIA" deklaruje że SXT 5HnD jest zgodny z zasadniczymi wymaganiami i innymi właściwymi postanowieniami Dyrektywy 2014/53/EC.
    [PT] Portuguese Eu, "Mikrotikls SIA", declaro que o SXT 5HnD cumpre os requisitos essenciais e outras provisões relevantes da Directiva 2014/53/EC.
    [RO] Romanian Prin prezenta, "Mikrotikls SIA", declară că aparatul SXT 5HnD este în conformitate cu cerinţele esenţiale şi cu alte prevederi pertinente ale Directivei 2014/53/CE.
    [SK] Slovak "Mikrotikls SIA" týmto vyhlasuje, že SXT 5HnD spĺňa základné požiadavky a všetky príslušné ustanovenia Smernice 2014/53/ES.
    [SI] Slovenian "Mikrotikls SIA" izjavlja, da je ta SXT 5HnD v skladu z bistvenimi zahtevami in drugimi relevantnimi določili direktive 2014/53/ES.
    [FI] Finish "Mikrotikls SIA" vakuuttaa täten että SXT 5HnD tyyppinen laite on direktiivin 2014/53/EY oleellisten vaatimusten ja sitä koskevien direktiivin muiden ehtojen mukainen.
    [SE] Swedish Denna utrustning är i överensstämmelse med de väsentliga kraven och andra relevanta bestämmelser i direktiv 2014/53/EC.
    [NO] Norwegian "Mikrotikls SIA", Erklærer herved at SXT 5HnD er i samsvar med de grunnleggende krav og øvrige relevante krav i direktiv 2014/53/EF.
    ×
