QRT 2

2.4Ghz AP/Backbone/CPE, dual-chain, Gigabit Ethernet

Outdoors

PoE

Specification Find retailer

QRT 2

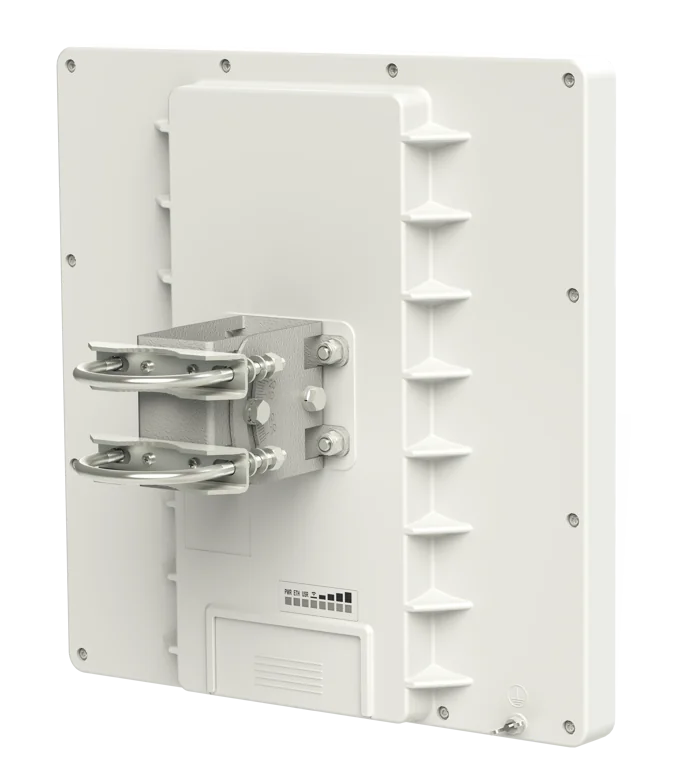

The QRT-2 is rugged outdoor flat panel antenna, with a built in RouterBOARD. The device has a 17dBi antenna and a super high power 2Ghz wireless transmitter.

Inside is a new dual chain wireless device, with high performance, high output power wireless transmitter, and a Gigabit Ethernet port, to fully utilize the benefit of 802.11n high speed wireless.

Easy to use and quick to deploy, QRT is ideal for point-to-point links.

Specification

Specifications

Product code RBQRTG-2SHPnD
Suggested price $149.00
Architecture MIPSBE
CPU AR9342
CPU core count 1
CPU nominal frequency 600 MHz
Dimensions 309x230x50mm
RouterOS license 4
Operating System RouterOS
Size of RAM 64 MB
Storage size 16 MB
Storage type FLASH
MTBF Approximately 200'000 hours at 25C
Tested ambient temperature -40°C to 70°C

Powering

Number of DC inputs 1 (PoE-IN)
Max power consumption 11 W
PoE in Passive PoE
Cooling type Passive
PoE in input Voltage 13-30 V

Wireless specifications

Wireless 2.4 GHz Max data rate 300 Mbit/s
Wireless 2.4 GHz Number of chains 2
Wireless 2.4 GHz standards 802.11b/g/n
Antenna gain dBi for 2.4 GHz 17
Wireless 2.4 GHz chip model AR9342
Wireless 2.4 GHz generation Wi-Fi 4

Ethernet

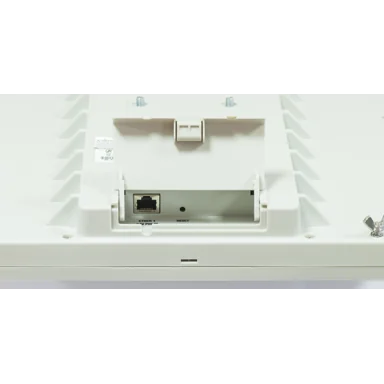

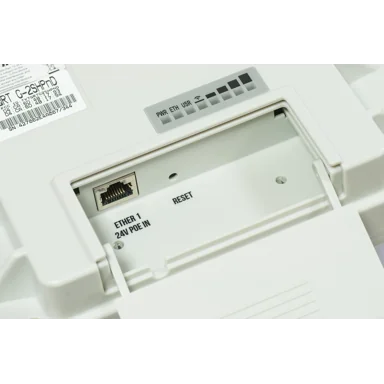

10/100/1000 Ethernet ports 1

Other

PCB temperature monitor Yes
Voltage Monitor Yes
Beeper Yes

Certification & Approvals

Certification CE, FCC, IC, EAC, ROHS

Included parts

Note

The device has an operating system preinstalled and licensed. No separate purchase is necessary and the product is ready to use. The device includes free software updates for the life of the product or a minimum of 5 years starting from date of purchase.

2.4 GHz

Transmit (dBm)

Receive Sensitivity

1MBit/s

-100

11MBit/s

-94

6MBit/s

-96

54MBit/s

-80

MCS0

-96

MCS7

-75

RBQRTG-2SHPnDr2		AR9342 1G 1 port test
Mode	Configuration	1518 byte		512 byte		64 byte
Mode	Configuration	kpps	Mbps	kpps	Mbps	kpps	Mbps
Bridging	none (fast path)	81.0	983.7	232.0	950.3	269.6	138.0
Bridging	25 bridge filter rules	81.0	983.7	86.0	352.3	87.6	44.9
Routing	none (fast path)	81.0	983.7	210.0	860.2	226.9	116.2
Routing	25 simple queues	81.0	983.7	103.9	425.6	106.6	54.6
Routing	25 ip filter rules	56.8	689.8	59.6	244.1	60.5	31.0

All tests are done with Xena Networks specialized test equipment (XenaBay),and done according to RFC2544 (Xena2544)
Max throughput is determined with 30+ second attempts with 0,1% packet loss tolerance in 64, 512, 1518 byte packet sizes
Test results show device maximum performance, and are reached using mentioned hardware and software configuration, different configurations most likely will result in lower results
