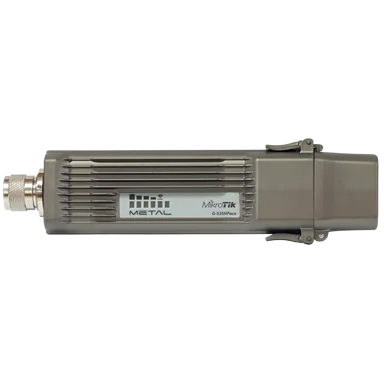

    Metal 52 ac

    Now with 802.11ac support, a Gigabit Ethernet port and a selectable wireless band (2.4GHz or 5GHz, up to 80 MHz wide channel). The new Gigabit port will help you utilize the full benefit of 802.11ac high speed wireless.

    The Metal 52 ac supports 2.4GHz, 5GHz and all the legacy wireless modes as well (802.11 b/g/n for 2.4GHz and 802.11 ac/n/a for 5GHz).

    We have two versions available.

    - RBMetalG-52SHPacn-US (USA) is factory locked for 2412-2462MHz, 5170-5250MHz and 5725-5835MHz frequencies. This lock can not be removed.

    - RBMetalG-52SHPacn (International) supports 2412-2484MHz and 5150MHz-5875MHz range (Specific frequency range can be limited by country regulations).

    General

    Details
    Product code RBMetalG-52SHPacn
    CPU QCA9556
    CPU core count 1
    CPU nominal frequency 720 MHz
    Dimensions 215x60x38mm
    License level 4
    Operating System RouterOS
    Size of RAM 64 MB
    Storage size 16 MB
    Storage type FLASH
    Tested ambient temperature -40°C .. +70°C tested
    Suggested price $119.00

    Powering

    Details
    Max Power consumption 11W
    Number of DC inputs 1 (PoE-IN)
    PoE in Passive PoE
    PoE in input Voltage 10-30 V

    Wireless

    Details
    Wireless 5 GHz/2.4 GHz number of chains 1
    Wireless 5 GHz/2.4 GHz standards 802.11b/g/n/ac
    Antenna gain dBi for 5 GHz/2.4 GHz 6
    Wireless 5 GHz/2.4 GHz chip model QCA-9889

    Ethernet

    Details
    10/100/1000 Ethernet ports 1

    Other

    Details
    PCB temperature monitor Yes
    Voltage Monitor Yes

    Wireless specifications

    5 GHz
    Transmit (dBm)Receive Sensitivity
    6MBit/s31-93
    54MBit/s27-78
    MCS030-93
    MCS726-74
    MCS922-69
    2.4 GHz
    Transmit (dBm)Receive Sensitivity
    1MBit/s31-97
    11MBit/s31-91
    6MBit/s31-93
    54MBit/s28-77
    MCS031-93
    MCS727-72

    More info

    Ethernet test results

    RBMetalG-52SHPacnQCA9556 1G all port test
    ModeConfiguration1518 byte512 byte64 byte
    kppsMbpskppsMbpskppsMbps
    Bridgingnone (fast path)81.2986.1233.1954.8576.7295.3
    Bridging25 bridge filter rules81.2986.1123.7506.7117.860.3
    Routingnone (fast path)81.2986.1233.1954.8454.8232.9
    Routing25 simple queues81.2986.1152.6625137.270.2
    Routing25 ip filter rules69.4842.866.3271.668.735.2
    1. All tests are done with Xena Networks specialized test equipment (XenaBay),and done according to RFC2544 (Xena2544)
    2. Max throughput is determined with 30+ second attempts with 0,1% packet loss tolerance in 64, 512, 1518 byte packet sizes
    3. Values in Italic indicate that max throughput was reached without maxing out CPU, but because board interface configuration was maxed out
    4. Test results show device maximum performance, and are reached using mentioned hardware and software configuration, different configurations most likely will result in lower results
