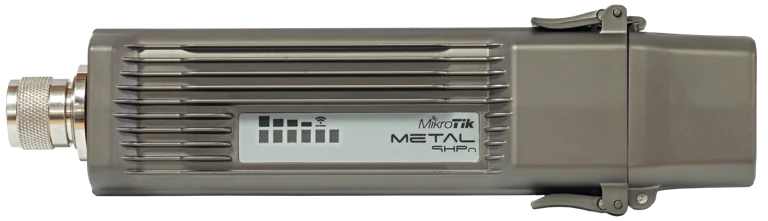

    Metal 9 900MHz Integrated AP/Backbone/CPE, N-male connector

    Discontinued


    RBMetal9HPn is our first product for 900MHz frequency. With the same case as our Metal2 and Metal5 models, it's completely waterproof, rugged and high powered. RBMetal9HPn is equipped with RouterOS L4 license (AP, point-to-point or CPE).

    Metal9HPn is compatible only with another Metal9HPn, and available only with US type power plug. It will not work with any other 900MHz manufacturer product.

    Supported frequencies: 902-927MHz (Selectable center frequencies 907 to 922)
     Send purchase questions

    Specifications

    Details
    Product code RBMetal9HPn
    Architecture MIPSBE
    CPU AR7241
    CPU core count 1
    CPU nominal frequency 400 MHz
    Dimensions 177x44x44mm, 193g
    RouterOS license 4
    Operating System RouterOS
    Size of RAM 64 MB
    Storage size 128 MB
    Storage type NAND
    MTBF Approximately 200'000 hours at 25C
    Tested ambient temperature -40°C to 70°C
    Suggested price $129.00

    Powering

    Details
    Number of DC inputs 1 (PoE-IN)
    Max power consumption 10 W
    Cooling type Passive
    PoE in Passive PoE
    PoE in input Voltage 8-32 V

    Wireless specifications

    Details
    Wireless 900 MHz Max data rate 150 Mbit/s
    Wireless 900 MHz number of chains 1
    Wireless 900 MHz standards 802.11b/g/n
    Wireless 900 MHz chip model AR9283
    Wireless 900 MHz generation Wi-Fi 4

    Ethernet

    Details
    10/100 Ethernet ports 1

    Other

    Details
    PCB temperature monitor Yes
    Voltage Monitor Yes
    Beeper Yes

    Certification & Approvals

    Details
    Certification FCC

    Wireless specifications

    900 MHzTransmit (dBm)Receive Sensitivity
    1MBit/s27-93
    11MBit/s27-93
    6MBit/s27-93
    54MBit/s24-75
    MCS027-93
    MCS723-71

    Included parts

    BrochureOpen
    Quick GuideOpen
    RouterOS software manualOpen
    Declaration of conformityOpen (FCC)

    High resolution images

    Ethernet test results

    RBMetal9HPnAR7241 100M 1 port test
    ModeConfiguration1518 byte512 byte64 byte
    kppsMbpskppsMbpskppsMbps
    Bridgingnone (fast path)8.198.623.596.3148.075.8
    Bridging25 bridge filter rules8.198.623.596.353.727.5
    Routingnone (fast path)8.198.623.596.3148.075.8
    Routing25 simple queues8.198.623.596.392.847.5
    Routing25 ip filter rules8.198.623.596.337.519.2
    1. All tests are done with Xena Networks specialized test equipment (XenaBay),and done according to RFC2544 (Xena2544)
    2. Max throughput is determined with 30+ second attempts with 0,1% packet loss tolerance in 64, 512, 1518 byte packet sizes
    3. Test results show device maximum performance, and are reached using mentioned hardware and software configuration, different configurations most likely will result in lower results

    The device has an operating system preinstalled and licensed. No separate purchase is necessary and the product is ready to use. The device includes free software updates for the life of the product or a minimum of 5 years starting from date of purchase..
