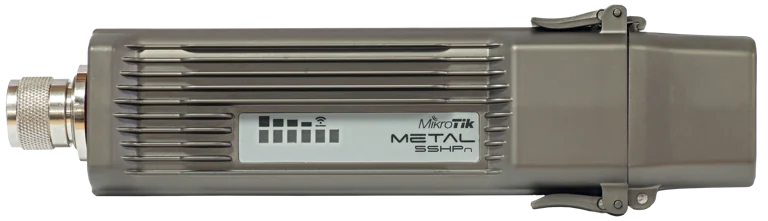

    Metal 5 5Ghz Integrated AP/Backbone/CPE, N-male connector

    Discontinued


    The new, completely waterproof, rugged, and super high powered RouterBOARD Metal. The serious outdoor wireless device!

    Fully sealed, industrial design metal case, powered by RouterBOARD and RouterOS. high output power - to reach the last mile, in any conditions! It comes with L4 license, so you can attach your favorite 5Ghz antennna to use it as an AP, to make wireless point-to-point links or as a CPE- whatever you prefer!

    It has a built-in N-male connector, and pole attachment points, so you can attach it to an antenna directly, or use a standard antenna cable. LED signal indicators make it easy to install and align.

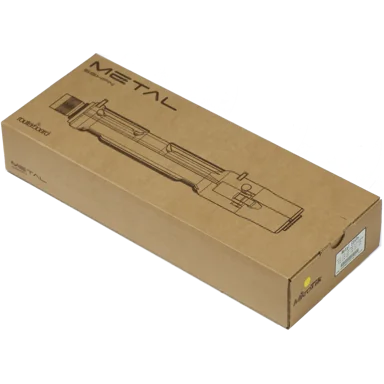

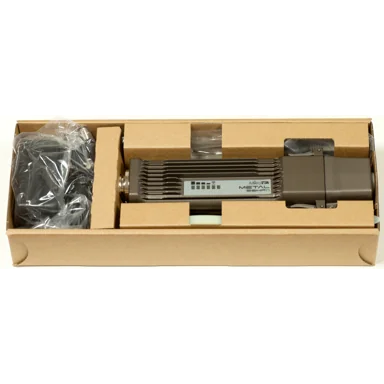

    Package contains Metal-5SHPn, mounting loops, PoE injector, power adapter

    - RBMetal5SHPn-US (USA) is factory locked for 5170-5250MHz and 5725-5835MHz frequencies. This lock can not be removed.

    - RBMetal5SHPn (International) supports 5150MHz-5875MHz range (Specific frequency range can be limited by country regulations).

     Send purchase questions

    Specifications

    Details
    Product code RBMetal5SHPn
    Architecture MIPSBE
    CPU AR7241
    CPU core count 1
    CPU nominal frequency 400 MHz
    Dimensions 215x60x38mm
    RouterOS license 4
    Operating System RouterOS
    Size of RAM 64 MB
    Storage size 128 MB
    Storage type NAND
    MTBF Approximately 100'000 hours at 25C
    Tested ambient temperature -40°C to 70°C
    Suggested price $99.00

    Powering

    Details
    Number of DC inputs 1 (PoE-IN)
    Max power consumption 10.6 W
    Cooling type Passive
    PoE in Passive PoE
    PoE in input Voltage 10-30 V

    Wireless specifications

    Details
    Wireless 5 GHz Max data rate 150 Mbit/s
    Wireless 5 GHz number of chains 1
    Wireless 5 GHz standards 802.11a/n
    Wireless 5 GHz chip model AR9280
    Wireless 5 GHz generation Wi-Fi 4

    Ethernet

    Details
    10/100 Ethernet ports 1

    Other

    Details
    PCB temperature monitor Yes
    Voltage Monitor Yes
    Beeper Yes

    Certification & Approvals

    Details
    Certification CE, FCC, IC, EAC, ROHS

    Wireless specifications

    5 GHzTransmit (dBm)Receive Sensitivity
    6MBit/s31-93
    54MBit/s27-77
    MCS030-92
    MCS728-71

    Included parts

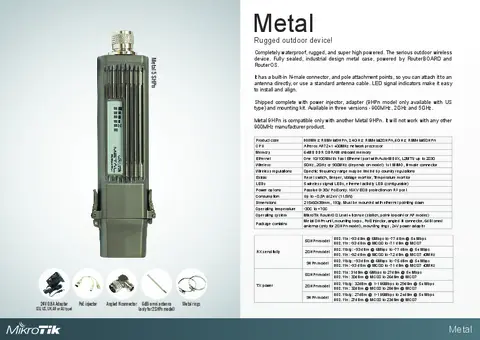

    BrochureOpen
    Quick GuideOpen
    RouterBoot firmware Download
    RouterOS software manualOpen
    Declaration of conformityOpen (CE)
    Declaration of conformityOpen (FCC)

    High resolution images

    Ethernet test results

    RBMetal5SHPnAR7241 100M 1 port test
    ModeConfiguration1518 byte512 byte64 byte
    kppsMbpskppsMbpskppsMbps
    Bridgingnone (fast path)8.198.623.596.3148.075.8
    Bridging25 bridge filter rules8.198.623.596.353.727.5
    Routingnone (fast path)8.198.623.596.3148.075.8
    Routing25 simple queues8.198.623.596.392.847.5
    Routing25 ip filter rules8.198.623.596.337.519.2
    1. All tests are done with Xena Networks specialized test equipment (XenaBay),and done according to RFC2544 (Xena2544)
    2. Max throughput is determined with 30+ second attempts with 0,1% packet loss tolerance in 64, 512, 1518 byte packet sizes
    3. Test results show device maximum performance, and are reached using mentioned hardware and software configuration, different configurations most likely will result in lower results

    The device has an operating system preinstalled and licensed. No separate purchase is necessary and the product is ready to use. The device includes free software updates for the life of the product or a minimum of 5 years starting from date of purchase..
