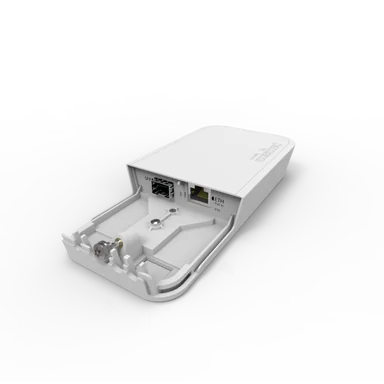

RBFTC11
Fiber to Copper converter, Outdoor case, 12-57V PoE with 802.3af/at support
Outdoors
PoE
SFP/SFP+
RBFTC11
The FTC is a simple Fiber to Copper converter. Unlike many other media converters available on market, it has outdoor waterproof case with lock screw, it's mounting bracket can be attached and locked with a screw from inside the case. Unit has 12-57V PoE with 802.3af/at support (with unshielded cross cable). Comes with PoE injector and power supply. Works only with Gigabit SFP connections.
Specification
Specifications
- Product code RBFTC11
- Suggested price $39.00
- Switch chip model QCA8334-AL3C
- Input voltage 12-57V
- Storage size 1 KB
- Storage type FLASH
- MTBF Approximately 100'000 hours at 25C
Powering
- Max power consumption 3 W
- PoE in 802.3af/at
- Cooling type Passive
Ethernet
- 10/100/1000 Ethernet ports 1
Fiber
- SFP ports 1
Certification & Approvals
- Certification CE, EAC, ROHS
Included parts
Switching results
| RBFTC11 | |||||||
| Mode | Configuration | 1518 byte | 512 byte | 64 byte | |||
| kpps | Mbps | kpps | Mbps | kpps | Mbps | ||
| Switching | Non blocking Layer 2 throughput | 81.3 | 987.3 | 234.9 | 962.1 | 1488.1 | 761.9 |
| Switching | Non blocking Layer 2 capacity | 81.3 | 1974.6 | 234.9 | 1924.2 | 1488.1 | 1523.8 |
| Switching | Non blocking Layer 1 throughput | 81.3 | 1000.0 | 234.9 | 1000.0 | 1488.1 | 1000.0 |
| Switching | Non blocking Layer 1 capacity | 81.3 | 2000.0 | 234.9 | 2000.0 | 1488.1 | 2000.0 |

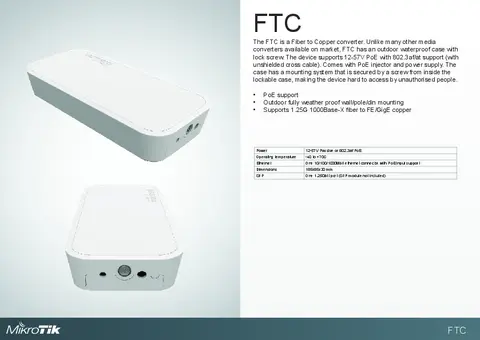

Documents
