    DynaDish 5 Dual chain 5GHz 802.11a/n/ac QCA9892, 128MB RAM, 720 MHz CPU, 25dBi antenna gain

    Discontinued

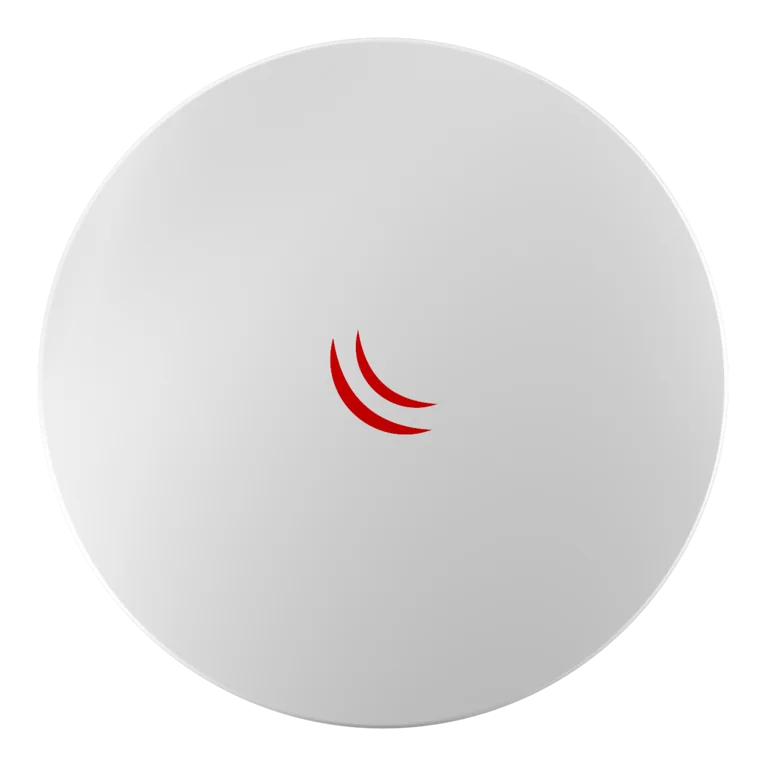

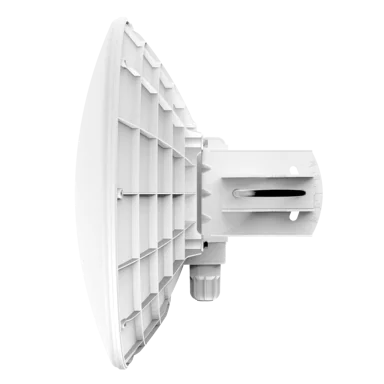

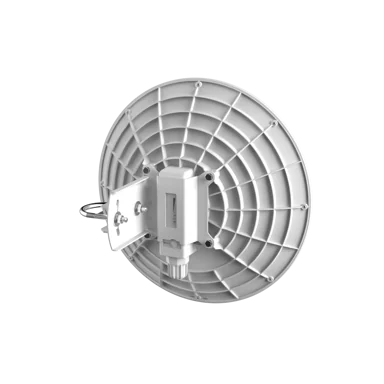

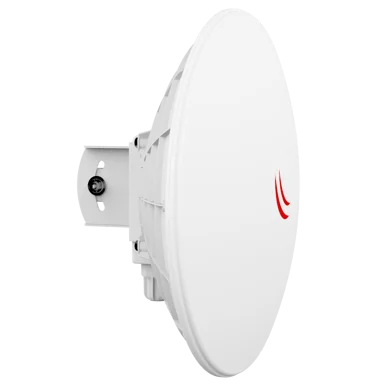

    The DynaDish 5 is a new 802.11ac outdoor device with an integrated 25dBi antenna. Compact in it’s design, it is a simple and completely integrated product with everything you need to quickly install a reliable point to point link.

    The DynaDish 5 is powered by a new 720MHz CPU from Qualcomm.

    - RBDynaDishG-5HacD-US (USA) is factory locked for 5170-5250MHz and 5725-5835MHz frequencies. This lock can not be removed.

    - RBDynaDishG-5HacD (International) supports 5150-5875MHz range (Specific frequency range can be limited by country regulations).

     Send purchase questions

    Specifications

    Details
    Product code RBDynaDishG-5HacDr3
    Architecture MIPSBE
    CPU QCA9557
    CPU core count 1
    CPU nominal frequency 720 MHz
    Dimensions Ø 404mm, height 175mm (without mount)
    RouterOS license 3
    Operating System RouterOS
    Size of RAM 128 MB
    Storage size 16 MB
    Storage type FLASH
    MTBF Approximately 200'000 hours at 25C
    Tested ambient temperature -40°C to 70°C
    Suggested price $199.00

    Powering

    Details
    Number of DC inputs 1 (PoE-IN)
    Max power consumption 9 W
    Cooling type Passive
    PoE in 802.3af/at
    PoE in input Voltage 11-60 V

    Wireless specifications

    Details
    Wireless 5 GHz Max data rate 867 Mbit/s
    Wireless 5 GHz number of chains 2
    Wireless 5 GHz standards 802.11a/n/ac
    Antenna gain dBi for 5 GHz 25
    Wireless 5 GHz chip model QCA9892
    Wireless 5 GHz generation Wi-Fi 5

    Ethernet

    Details
    10/100/1000 Ethernet ports 1

    Other

    Details
    PCB temperature monitor Yes
    Voltage Monitor Yes
    Beeper Yes

    Certification & Approvals

    Details
    Certification CE, FCC, IC, EAC, ROHS
    IP IP54

    Wireless specifications

    5 GHzTransmit (dBm)Receive Sensitivity
    6MBit/s31-96
    54MBit/s28-81
    MCS030-96
    MCS727-77
    MCS922-72

    Included parts

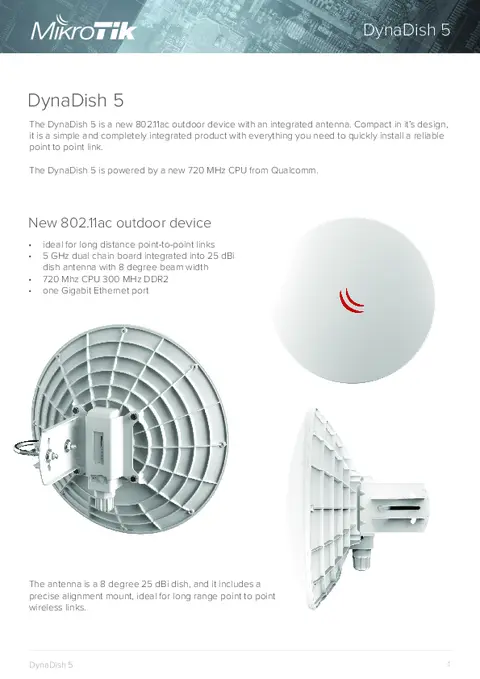

    BrochureOpen
    Quick GuideOpen
    User ManualOpen
    RouterOS current release
    PoE-IN compatibility listOpen
    RouterOS software manualOpen
    Declaration of conformityOpen (CE)
    Declaration of conformityOpen (FCC)

    High resolution images

    #
    #
    #
    #

    Ethernet test results

    RBDynaDishG-5HacDr3QCA9557 1G all port test
    ModeConfiguration1518 byte512 byte64 byte
    kppsMbpskppsMbpskppsMbps
    Bridgingnone (fast path)81.2986.1234.9962.2477.7244.6
    Bridging25 bridge filter rules81.2986.1118.4485.0119.561.2
    Routingnone (fast path)81.2986.1234.9962.2408.2209.0
    Routing25 simple queues81.2986.1158.3648.4165.884.9
    Routing25 ip filter rules64.8786.970.4288.460.931.2
    1. All tests are done with Xena Networks specialized test equipment (XenaBay),and done according to RFC2544 (Xena2544)
    2. Max throughput is determined with 30+ second attempts with 0,1% packet loss tolerance in 64, 512, 1518 byte packet sizes
    3. Test results show device maximum performance, and are reached using mentioned hardware and software configuration, different configurations most likely will result in lower results

    The device has an operating system preinstalled and licensed. No separate purchase is necessary and the product is ready to use. The device includes free software updates for the life of the product or a minimum of 5 years starting from date of purchase..
