RB951G-2HnD

2.4Ghz AP, 5xGigabit Ethernet, USB, 600MHz CPU, 128MB RAM

PoE

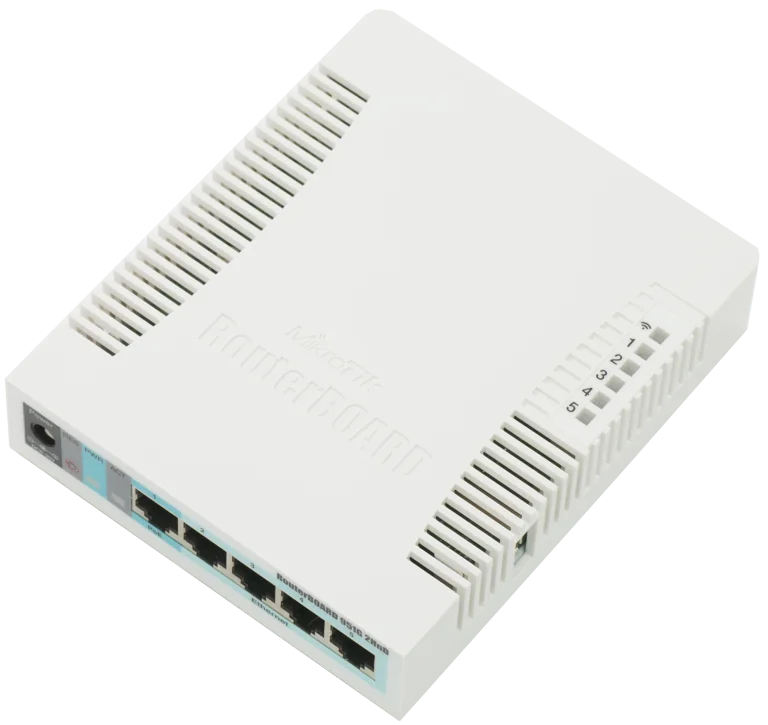

RB951G-2HnD

The RB951G-2HnD is a wireless SOHO Gigabit AP with a new generation Atheros CPU and more processing power. It has five Gigabit Ethernet ports, one USB 2.0 port and a high power 2.4GHz 802.11b/g/n wireless AP with antennas built in.

In comparison with previous model RB751G-2HnD, it has more powerful 600Mhz CPU (instead of 400Mhz), more RAM - 128MB instead of 64MB, same form factor and price. The device is very small and will look good in any home or office, wall mounting anchor holes are provided.

Package contains RouterBOARD 951G-2HnD in a plastic case and power adapter.

Specification

Specifications

Product code RB951G-2HnD
Suggested price $89.95
Architecture MIPSBE
CPU AR9344
CPU core count 1
CPU nominal frequency 600 MHz
Switch chip model AR8327-BL1A
Dimensions 113x138x29mm
RouterOS license 4
Operating System RouterOS
Size of RAM 128 MB
Storage size 128 MB
Storage type NAND
MTBF Approximately 100'000 hours at 25C
Tested ambient temperature -20C .. +50C

Wireless capabilities

Wireless 2.4 GHz Max data rate 300 Mbit/s
Wireless 2.4 GHz Number of chains 2
Wireless 2.4 GHz standards 802.11b/g/n
Antenna gain dBi for 2.4 GHz 2.5
Wireless 2.4 GHz chip model AR9344
Wireless 2.4 GHz generation Wi-Fi 4

Ethernet

10/100/1000 Ethernet ports 5

Peripherals

Number of USB ports 1
USB Power Reset Yes
USB slot type USB type A

Powering

Number of DC inputs 2 (DC jack, PoE-IN)
DC jack input Voltage 8-30 V
Max power consumption 7 W
PoE in Passive PoE
PoE in input Voltage 8-30 V

Certification & Approvals

Certification FCC
IP IP20

Other

Beeper Yes

Included parts

Note

The device has an operating system preinstalled and licensed. No separate purchase is necessary and the product is ready to use. The device includes free software updates for the life of the product or a minimum of 5 years starting from date of purchase.

2.4 GHz

Transmit (dBm)

Receive Sensitivity

6MBit/s

-96

54MBit/s

-80

MCS0

-96

MCS7

-78

RB951G-2HnD		AR9344 1G all port test
Mode	Configuration	1518 byte		512 byte		64 byte
Mode	Configuration	kpps	Mbps	kpps	Mbps	kpps	Mbps
Bridging	none (fast path)	81.0	983.7	232.0	950.3	269.6	138.0
Bridging	25 bridge filter rules	81.0	983.7	86.0	352.3	87.6	44.9
Routing	none (fast path)	81.0	983.7	210.0	860.2	226.9	116.2
Routing	25 simple queues	81.0	983.7	103.9	425.6	106.6	54.6
Routing	25 ip filter rules	56.8	689.8	59.6	244.1	60.5	31.0

All tests are done with Xena Networks specialized test equipment (XenaBay),and done according to RFC2544 (Xena2544)
Max throughput is determined with 30+ second attempts with 0,1% packet loss tolerance in 64, 512, 1518 byte packet sizes
Test results show device maximum performance, and are reached using mentioned hardware and software configuration, different configurations most likely will result in lower results
