Discontinued
RB951-2n
2.4GHz 50mW AP, 5xEthernet, 400MHz CPU, 32MB RAM
PoE

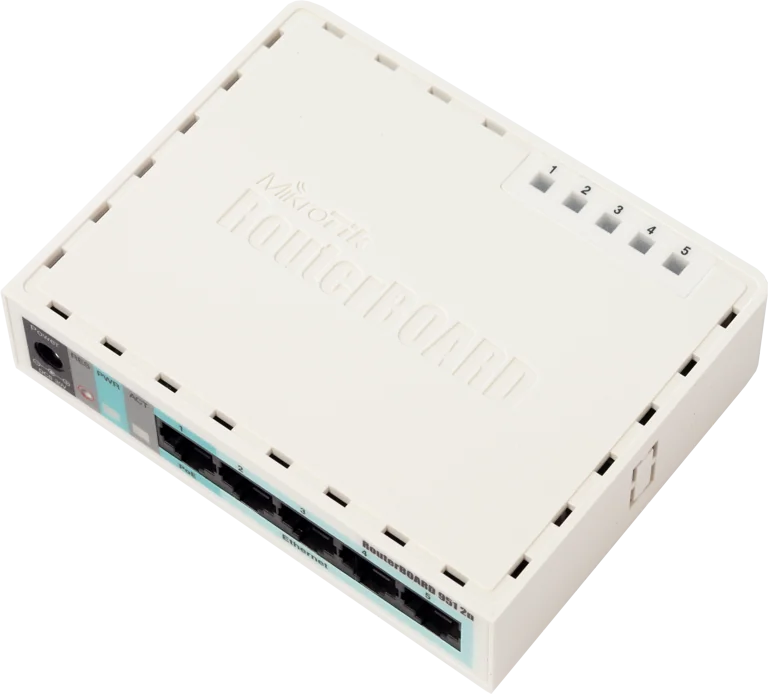

RB951-2n
The RB951-2n is the home wireless AP you have been waiting for! It is small and compact, has five Ethernet ports and a 802.11b/g/n wireless AP with an antenna built in.
This model is much smaller than the more powerful RB751U-2HnD model, the RB951-2n looks exactly like our popular RB750 series. The device is very small and will look good in any home or office, wall mounting anchor holes are provided.
Box contains: RB951-2n, plastic case, power supply
R951-2n ad:
Specification
Specifications
- Product code RB951-2n
- Suggested price $45.00
- Architecture MIPSBE
- CPU AR9331
- CPU core count 1
- CPU nominal frequency 400 MHz
- Dimensions 113x89x28mm
- RouterOS license 4
- Size of RAM 32 MB
- Storage size 64 MB
- Storage type NAND
- MTBF Approximately 100'000 hours at 25C
- Tested ambient temperature -20C .. +50C
Wireless capabilities
- Wireless 2.4 GHz Max data rate 150 Mbit/s
- Wireless 2.4 GHz Number of chains 1
- Wireless 2.4 GHz standards 802.11b/g/n
- Antenna gain dBi for 2.4 GHz 1.5
- Wireless 2.4 GHz chip model AR9331
- Wireless 2.4 GHz generation Wi-Fi 4
Ethernet
- 10/100 Ethernet ports 5
Powering
- Number of DC inputs 1
- PoE in Passive PoE
Certification & Approvals
- Certification FCC
Included parts
Wireless Specification
2.4 GHz
Transmit (dBm)
Receive Sensitivity
1MBit/s
11MBit/s
17
6MBit/s
15
-92
54MBit/s
11
-73
MCS0
15
-92
MCS7
9
-67
Ethernet test results
| RB951-2n | AR9331 100M all port test | ||||||
| Mode | Configuration | 1518 byte | 512 byte | 64 byte | |||
| kpps | Mbps | kpps | Mbps | kpps | Mbps | ||
| Bridging | none (fast path) | 40.0 | 485.8 | 112.4 | 460.4 | 146.7 | 75.1 |
| Bridging | 25 bridge filter rules | 40.0 | 485.8 | 49.1 | 201.1 | 49.6 | 25.4 |
| Routing | none (fast path) | 40.0 | 485.8 | 106.6 | 436.6 | 142.4 | 72.9 |
| Routing | 25 simple queues | 40.0 | 485.8 | 76.9 | 315.0 | 80.3 | 41.1 |
| Routing | 25 ip filter rules | 33.2 | 403.2 | 35.7 | 146.2 | 35.8 | 18.3 |
- All tests are done with Xena Networks specialized test equipment (XenaBay),and done according to RFC2544 (Xena2544)
- Max throughput is determined with 30+ second attempts with 0,1% packet loss tolerance in 64, 512, 1518 byte packet sizes
- Test results show device maximum performance, and are reached using mentioned hardware and software configuration, different configurations most likely will result in lower results
