QRT 5
5GHz AP/Backbone/CPE, dual-chain, Gigabit Ethernet
The QRT 5 is a rugged outdoor flat panel antenna, with a built in RouterBOARD. The device has a 24dBi antenna and a high power 5GHz wireless transmitter.

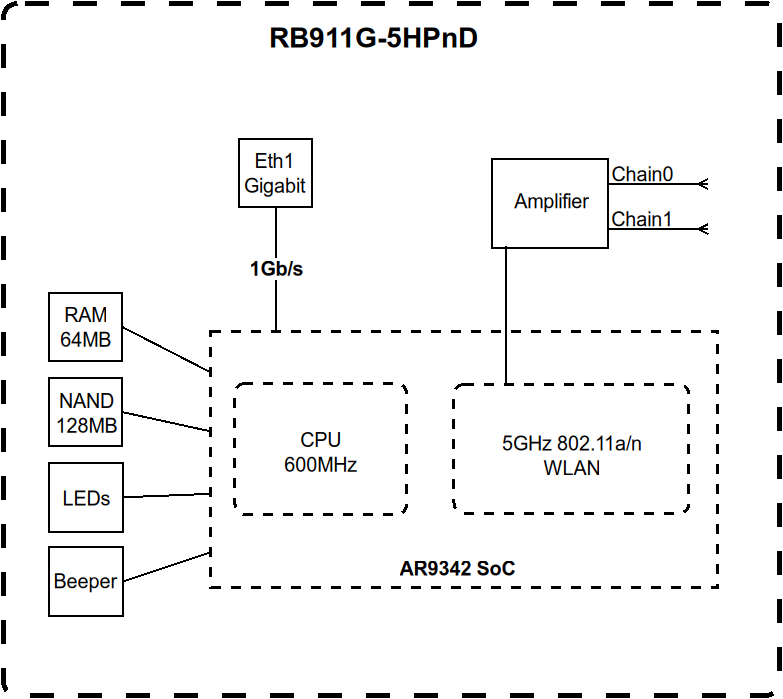

Inside is the high power RB911 dual chain wireless device (see separate brochure), with high performance, high output power wireless transmitter. It has a Gigabit Ethernet port, to fully utilise the benefit of 802.11n high speed wireless.
Easy to use and quick to deploy, QRT is ideal for point to point links.
- RB911G-5HPnD-QRT-US (USA) is factory locked for 5170-5250MHz and 5725-5835MHz frequencies. This lock can not be removed.
- RB911G-5HPnD-QRT (International) supports 5150MHz-5875MHz range (Specific frequency range can be limited by country regulations).
Specification
- Product code RB911G-5HPnD-QRT
- Suggested price $169.00
- Architecture MIPSBE
- CPU AR9342
- CPU core count 1
- CPU nominal frequency 600 MHz
- Dimensions 309x320x50mm
- RouterOS license 4
- Operating System RouterOS
- Size of RAM 64 MB
- Storage size 128 MB
- Storage type NAND
- MTBF Approximately 200'000 hours at 25C
- Tested ambient temperature -40°C to 70°C
- Number of DC inputs 1 (PoE-IN)
- Max power consumption 12 W
- PoE in Passive PoE
- Cooling type Passive
- PoE in input Voltage 8-28 V
- Wireless 5 GHz Max data rate 300 Mbit/s
- Wireless 5 GHz Number of chains 2
- Wireless 5 GHz standards 802.11a/n
- Antenna gain dBi for 5 GHz 24
- Wireless 5 GHz chip model AR9342
- Wireless 5 GHz generation Wi-Fi 4
- 10/100/1000 Ethernet ports 1
- PCB temperature monitor Yes
- Voltage Monitor Yes
- Beeper Yes
- Certification CE, EAC, ROHS
- IP 54
| RB911G-5HPnD-QRT | AR9342 1G 1 port test | ||||||
| Mode | Configuration | 1518 byte | 512 byte | 64 byte | |||
| kpps | Mbps | kpps | Mbps | kpps | Mbps | ||
| Bridging | none (fast path) | 81.0 | 983.7 | 232.0 | 950.3 | 269.6 | 138.0 |
| Bridging | 25 bridge filter rules | 81.0 | 983.7 | 86.0 | 352.3 | 87.6 | 44.9 |
| Routing | none (fast path) | 81.0 | 983.7 | 210.0 | 860.2 | 226.9 | 116.2 |
| Routing | 25 simple queues | 81.0 | 983.7 | 103.9 | 425.6 | 106.6 | 54.6 |
| Routing | 25 ip filter rules | 56.8 | 689.8 | 59.6 | 244.1 | 60.5 | 31.0 |
- All tests are done with Xena Networks specialized test equipment (XenaBay),and done according to RFC2544 (Xena2544)
- Max throughput is determined with 30+ second attempts with 0,1% packet loss tolerance in 64, 512, 1518 byte packet sizes
- Test results show device maximum performance, and are reached using mentioned hardware and software configuration, different configurations most likely will result in lower results
