911 Lite2

600Mhz CPU, 64MB RAM, 1xEthernet, onboard 2Ghz single chain wireless, RouterOS L3

Outdoors

PoE

Specification Find retailer

911 Lite2

Perfect for building low cost CPE devices.

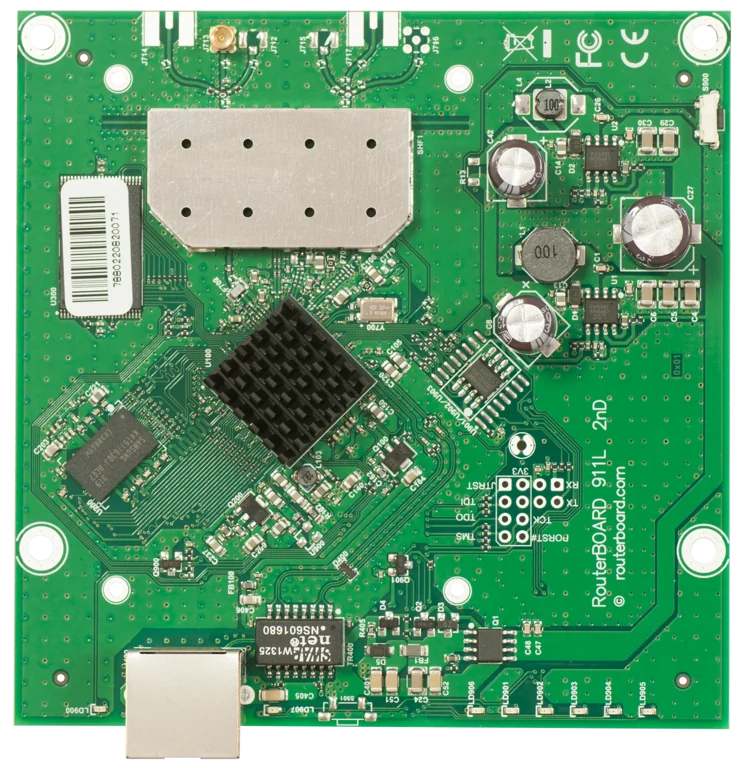

The RB911-2Hn is a small CPE type RouterBOARD wireless router with an integrated 2Ghz single chain wireless card. It’s equipped with powerful 600Mhz CPU, providing superb value for money.

Specification

Specifications

Product code RB911-2Hn
Suggested price $39.00
Architecture MIPSBE
CPU AR9344
CPU core count 1
CPU nominal frequency 600 MHz
Dimensions 105x105mm
RouterOS license 3
Operating System RouterOS
Size of RAM 64 MB
Storage size 16 MB
Storage type FLASH
MTBF Approximately 100'000 hours at 25C
Tested ambient temperature -40°C to 70°C

Powering

Number of DC inputs 1 (PoE-IN)
Max power consumption 4 W
PoE in Passive PoE
Cooling type Passive
PoE in input Voltage 10-30 V

Wireless specifications

Wireless 2.4 GHz Max data rate 150 Mbit/s
Wireless 2.4 GHz Number of chains 1
Wireless 2.4 GHz standards 802.11b/g/n
Wireless 2.4 GHz chip model AR9344
Wireless 2.4 GHz generation Wi-Fi 4

Ethernet

10/100 Ethernet ports 1

Certification & Approvals

Certification FCC

Note

The device has an operating system preinstalled and licensed. No separate purchase is necessary and the product is ready to use. The device includes free software updates for the life of the product or a minimum of 5 years starting from date of purchase.

2.4 GHz

Transmit (dBm)

Receive Sensitivity

1MBit/s

-96

11MBit/s

-88

6MBit/s

-93

54MBit/s

-75

MCS0

-93

MCS7

-72

RB911-2Hn		AR9344 100M 1 port test
Mode	Configuration	1518 byte		512 byte		64 byte
Mode	Configuration	kpps	Mbps	kpps	Mbps	kpps	Mbps
Bridging	none (fast path)	8.1	98.4	23.5	96.3	148.0	75.8
Bridging	25 bridge filter rules	8.1	98.4	23.5	96.3	87.6	44.9
Routing	none (fast path)	8.1	98.4	23.5	96.3	148.0	75.8
Routing	25 simple queues	8.1	98.4	23.5	96.3	106.6	54.6
Routing	25 ip filter rules	8.1	98.4	23.5	96.3	60.5	31.0

All tests are done with Xena Networks specialized test equipment (XenaBay),and done according to RFC2544 (Xena2544)
Max throughput is determined with 30+ second attempts with 0,1% packet loss tolerance in 64, 512, 1518 byte packet sizes
Test results show device maximum performance, and are reached using mentioned hardware and software configuration, different configurations most likely will result in lower results
