    hEX lite 5x Ethernet, Small plastic case, 850MHz CPU, 64MB RAM, Most affordable MPLS router, RouterOS L4

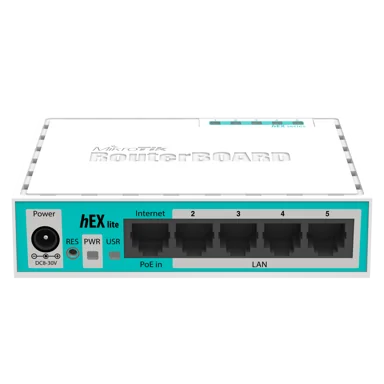

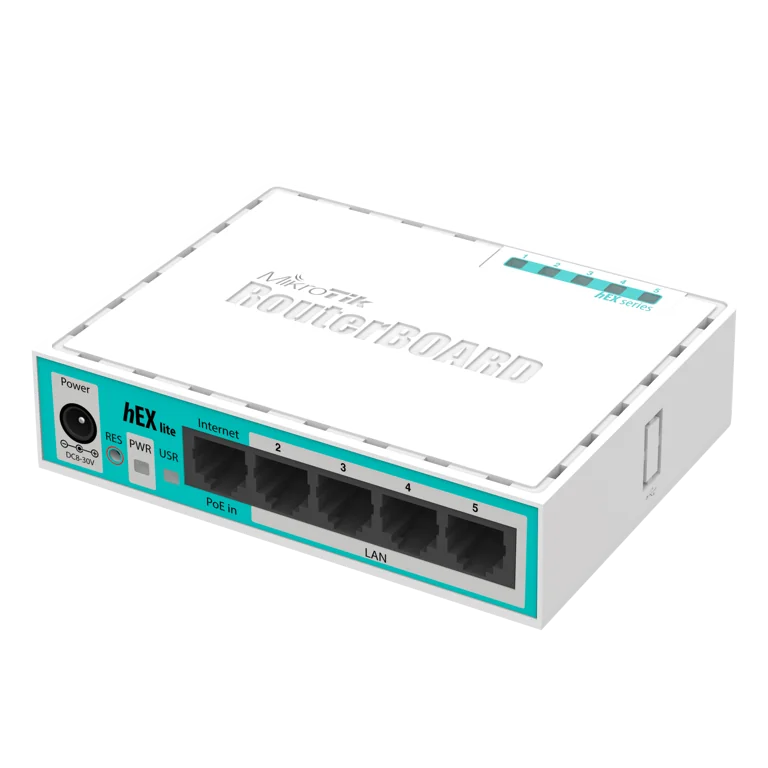

    hEX lite is a small five port ethernet router in a nice plastic case.

    Its price is lower than the RouterOS license alone - there simply is no choice when it comes to managing your wired home network, the RB750r2 (hEX lite) has it all.

    Not only it’s affordable, small, good looking and easy to use - It’s probably the most affordable MPLS capable router on the market! No more compromise between price and features - RB750r2 has both. With its compact design and clean looks, it will fit perfectly into any SOHO environment.

    Box contains: hEX lite in a plastic case, power supply

     Send purchase questions

    Specifications

    Details
    Product code RB750r2
    Architecture MIPSBE
    CPU QCA9533
    CPU core count 1
    CPU nominal frequency 850 MHz
    Switch chip model QCA9533
    Dimensions 113x89x28mm. Weight without packaging and cables: 129g
    RouterOS license 4
    Operating System RouterOS
    Size of RAM 64 MB
    Storage size 16 MB
    Storage type FLASH
    MTBF Approximately 100'000 hours at 25C
    Tested ambient temperature -40°C to 70°C
    Suggested price $39.95

    Powering

    Details
    Number of DC inputs 2 (DC jack, PoE-IN)
    DC jack input Voltage 6-30 V
    Max power consumption 2 W
    Cooling type Passive
    PoE in Passive PoE
    PoE in input Voltage 6-30 V

    Ethernet

    Details
    10/100 Ethernet ports 5

    Certification & Approvals

    Details
    Certification CE, EAC, ROHS
    IP IP20

    Included parts

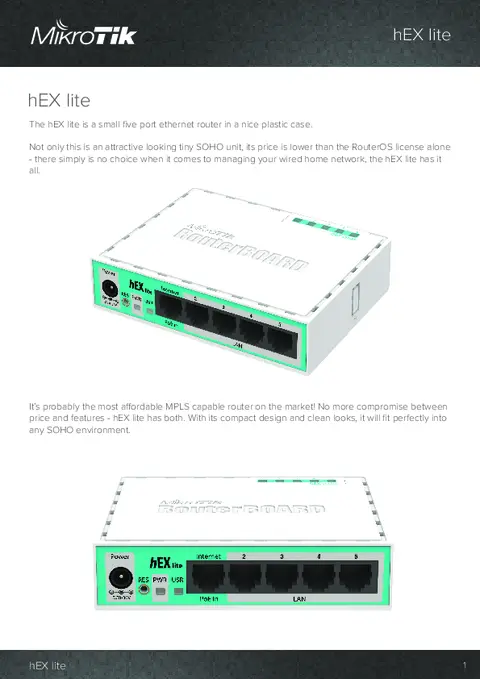

    BrochureOpen
    Quick GuideOpen
    User ManualOpen
    RouterOS current releaseDownload
    Design Files DXF-PDFOpen
    Block DiagramOpen
    STEP file for CADOpen
    RouterOS software manualOpen
    Declaration of conformityOpen (CE)

    High resolution images

    #
    #

    Ethernet test results

    RB750r2QCA9531 (850Mhz) 100M all port test
    ModeConfiguration1518 byte512 byte64 byte
    kppsMbpskppsMbpskppsMbps
    Bridgingnone (fast path)40.6493.0117.4480.9234.8120.2
    Bridging25 bridge filter rules40.6493.090.4370.394.348.3
    Routingnone (fast path)40.6493.0117.4480.9217.8111.5
    Routing25 simple queues40.6493.098.9405.1101.251.8
    Routing25 ip filter rules40.6493.052.0213.052.727.0
    1. All tests are done with Xena Networks specialized test equipment (XenaBay),and done according to RFC2544 (Xena2544)
    2. Max throughput is determined with 30+ second attempts with 0,1% packet loss tolerance in 64, 512, 1518 byte packet sizes
    3. Test results show device maximum performance, and are reached using mentioned hardware and software configuration, different configurations most likely will result in lower results

    The device has an operating system preinstalled and licensed. No separate purchase is necessary and the product is ready to use. The device includes free software updates for the life of the product or a minimum of 5 years starting from date of purchase..
