RB750GL

5x Gigabit Ethernet, 400Mhz CPU, 64MB RAM, RouterOS L4

PoE

RB750GL

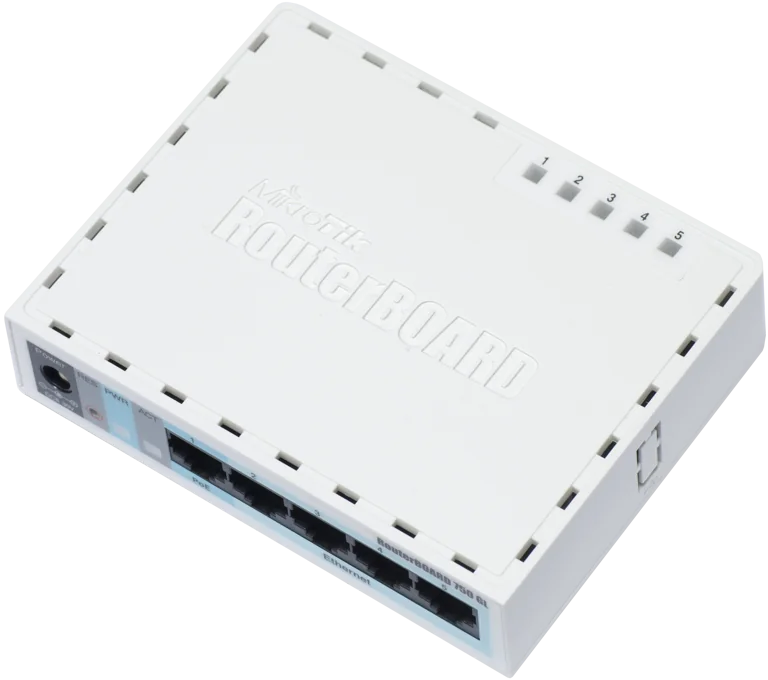

The RB750GL is a small SOHO router in a white plastic case.

It has five independent Gigabit Ethernet ports and optional switch chip functionality for wire speed Gigabit throughput. It’s probably the most affordable MPLS capable Gigabit router on the market and now it is even more affordable than before. Compared to the previous model, the RB750GL has almost the same performance, but is significantly lower cost, only $59.95!

With it’s compact design and clean looks, it will fit perfectly into any SOHO environment.

Box contains: RB750GL, plastic case, power adapter

Specification

Specifications

Product code RB750GL
Suggested price $59.95
Architecture MIPSBE
CPU AR7242
CPU core count 1
CPU nominal frequency 400 MHz
Switch chip model AR8327-BL1A
Dimensions 113x89x28mm. Weight without packaging and cables: 129g
RouterOS license 4
Operating System RouterOS
Size of RAM 64 MB
Storage size 64 MB
Storage type NAND
MTBF Approximately 100'000 hours at 25C
Tested ambient temperature -30C to +70C

Powering

Number of DC inputs 1
Max power consumption without attachments 5W
PoE in Passive PoE

Ethernet

10/100/1000 Ethernet ports 5

Included parts

Note

The device has an operating system preinstalled and licensed. No separate purchase is necessary and the product is ready to use. The device includes free software updates for the life of the product or a minimum of 5 years starting from date of purchase.

RB750GL		AR7242 1G all port test
Mode	Configuration	1518 byte		512 byte		64 byte
Mode	Configuration	kpps	Mbps	kpps	Mbps	kpps	Mbps
Bridging	none (fast path)	81.2	986.1	178.4	730.9	194.0	99.3
Bridging	25 bridge filter rules	51.5	625.5	52.3	214.3	53.7	27.5
Routing	none (fast path)	81.2	986.1	167.0	684.0	183.7	94.1
Routing	25 simple queues	81.2	986.1	88.5	362.4	92.8	47.5
Routing	25 ip filter rules	37.6	457.0	38.4	157.1	37.5	19.2

All tests are done with Xena Networks specialized test equipment (XenaBay),and done according to RFC2544 (Xena2544)
Max throughput is determined with 30+ second attempts with 0,1% packet loss tolerance in 64, 512, 1518 byte packet sizes
Test results show device maximum performance, and are reached using mentioned hardware and software configuration, different configurations most likely will result in lower results
