RB711-5Hn

400Mhz CPU, 32MB RAM, 1xEthernet, onboard 5Ghz wireless, RouterOS L3

Outdoors

PoE

Specification Find retailer

RB711-5Hn

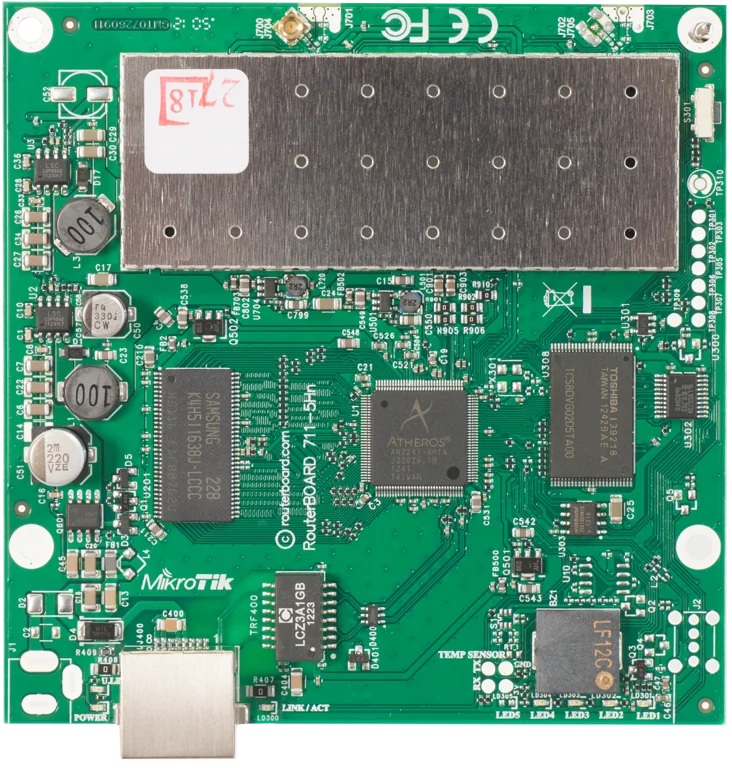

The RB711-5Hn is a small CPE type RouterBOARD wireless router with an integrated 5GHz 802.11a/n wireless card.

RB711 includes RouterOS - the operating system, which can be a router, firewall, bandwidth manager, a CPE and more - all at the same time.

RB711-5Hn is equiped with MMCX connector. The integrated wireless card is capable of up to 23dBm transmit power output.

Supported frequency:

4800-6075Mhz

Specification

Specifications

Product code RB711-5Hn
Suggested price $49.00
Architecture MIPSBE
CPU AR7241
CPU core count 1
CPU nominal frequency 400 MHz
Dimensions 105x105mm
RouterOS license 3
Operating System RouterOS
Size of RAM 32 MB
Storage size 64 MB
Storage type NAND
MTBF Approximately 100'000 hours at 25C
Tested ambient temperature -30C to +60C

Powering

PoE in Passive PoE

Wireless specifications

Wireless 5 GHz Max data rate 150 Mbit/s
Wireless 5 GHz Number of chains 1
Wireless 5 GHz standards 802.11a/n
Wireless 5 GHz chip model AR9280
Wireless 5 GHz generation Wi-Fi 4

Ethernet

10/100 Ethernet ports 1

Other

Beeper Yes

Note

The device has an operating system preinstalled and licensed. No separate purchase is necessary and the product is ready to use. The device includes free software updates for the life of the product or a minimum of 5 years starting from date of purchase.

RB711-5Hn		AR7241 100M 1 port test
Mode	Configuration	1518 byte		512 byte		64 byte
Mode	Configuration	kpps	Mbps	kpps	Mbps	kpps	Mbps
Bridging	none (fast path)	8.1	98.6	23.5	96.3	148.0	75.8
Bridging	25 bridge filter rules	8.1	98.6	23.5	96.3	53.7	27.5
Routing	none (fast path)	8.1	98.6	23.5	96.3	148.0	75.8
Routing	25 simple queues	8.1	98.6	23.5	96.3	92.8	47.5
Routing	25 ip filter rules	8.1	98.6	23.5	96.3	37.5	19.2

All tests are done with Xena Networks specialized test equipment (XenaBay),and done according to RFC2544 (Xena2544)
Max throughput is determined with 30+ second attempts with 0,1% packet loss tolerance in 64, 512, 1518 byte packet sizes
Test results show device maximum performance, and are reached using mentioned hardware and software configuration, different configurations most likely will result in lower results
