    RB450G 680MHz CPU, 256MB RAM, 5xGigabit Ethernet RouterOS L5

    Discontinued

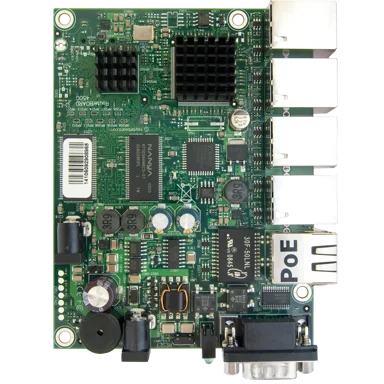

    The RB450G is a five port Gigabit ethernet router. Comparing to the RB450, the RB450G not only adds Gigabit speed capability, but also 256Mb of RAM, a faster CPU and a microSD card slot for file storage.

    The device is powered by a fast AR7161 680MHz Atheros CPU, and also includes a temperature sensor and voltage monitor.

    RB450G includes RouterOS - the operating system, which will turn this powerful system into a highly sophisticated router, firewall or bandwidth manager.

     Send purchase questions

    Specifications

    Details
    Product code RB450G
    Architecture MIPSBE
    CPU AR7161
    CPU core count 1
    CPU nominal frequency 680 MHz
    Switch chip model AR8316
    RouterOS license 5
    Operating System RouterOS
    Size of RAM 256 MB
    Storage size 512 MB
    Storage type NAND
    MTBF Approximately 100'000 hours at 25C
    Tested ambient temperature -20°C to 70°C
    Suggested price $99.00

    Powering

    Details
    Number of DC inputs 2 (DC jack, PoE-IN)
    DC jack input Voltage 8-28 V
    Max power consumption 6 W
    Cooling type Passive
    PoE in Passive PoE
    PoE in input Voltage 8-28 V

    Ethernet

    Details
    10/100/1000 Ethernet ports 5

    Peripherals

    Details
    Memory card type microSD
    Memory Cards 1
    Serial console port RS232

    Other

    Details
    PCB temperature monitor Yes
    Voltage Monitor Yes
    Beeper Yes
    BrochureOpen
    Quick GuideOpen
    RouterOS current releaseDownload
    RouterBoot firmware Download
    Design Files DXF-PDFOpen
    User GuideOpen
    RouterOS software manualOpen
    Declaration of conformityOpen (CE)

    High resolution images

    #

    Ethernet test results

    RB450GAR7161 1G all port test
    ModeConfiguration1518 byte512 byte64 byte
    kppsMbpskppsMbpskppsMbps
    Bridgingnone58.0704.4171.9704.1187.395.9
    Bridging25 bridge filter rules58.5710.484.5346.186.444.2
    Routingnone59.7725.0136.1557.5147.075.3
    Routing25 simple queues55.2670.3117.7482.1137.070.1
    Routing25 ip filter rules54.7664.359.4243.359.230.3
    1. All tests are done with Xena Networks specialized test equipment (XenaBay),and done according to RFC2544 (Xena2544)
    2. Max throughput is determined with 30+ second attempts with 0,1% packet loss tolerance in 64, 512, 1518 byte packet sizes
    3. Test results show device maximum performance, and are reached using mentioned hardware and software configuration, different configurations most likely will result in lower results

    The device has an operating system preinstalled and licensed. No separate purchase is necessary and the product is ready to use. The device includes free software updates for the life of the product or a minimum of 5 years starting from date of purchase..
