RB450

300MHz CPU, 64MB RAM, 5xEthernet, RouterOS L5

Outdoors

PoE

Specification Find retailer

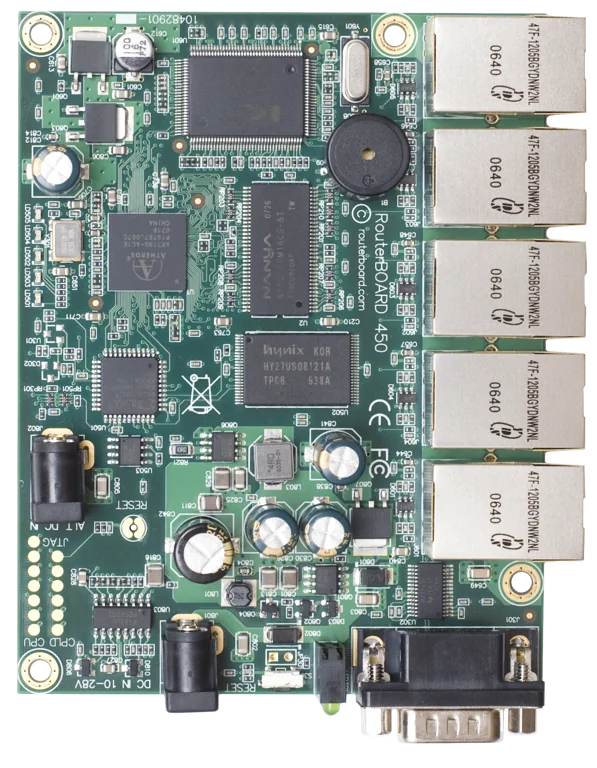

RB450

The RB450 is a five port ethernet router with serial port and power jack for OEM applications.

The RB450 includes a switch chip, which means that it’s five ports can be combined to function as a switch increasing port to port communication speed.

The RB450 series are your perfect wired router for installations where wireless interfaces are not required.

Specification

Specifications

Product code RB450
Suggested price $69.00
Architecture MIPSBE
CPU AR7161
CPU core count 1
CPU nominal frequency 300 MHz
Switch chip model IP175DLF
RouterOS license 5
Operating System RouterOS
Size of RAM 64 MB
Storage size 128 MB
Storage type NAND
MTBF Approximately 100'000 hours at 25C
Tested ambient temperature -30°C to 55°C

Powering

Number of DC inputs 2 (DC jack, PoE-IN)
DC jack input Voltage 8-28 V
Max power consumption 5.8 W
PoE in Passive PoE
Cooling type Passive
PoE in input Voltage 8-28 V

Ethernet

10/100 Ethernet ports 5

Peripherals

Serial console port RS232

Other

Beeper Yes

Note

The device has an operating system preinstalled and licensed. No separate purchase is necessary and the product is ready to use. The device includes free software updates for the life of the product or a minimum of 5 years starting from date of purchase.

RB450		AR7130 100M all port test
Mode	Configuration	1518 byte		512 byte		64 byte
Mode	Configuration	kpps	Mbps	kpps	Mbps	kpps	Mbps
Bridging	none	16.2	196.7	47.0	192.5	97.3	49.8
Bridging	25 bridge filter rules	16.2	196.7	40.6	166.3	41.0	21.0
Routing	none	16.2	196.7	47.0	192.5	79.4	40.7
Routing	25 simple queues	16.2	196.7	47.0	192.5	67.8	34.7
Routing	25 ip filter rules	16.2	196.7	28.9	118.4	24.7	12.6

All tests are done with Xena Networks specialized test equipment (XenaBay),and done according to RFC2544 (Xena2544)
Max throughput is determined with 30+ second attempts with 0,1% packet loss tolerance in 64, 512, 1518 byte packet sizes
Test results show device maximum performance, and are reached using mentioned hardware and software configuration, different configurations most likely will result in lower results
