RB433L

three LAN three miniPCI low cost multi functional

Outdoors

PoE

Specification Find retailer

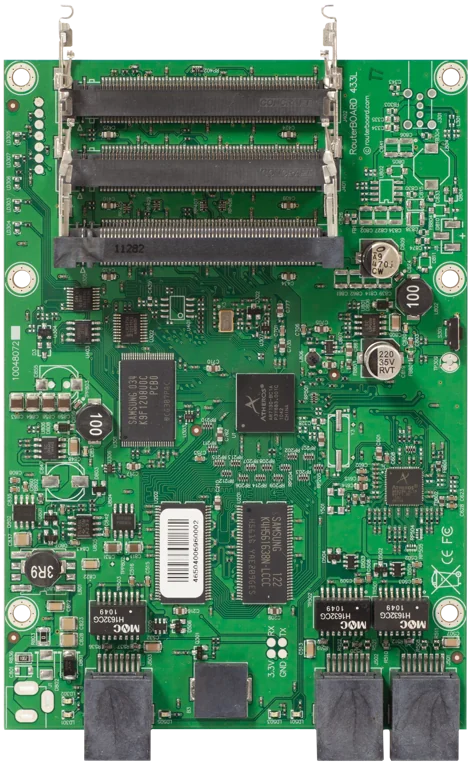

RB433L

The RB433L has three miniPCI slots and three Ethernet ports - it's low-cost version of popular RB433 model.

Use this device in an outdoor case for a sector AP installation, or for a wireless backhaul. Three ports give you plenty of configuration options for many wireless scenarios.

It’s powered by an Atheros 300MHz CPU and has 64MB of RAM and a Level4 RouterOS license.

Specification

Specifications

Product code RB433L
Suggested price $89.00
Architecture MIPSBE
CPU AR7130
CPU core count 1
CPU nominal frequency 300 MHz
Dimensions 105 mm x 154 mm
RouterOS license 4
Operating System RouterOS
Storage size 64 MB
Storage type NAND
MTBF Approximately 100'000 hours at 25C

Powering

PoE in Passive PoE

Ethernet

10/100 Ethernet ports 3

Peripherals

MiniPCI slots 3

Other

Voltage Monitor Yes
Beeper Yes

Note

The device has an operating system preinstalled and licensed. No separate purchase is necessary and the product is ready to use. The device includes free software updates for the life of the product or a minimum of 5 years starting from date of purchase.

RB433L		AR7130 100M all port test
Mode	Configuration	1518 byte		512 byte		64 byte
Mode	Configuration	kpps	Mbps	kpps	Mbps	kpps	Mbps
Bridging	none	16.2	196.7	47.0	192.5	97.3	49.8
Bridging	25 bridge filter rules	16.2	196.7	40.6	166.3	41.0	21.0
Routing	none	16.2	196.7	47.0	192.5	79.4	40.7
Routing	25 simple queues	16.2	196.7	47.0	192.5	67.8	34.7
Routing	25 ip filter rules	16.2	196.7	28.9	118.4	24.7	12.6

All tests are done with Xena Networks specialized test equipment (XenaBay),and done according to RFC2544 (Xena2544)
Max throughput is determined with 30+ second attempts with 0,1% packet loss tolerance in 64, 512, 1518 byte packet sizes
Test results show device maximum performance, and are reached using mentioned hardware and software configuration, different configurations most likely will result in lower results
