RB411GL

680MHz CPU, 64MB RAM, 1xGigabit Ethernet, miniPCI, USB, RouterOS L4

Outdoors

PoE

Specification Find retailer

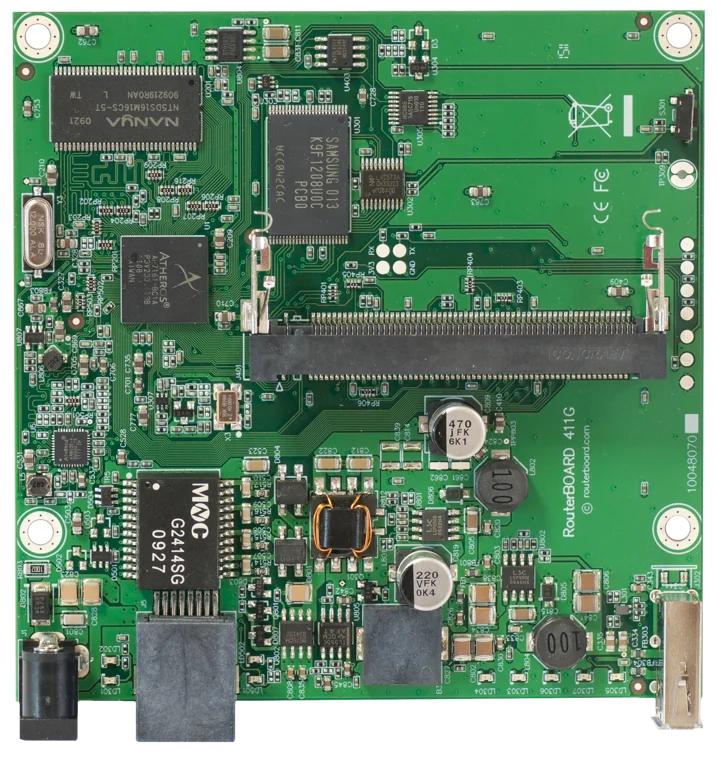

RB411GL

The RB411GL is created for high-end wireless AP, Point-to-Point or CPE OEM applications. It has Gigabit Ethernet port, so you can take full advantage of 802.11n standard.

Unit has one miniPCI slot for your choice of miniPCI wireless card, powerful Atheros 680MHz CPU, 64MB of RAM and a USB port for 3G or storage.

Specification

Specifications

Product code RB411GL
Suggested price $79.00
Architecture MIPSBE
CPU AR7161
CPU core count 1
CPU nominal frequency 680 MHz
Dimensions 105x105mm
RouterOS license 4
Operating System RouterOS
Size of RAM 64 MB
Storage size 64 MB
Storage type NAND
MTBF Approximately 100'000 hours at 25C
Tested ambient temperature -30°C to 60°C

Powering

Number of DC inputs 2 (DC jack, PoE-IN)
DC jack input Voltage 8-30 V
Max power consumption 13.6 W
PoE in Passive PoE
Cooling type Passive
PoE in input Voltage 8-30 V

Ethernet

10/100/1000 Ethernet ports 1

Peripherals

MiniPCI slots 1
Number of USB ports 1
USB slot type USB type A
Max USB current (A) 1

Other

Voltage Monitor Yes
Beeper Yes

Note

The device has an operating system preinstalled and licensed. No separate purchase is necessary and the product is ready to use. The device includes free software updates for the life of the product or a minimum of 5 years starting from date of purchase.

RB411GL		AR7161 1G all port test
Mode	Configuration	1518 byte		512 byte		64 byte
Mode	Configuration	kpps	Mbps	kpps	Mbps	kpps	Mbps
Bridging	none	58.0	704.4	171.9	704.1	187.3	95.9
Bridging	25 bridge filter rules	58.5	710.4	84.5	346.1	86.4	44.2
Routing	none	59.7	725.0	136.1	557.5	147.0	75.3
Routing	25 simple queues	55.2	670.3	117.7	482.1	137.0	70.1
Routing	25 ip filter rules	54.7	664.3	59.4	243.3	59.2	30.3

All tests are done with Xena Networks specialized test equipment (XenaBay),and done according to RFC2544 (Xena2544)
Max throughput is determined with 30+ second attempts with 0,1% packet loss tolerance in 64, 512, 1518 byte packet sizes
Test results show device maximum performance, and are reached using mentioned hardware and software configuration, different configurations most likely will result in lower results
