RB2011UiAS-2HnD
600MHz CPU, 128MB RAM, 5xEthernet, 5xGigabit Ethernet, SFP cage, 1000mW 2.4Ghz onboard, USB, RouterOS L5
The RB2011 is a low cost multi port device series, powered by RouterOS, a fully featured routing operating system which has been continuously improved for fifteen years. Dynamic routing, hotspot, firewall, MPLS, VPN, advanced quality of service, load balancing and bonding, real-time configuration and monitoring - just a few of the vast number of features supported by RouterOS.

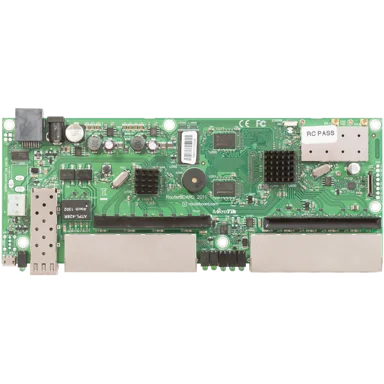

RouterBOARD 2011UiAS-2HnD has most features and interfaces from all our Wireless routers. It’s powered by the new Atheros 600MHz 74K MIPS network processor, has 128MB RAM, five Gigabit LAN ports, five Fast Ethernet LAN ports and SFP cage (SFP module not included!). Also, it features powerful 1000mW dual chain 2.4Ghz 802.11bgn wireless onboard, RJ45 serial port, microUSB port and RouterOS L5 license.
There are two MMCX connectors for adding external antennas, so you can create powerful dual chain wireless backbone, AP or CPE unit.
There is PoE output function for port #10 - it can power other PoE capable devices with the same voltage as applied to the unit. Maximum load on the port is 500mA.
Tested and recommended to use with MikroTik SFP modules: S-85DLC05D, S-31DLC20D and S-35/53LC20D (not included)
Specification
- Product code RB2011UiAS-2HnD
- Suggested price $99.00
- Architecture MIPSBE
- CPU AR9344
- CPU core count 1
- CPU nominal frequency 600 MHz
- Switch chip model AR8327-BL1A-R
- Dimensions 214mm x 86mm
- RouterOS license 5
- Operating System RouterOS
- Size of RAM 128 MB
- Storage size 128 MB
- Storage type NAND
- MTBF Approximately 100'000 hours at 25C
- Tested ambient temperature -40°C to 60°C
- Number of DC inputs 2 (DC jack, PoE-IN)
- DC jack input Voltage 8-30 V
- Max power consumption 6 W
- PoE in Passive PoE
- Cooling type Passive
- PoE in input Voltage 8-30 V
- PoE-out ports Ether10
- PoE out Passive PoE
- Low voltage PoE-Out current limit 510 mA
- Max total out (A) 510 mA
- Wireless 2.4 GHz Max data rate 300 Mbit/s
- Wireless 2.4 GHz Number of chains 2
- Wireless 2.4 GHz standards 802.11b/g/n
- Wireless 2.4 GHz chip model AR9344
- Wireless 2.4 GHz generation Wi-Fi 4
- 10/100 Ethernet ports 5
- 10/100/1000 Ethernet ports 5
- SFP ports 1
- Serial console port RJ45
- Number of USB ports 1
- USB Power Reset Yes
- USB slot type USB type A
- Max USB current (A) 1
- PCB temperature monitor Yes
- Voltage Monitor Yes
- Beeper Yes
- Certification FCC
| RB2011UiAS-2HnD | AR9344 1G&100M all port test | ||||||
| Mode | Configuration | 1518 byte | 512 byte | 64 byte | |||
| kpps | Mbps | kpps | Mbps | kpps | Mbps | ||
| Bridging | none (fast path) | 122.0 | 1,481.6 | 232.0 | 950.3 | 269.6 | 138.0 |
| Bridging | 25 bridge filter rules | 83.6 | 1,015.2 | 86.0 | 352.3 | 87.6 | 44.9 |
| Routing | none (fast path) | 122.0 | 1,481.6 | 210.0 | 860.2 | 226.9 | 116.2 |
| Routing | 25 simple queues | 100.5 | 1,220.5 | 103.9 | 425.6 | 106.6 | 54.6 |
| Routing | 25 ip filter rules | 56.8 | 689.8 | 59.6 | 244.1 | 60.5 | 31.0 |
- All tests are done with Xena Networks specialized test equipment (XenaBay),and done according to RFC2544 (Xena2544)
- Max throughput is determined with 30+ second attempts with 0,1% packet loss tolerance in 64, 512, 1518 byte packet sizes
- Test results show device maximum performance, and are reached using mentioned hardware and software configuration, different configurations most likely will result in lower results
