Discontinued
RB1100AHx2
1U rackmount, 13x Gigabit Ethernet, 1066MHz Dual Core CPU, 2GB RAM, RouterOS L6
PoE

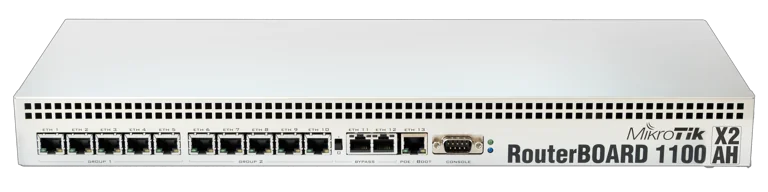

RB1100AHx2
RB1100AHx2 is 1U rackmount Gigabit Ethernet router - with a dual core CPU, it can reach up to a million packets per second and supports hardware encryption!
It has thirteen individual gigabit Ethernet ports, two 5-port switch groups, and includes Ethernet bypass capability. 2GB of SODIMM RAM are included, there is one microSD card slot, a beeper and a serial port.
The RB1100AHx2 comes preinstalled in a 1U aluminium rackmount case, power supply and power plug, assembled and ready to deploy.
Specification
Specifications
- Product code RB1100AHx2
- Suggested price $349.00
- Architecture PPC
- CPU P202ASSE2KFB
- CPU core count 2
- CPU nominal frequency 1066 MHz
- CPU Threads count 2
- Switch chip model AR8327-BL1A-R
- Dimensions 1U case: 44 x 176 x 442 mm, 1200g. Board only: 365g
- RouterOS license 6
- Operating System RouterOS
- Size of RAM 2 GB
- Storage size 128 MB
- Storage type NAND
- MTBF Approximately 200'000 hours at 25C
- Tested ambient temperature -35°C to 70°C
Powering
- Number of AC inputs 1
- AC input range 100-240
- Number of DC inputs 2 (PoE-IN, 2-pin terminal)
- 2-pin terminal input Voltage 7-28 V
- Max power consumption 25 W
- PoE in Passive PoE
- Cooling type 2 fans
- PoE in input Voltage 10-28 V
Ethernet
- 10/100/1000 Ethernet ports 13
Peripherals
- Memory card type microSD
- Memory Cards 1
- Serial console port RS232
Other
- CPU temperature monitor Yes
- Current Monitor Yes
- PCB temperature monitor Yes
- Voltage Monitor Yes
- Beeper Yes
Included parts
Note
The device has an operating system preinstalled and licensed. No separate purchase is necessary and the product is ready to use. The device includes free software updates for the life of the product or a minimum of 5 years starting from date of purchase.
Ethernet test results
| RB1100AHx2 | P2020 1G all port test | ||||||
| Mode | Configuration | 1518 byte | 512 byte | 64 byte | |||
| kpps | Mbps | kpps | Mbps | kpps | Mbps | ||
| Bridging | none (fast path) | 406.0 | 4,930.5 | 704.0 | 2,883.6 | 1,690.0 | 865.3 |
| Bridging | 25 bridge filter rules | 308.0 | 3,740.4 | 396.0 | 1,622.0 | 412.0 | 210.9 |
| Routing | none (fast path) | 345.0 | 4,189.7 | 704.0 | 2,883.6 | 1,495.0 | 765.4 |
| Routing | 25 simple queues | 258.0 | 3,133.2 | 616.0 | 2,523.1 | 654.0 | 334.8 |
| Routing | 25 ip filter rules | 243.0 | 2,951.0 | 262.0 | 1,073.2 | 278.0 | 142.3 |
- All tests are done with Xena Networks specialized test equipment (XenaBay),and done according to RFC2544 (Xena2544)
- Max throughput is determined with 30+ second attempts with 0,1% packet loss tolerance in 64, 512, 1518 byte packet sizes
- Test results show device maximum performance, and are reached using mentioned hardware and software configuration, different configurations most likely will result in lower results
IPsec test results
| RB1100AHx2 | RB1100AHx2 IPsec throughput | ||||||
| Mode | Configuration | 1400 byte | 512 byte | 64 byte | |||
| kpps | Mbps | kpps | Mbps | kpps | Mbps | ||
| Single tunnel | AES-128-CBC + SHA1 | 74.0 | 828.8 | 83.9 | 343.7 | 89.1 | 45.6 |
| 256 tunnels | AES-128-CBC + SHA1 | 86.9 | 973.3 | 93.5 | 383.0 | 95.7 | 49.0 |
| 256 tunnels | AES-128-CBC + SHA256 | 86.9 | 973.3 | 93.5 | 383.0 | 95.7 | 49.0 |
| 256 tunnels | AES-256-CBC + SHA1 | 85.7 | 959.8 | 92.5 | 378.9 | 95.6 | 48.9 |
| 256 tunnels | AES-256-CBC + SHA256 | 85.7 | 959.8 | 92.5 | 378.9 | 95.6 | 48.9 |
- All tests are done with Xena Networks specialized test equipment (XenaBay),and done according to RFC2544 (Xena2544)
- Max throughput is determined with 30+ second attempts with 0,1% packet loss tolerance in 64, 512, 1400 byte packet sizes
- Test results show device maximum performance, and are reached using mentioned hardware and software configuration, different configurations most likely will result in lower results

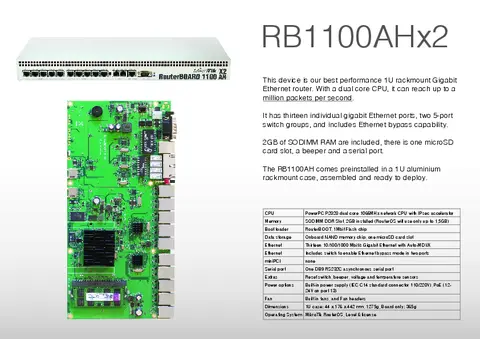

Documents
