RB1100AH
High speed rackmount
484000pps
13 Gigabit ports
1Ghz CPU 2GB RAM
Discontinued

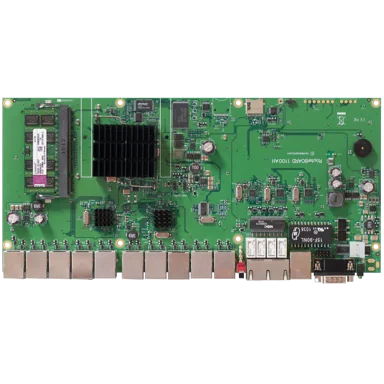

This device is a high performance 1U rackmount Gigabit Ethernet router.
It has thirteen individual gigabit Ethernet ports, two 5-port switch groups, and includes Ethernet bypass capability. RB1100AH also has a SODIMM slot with bundled 2GB of RAM, one microSD card slot, a beeper and a serial port.
Up to half a million packets per second and more than 3Gbit throughput possible!
The RB1100AH comes preinstalled in a 1U aluminium rackmount case, with power supply and power plug, assembled and ready to deploy.
Specifications
| Details | |
|---|---|
| Product code | RB1100AH |
| CPU nominal frequency | 1 GHz |
| Dimensions | 1U case: 44 x 176 x 442 mm, 1200g. Board only: 365g |
| RouterOS license | 6 |
| Operating System | RouterOS |
| Storage size | 128 MB |
| Storage type | NAND |
| MTBF | Approximately 200'000 hours at 25C |
| Tested ambient temperature | -25℃ to +65℃ |
| Suggested price | $395.00 |
Powering
| Details | |
|---|---|
| Max power consumption without attachments | 20W |
| PoE in | Passive PoE |
Ethernet
| Details | |
|---|---|
| 10/100/1000 Ethernet ports | 13 |
Peripherals
| Details | |
|---|---|
| Memory card type | microSD |
| Memory Cards | 1 |
| Serial console port | RS232 |
Other
| Details | |
|---|---|
| CPU temperature monitor | Yes |
| Current Monitor | Yes |
| PCB temperature monitor | Yes |
| Voltage Monitor | Yes |
The device has an operating system preinstalled and licensed. No separate purchase is necessary and the product is ready to use. The device includes free software updates for the life of the product or a minimum of 5 years starting from date of purchase..
