    RB1100 Top of the line rackmount 13 Gigabit ports Two bypass ports

    The top of the line core router.

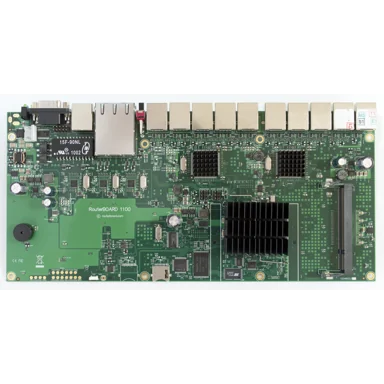

    The heart of this device is a new state of the art PowerPC networking processor which places this device right on top of our product line.

    It has thirteen individual gigabit ethernet ports, two 5-port switch groups, and includes ethernet bypass capability.

    RB1100 also has a SODIMM RAM slot for memory, one microSD card slot, a beeper and a serial port.

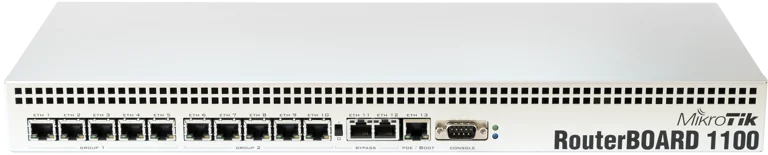

    The RB1100 comes in a 1U aluminium rackmount case, and includes power supply.

     Send purchase questions

    Specifications

    Details
    Product code RB1100
    Architecture PPC
    CPU MPC8533VTALF
    CPU nominal frequency 800MHz
    Dimensions 1U case: 45x75x440mm
    License level 6
    Size of RAM 512MB
    Tested ambient temperature -20 to +45C
    Suggested price $399.00

    Powering

    Details
    PoE in 12-24VDC
    Number of DC inputs 1

    Ethernet

    Details
    10/100 Ethernet ports 13
    10/100/1000 Ethernet ports Yes

    Peripherals

    Details
    Memory card type microSD

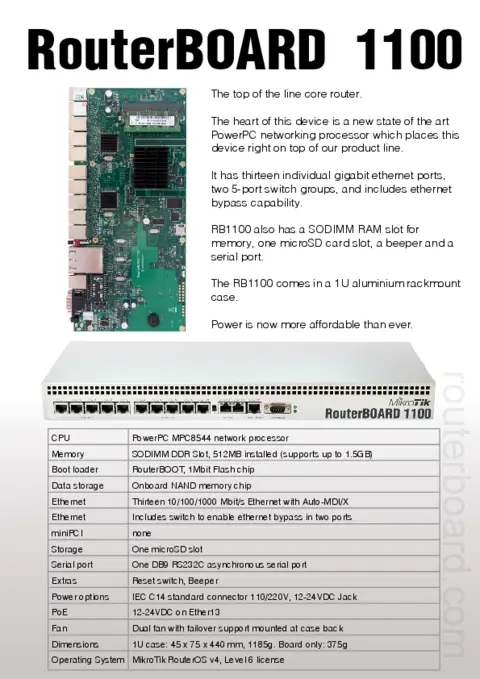

    BrochureOpen
