Discontinued

R52nM

2.4/5Ghz miniPCI 802.11a/b/g/n dual chain, 2x MMCX

R52nM
Product image
Product image thumbnail

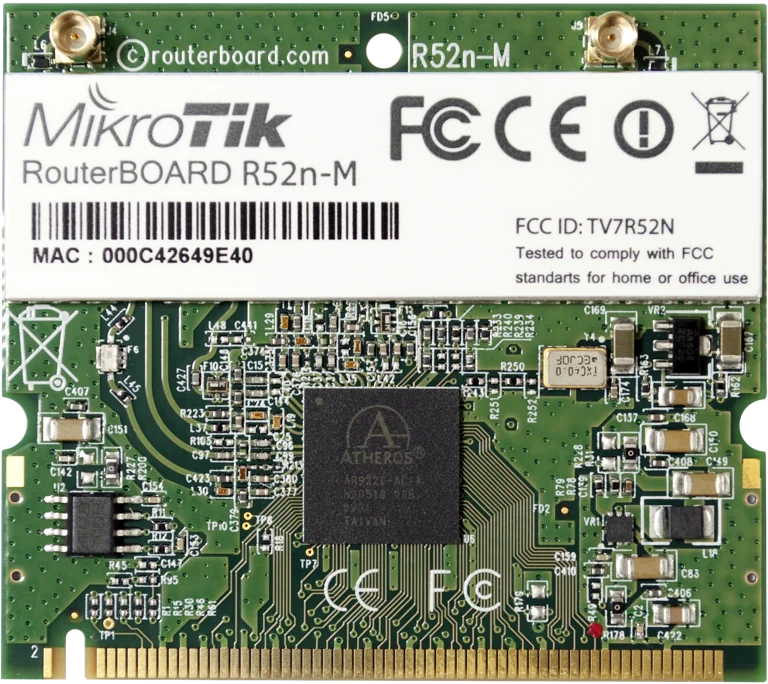

The RouterBOARD R52n-M miniPCI network adapter provides leading 802.11a/b/g/n performance in both 2GHz and 5GHz bands, supporting up to 300Mbps physical data rates and up to 200Mbps of actual user throughput on both the uplink and downlink. This card features the sturdy MMCX connectors for higher durability. Adding Wireless N to your Wireless device, it provides higher efficiency for everyday activities such as local network file transfers, Internet browsing, and media streaming.

Card has two MMCX connectors for external antennas

Specification

Specifications
  • Product code R52N-M
  • Suggested price $49.00
  • Tested ambient temperature -50℃ to +70℃
Wireless specifications
  • 2GHz Yes
  • 5GHz Yes

Documents

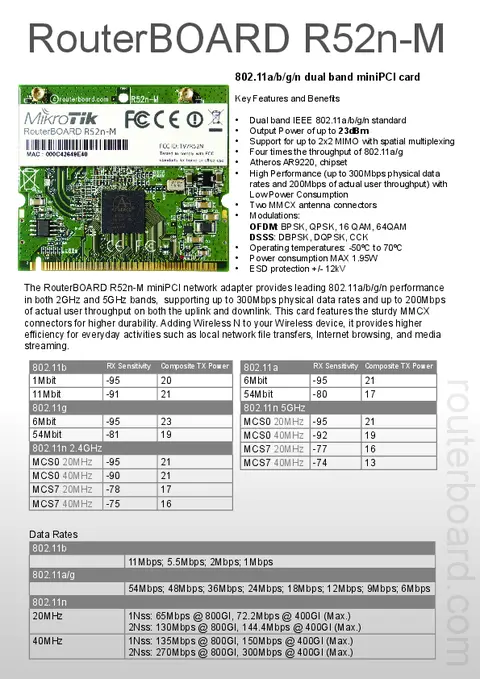

Brochure

Read product brochure and find out about features and specification
.PDF
Brochure PDF first page
