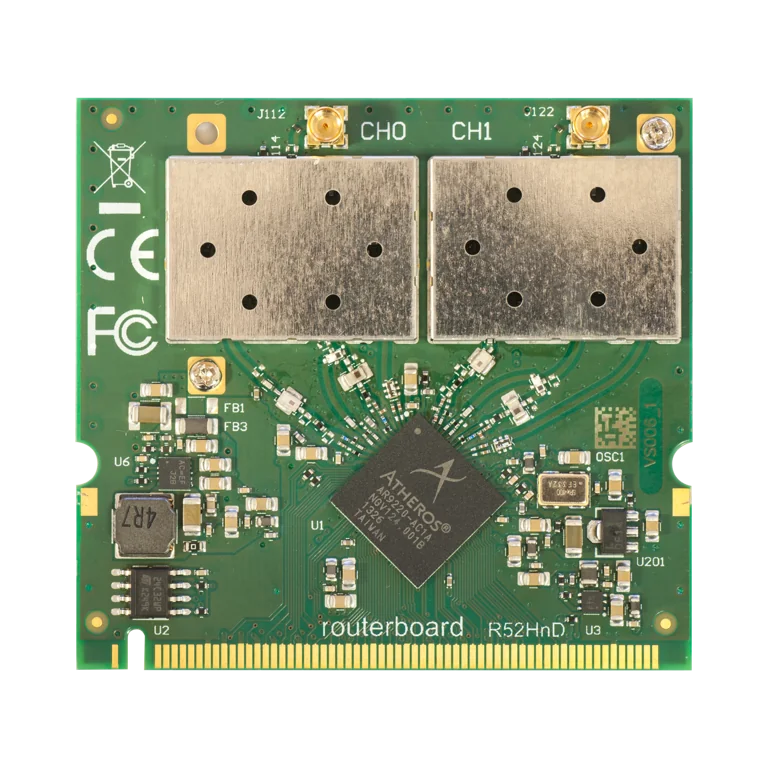

R52HnD
The R52HnD is an update to our popular R52Hn miniPCI wireless card. It works in either 2.4 or 5GHz and now has even higher power and improved ESD protection (+/- 15 kV)
Specification
Specifications
- Product code R52HnD
- Suggested price $59.00
- Tested ambient temperature -40 ... +70C
- MTBF Approximately 100'000 hours at 25C
Powering
- Max power consumption 7 W
Wireless specifications
- 2GHz Yes
- 5GHz Yes
- Wireless 2.4 GHz/5 GHz Max data rate 300 Mbit/s
- Wireless 2.4 GHz/5 GHz Number of chains 2
- Wireless 2.4 GHz/5 GHz standards 802.11a/b/g/n
- Wireless 2.4 GHz/5 GHz chip model AR9220
- Wireless 2.4 GHz/5 GHz generation Wi-Fi 4
Certification & Approvals
- Certification FCC, IC
- IP IP00
Wireless Specification
2.4 GHz
Transmit (dBm)
Receive Sensitivity
1MBit/s
26
-100
11MBit/s
26
-94
6MBit/s
26
-96
54MBit/s
25
-80
MCS0
23
-96
MCS7
23
-78
5 GHz
Transmit (dBm)
Receive Sensitivity
6MBit/s
26
-96
54MBit/s
25
-80
MCS0
23
-96
MCS7
21
-78
