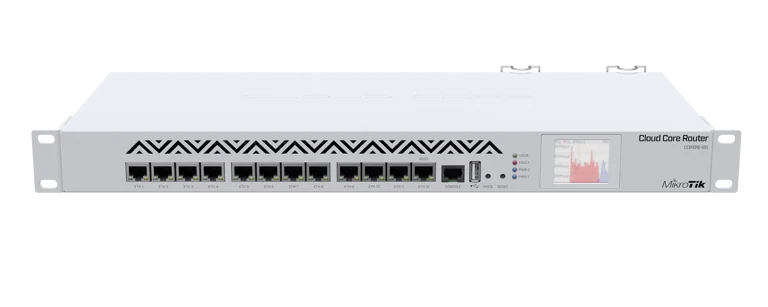

    CCR1016-12G

    CCR1016 is an industrial grade super fast router with cutting edge 16 core CPU. If you need many millions of packets per second - Cloud Core Router is your best choice.

    The cloud core router is powered by RouterOS, a fully featured routing operating system which has been continuously improved for fifteen years. Dynamic routing, hotspot, firewall, MPLS, VPN, advanced quality of service, load balancing and bonding, real-time configuration and monitoring - just a few of the vast number of features supported by RouterOS.

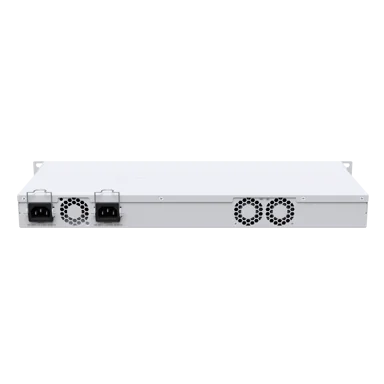

    The device is available with a 1U rackmount case, has twelve Gigabit ethernet ports, a serial console cable and a USB port. The CCR1016-12G has two SODIMM slots, by default it is shipped with 2GB of RAM, but has no memory limit in RouterOS (will accept and utilize 16GB or more). It comes with power supply and 1U rackmount case.

    General

    Details
    Product code CCR1016-12G
    CPU TLR4-01680CH-12CE-A3b
    CPU core count 16
    CPU nominal frequency 1.2 GHz
    CPU Threads count 16
    Dimensions 355x145x44mm
    License level 6
    Operating System RouterOS v6 (64bit)
    Size of RAM 2 GB
    Storage size 512 MB
    Storage type NAND
    Tested ambient temperature -20C .. +60C
    Architecture TILE
    Suggested price $645.00

    Powering

    Details
    Max Power consumption 48W
    Number of AC inputs 1
    AC input range 100-240 V

    Ethernet

    Details
    10/100/1000 Ethernet ports 12

    Peripherals

    Details
    Number of USB ports 1
    Serial port RS232
    USB Power Reset Yes
    USB slot type microUSB type AB

    Other

    Details
    CPU temperature monitor Yes
    Current Monitor Yes
    PCB temperature monitor Yes
    Voltage Monitor Yes

    More info

    Ethernet test results

    CCR1016-12GTile 16 core max possible throughput test
    ModeConfiguration1518 byte512 byte64 byte
    kppsMbpskppsMbpskppsMbps
    Bridgingnone (fast path)975.211842.82819.511548.717857.19142.8
    Bridging25 bridge filter rules975.211842.82173.98904.32282.41168.6
    Routingnone (fast path)975.211842.82819.511548.7162668328.2
    Routing25 simple queues975.211842.82819.511548.72932.91501.6
    Routing25 ip filter rules975.211842.812695197.81284.5657.7
    1. All tests are done with Xena Networks specialized test equipment (XenaBay),and done according to RFC2544 (Xena2544)
    2. Max throughput is determined with 30+ second attempts with 0,1% packet loss tolerance in 64, 512, 1518 byte packet sizes
    3. Values in Italic indicate that max throughput was reached without maxing out CPU, but because board interface configuration was maxed out
    4. Test results show device maximum performance, and are reached using mentioned hardware and software configuration, different configurations most likely will result in lower results

    IPsec test results

    CCR1016-12GCCR1016 series IPsec throughput
    ModeConfiguration1400 byte512 byte64 byte
    kppsMbpskppsMbpskppsMbps
    Single tunnelAES-128-CBC + SHA1130.51461.6123.4505.4115.459.1
    256 tunnelsAES-128-CBC + SHA1363.84074.6413.81694.9425.9218.1
    256 tunnelsAES-128-CBC + SHA256357.64005.1399.21635.1425.9218.1
    256 tunnelsAES-256-CBC + SHA1354.93974.9399.21635.1425.9218.1
    256 tunnelsAES-256-CBC + SHA256348.03897.6384.61575.3403.8206.7
    1. All tests are done with Xena Networks specialized test equipment (XenaBay),and done according to RFC2544 (Xena2544)
    2. Max throughput is determined with 30+ second attempts with 0,1% packet loss tolerance in 64, 512, 1400 byte packet sizes
    3. Test results show device maximum performance, and are reached using mentioned hardware and software configuration, different configurations most likely will result in lower results
