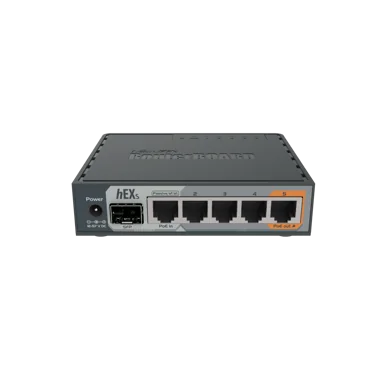

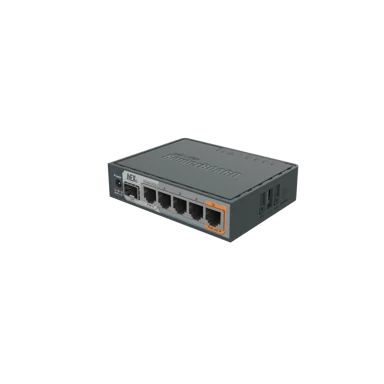

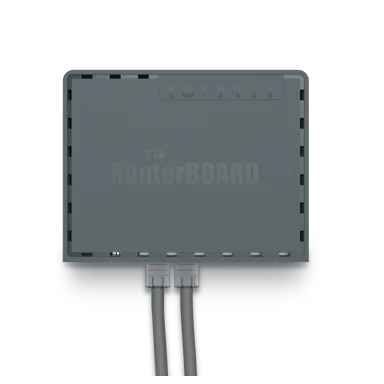

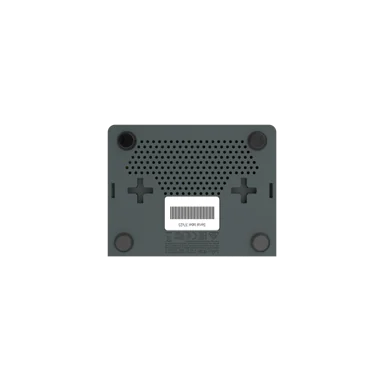

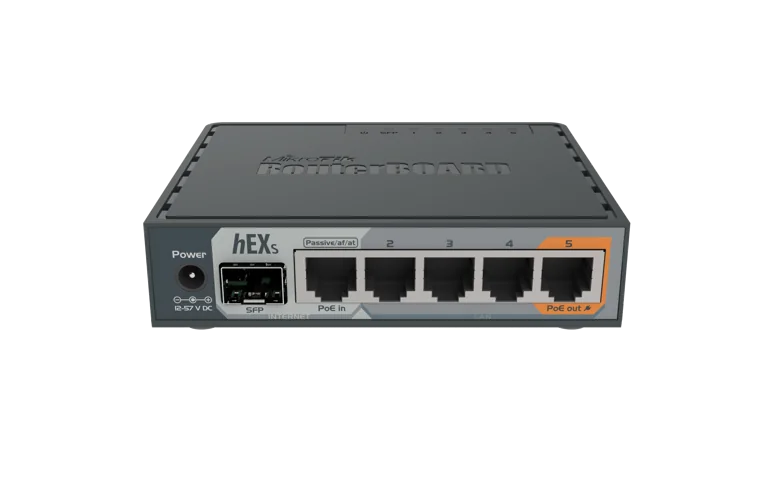

hEX S
5x Gigabit Ethernet, SFP, Dual Core 880MHz CPU, 256MB RAM, USB, microSD, RouterOS L4, IPsec hardware encryption support and The Dude server package
hEX S is a five port Gigabit Ethernet router for locations where wireless connectivity is not required. Compared to the hEX, the hEX S also features an SFP port and PoE output on the last port.
It is affordable, small and easy to use, but at the same time comes with a very powerful dual core 880 MHz CPU and 256 MB RAM, capable of all the advanced configurations that RouterOS supports. The device has a USB 2.0, PoE output for Ethernet port #5 and a 1.25Gbit/s SFP cage. The port #5 can power other passive PoE capable devices with the same voltage as applied to the unit
IPsec hardware encryption and The Dude server package is supported, microSD slot on it provides improved r/w speed for file storage and Dude.
Specification
- Product code RB760iGS
- Suggested price $79.00
- Architecture MMIPS
- CPU MT7621A
- CPU core count 2
- CPU nominal frequency 880 MHz
- CPU Threads count 4
- Switch chip model MT7621A
- Dimensions 113 x 89 x 28 mm
- RouterOS license 4
- Operating System RouterOS
- Size of RAM 256 MB
- Storage size 16 MB
- Storage type FLASH
- MTBF Approximately 100'000 hours at 25C
- Tested ambient temperature -40°C to 70°C
- Number of DC inputs 2 (DC jack, PoE-IN)
- DC jack input Voltage 12-57 V
- Max power consumption 24 W
- Max power consumption without attachments 6 W
- PoE in 802.3af/at
- Cooling type Passive
- PoE in input Voltage 12-57 V
- PoE-out ports Ether5
- PoE out Passive PoE up to 57V
- Low voltage PoE-Out current limit 500 mA
- High voltage PoE-Out current limit 500 mA
- Max total out (A) 500 mA
- 10/100/1000 Ethernet ports 5
- SFP ports 1
- Memory card type microSD
- Memory Cards 1
- Number of USB ports 1
- USB Power Reset Yes
- USB slot type USB type A
- Max USB current (A) 1
- PCB temperature monitor Yes
- Voltage Monitor Yes
- Mode button Yes
- Beeper Yes
- Certification CE, EAC, ROHS
- IP IP20
| RB760iGS | MT7621A (880Mhz) 1G all port test | ||||||
| Mode | Configuration | 1518 byte | 512 byte | 64 byte | |||
| kpps | Mbps | kpps | Mbps | kpps | Mbps | ||
| Bridging | none (fast path) | 145.3 | 1764 | 446.8 | 1830.1 | 658.6 | 358.3 |
| Bridging | 25 bridge filter rules | 118.4 | 1437.8 | 122.2 | 500.4 | 121.5 | 66.1 |
| Routing | none (fast path) | 148.4 | 1802.2 | 450.1 | 1843.6 | 601.2 | 327.1 |
| Routing | 25 simple queues | 114.5 | 1391 | 119.3 | 488.5 | 119.3 | 64.9 |
| Routing | 25 ip filter rules | 63.1 | 766.4 | 64.8 | 265.2 | 64.4 | 35 |
- All tests are done with Xena Networks specialized test equipment (XenaBay),and done according to RFC2544 (Xena2544)
- Max throughput is determined with 30+ second attempts with 0,1% packet loss tolerance in 64, 512, 1518 byte packet sizes
- Test results show device maximum performance, and are reached using mentioned hardware and software configuration, different configurations most likely will result in lower results
| RB760iGS | MT7621A IPsec throughput | ||||||
| Mode | Configuration | 1400 byte | 512 byte | 64 byte | |||
| kpps | Mbps | kpps | Mbps | kpps | Mbps | ||
| Single tunnel | AES-128-CBC + SHA1 | 20.7 | 231.8 | 21.5 | 88.1 | 21.3 | 11.6 |
| 256 tunnels | AES-128-CBC + SHA1 | 12.1 | 135.5 | 12.3 | 50.4 | 12.7 | 6.9 |
| 256 tunnels | AES-128-CBC + SHA256 | 12.2 | 136.6 | 12.4 | 50.8 | 12.4 | 6.7 |
| 256 tunnels | AES-256-CBC + SHA1 | 12.1 | 135.5 | 12.3 | 50.4 | 12.4 | 6.7 |
| 256 tunnels | AES-256-CBC + SHA256 | 10.5 | 117.6 | 12.6 | 51.6 | 12.4 | 6.7 |
- All tests are done with Xena Networks specialized test equipment (XenaBay),and done according to RFC2544 (Xena2544)
- Max throughput is determined with 30+ second attempts with 0,1% packet loss tolerance in 64, 512, 1400 byte packet sizes
- Test results show device maximum performance, and are reached using mentioned hardware and software configuration, different configurations most likely will result in lower results

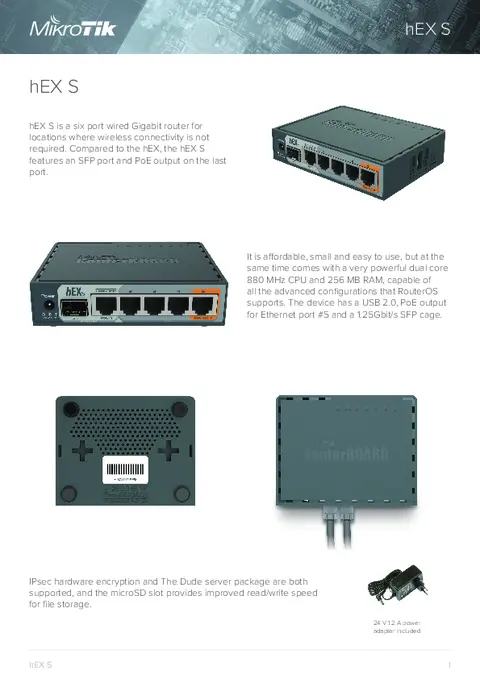

Documents
