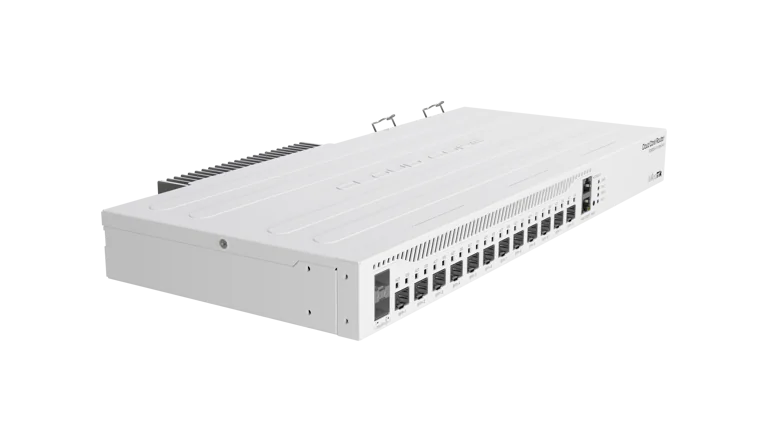

    CCR2004-1G-12S+2XS The Connectivity Router - your best companion when it comes to SFP, SFP+ and SFP28 management! 1, 10 and 25 Gbps ports in a single device to make your life easier.

    The “Improvise. Adapt. Overcome.” mindset can be very helpful, but sometimes you simply need a device that works and solves the problem without additional tinkering. The CCR2004-1G-12S+2XS does just that – forget about all connectivity troubles and expand your setup in any way you please. This handy router features 12 x 10G SFP+ and 2 x 25G SFP28 ports.

    CCR2004-1G-12S+2XS is our router with the most powerful single-core performance so far. It provides incredible results in single tunnel (up to 3.4 Gbps) and BGP feed processing.

    Be prepared for anything: 10G, 40G and now 25G! Paired with such MikroTik multiport products as CRS317-1G-16S+RM, CRS312-4C+8XG-RM and CRS326-24S+2Q+RM, your networking setup will know no bounds. Performance-wise, CCR2004-1G-12S+2XS is on par with the renowned CCR1009/CCR1016 routers. And with dual redundant power supply you can forget about unexpected downtime! With its elaborate port configuration, the new CCR2004-1G-12S+2XS is the perfect addition to any professional networking arsenal – it will save you tons of time in some tricky situations! Size of RAM in RouterOS v6 1792MB ECC / RouterOS v7 4GB ECC

     Send purchase questions

    Specifications

    Details
    Product code CCR2004-1G-12S+2XS
    Architecture ARM 64bit
    CPU AL32400
    CPU core count 4
    CPU nominal frequency 1700 MHz
    Dimensions 443 x 224 x 44 mm
    License level 6
    Operating System RouterOS
    Size of RAM 4 GB
    Storage size 128 MB
    Storage type NAND
    Tested ambient temperature -20°C to 60°C
    Suggested price $595.00

    Powering

    Details
    Number of AC inputs 2
    AC input range 100-240
    Max power consumption 49 W
    Max power consumption without attachments 32 W

    Ethernet

    Details
    10/100/1000 Ethernet ports 1

    Fiber

    Details
    SFP+ ports 12
    Number of 25G SFP28 ports 2

    Peripherals

    Details
    Serial port RJ45

    Other

    Details
    CPU temperature monitor Yes
    PCB temperature monitor Yes
    Voltage Monitor Yes

    Certification & Approvals

    Details
    Certification CE/RED, EAC, ROHS

    Included parts

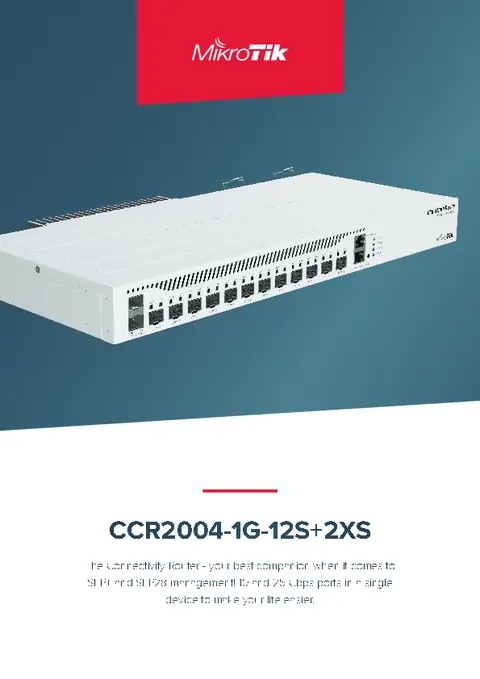

    BrochureOpen
    Quick GuideOpen
    Quick GuideOpen
    User ManualOpen
    RouterOS current releaseDownload
    RouterBoot firmware Download
    Block DiagramOpen
    SFP compatibility listOpen
    RouterOS software manualOpen
    Declaration of conformityOpen (CE)

    High resolution images

    Ethernet test results

    CCR2004-1G-12S+2XSAL32400 all port test
    ModeConfiguration1518 byte512 byte64 byte
    kppsMbpskppsMbpskppsMbps
    Bridgingnone (fast path)324839444642126300115525915
    Bridging25 bridge filter rules177421543181574341736889
    Routingnone (fast path)323139237634425985103225285
    Routing25 simple queues2214268872277932722591157
    Routing25 ip filter rules109613310110845381136582
    1. All tests are done with Xena Networks specialized test equipment (XenaBay),and done according to RFC2544 (Xena2544)
    2. Max throughput is determined with 30+ second attempts with 0,1% packet loss tolerance in 64, 512, 1518 byte packet sizes
    3. Test results show device maximum performance, and are reached using mentioned hardware and software configuration, different configurations most likely will result in lower results

    IPsec test results

    CCR2004-1G-12S+2XSAL32400 IPsec throughput
    ModeConfiguration1400 byte512 byte64 byte
    kppsMbpskppsMbpskppsMbps
    Single tunnelAES-128-CBC + SHA1303.63400.3353.61448.3354.7181.6
    256 tunnelsAES-128-CBC + SHA1302.03382.4378.81551.6376.4192.7
    256 tunnelsAES-128-CBC + SHA256302.03382.4378.81551.6376.4192.7
    256 tunnelsAES-256-CBC + SHA1300.33363.4374.51534.0374.5191.7
    256 tunnelsAES-256-CBC + SHA256300.33363.4374.51534.0374.5191.7
    1. All tests are done with Xena Networks specialized test equipment (XenaBay),and done according to RFC2544 (Xena2544)
    2. Max throughput is determined with 30+ second attempts with 0,1% packet loss tolerance in 64, 512, 1400 byte packet sizes
    3. Test results show device maximum performance, and are reached using mentioned hardware and software configuration, different configurations most likely will result in lower results
