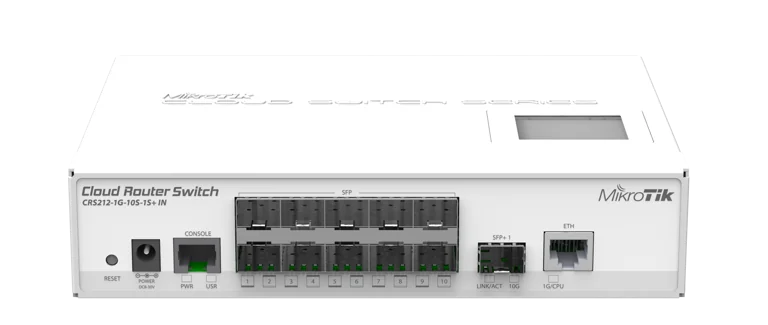

    CRS212-1G-10S-1S+IN Smart Switch, 1x Gigabit LAN, 10x SFP cages, 1x SFP+ cage, LCD, 400MHz CPU, 64MB RAM, Metal desktop case, RouterOS L5

    Discontinued


    Cloud Router Switch 212-1G-10S-1S+IN is new “small size low cost” member of our CRS series. It comes with one Gigabit Ethernet RJ45 port, ten SFP cages and one 10G SFP+ cage, as well as LCD panel and serial port (RJ45). Product includes indoor desktop case and power supply. Special ears are provided for mounting the unit in rack.

    Our CRS series combines the best features of a fully functional router and a Layer 3 switch, is powered by the familiar RouterOS. All the specific Switch configuration options are available in a special Switch menu, but if you want, ports can be removed from the switch configuration, and used for routing purposes.

     Send purchase questions

    Specifications

    Details
    Product code CRS212-1G-10S-1S+IN
    Architecture MIPSBE
    CPU QCA8519
    CPU core count 1
    CPU nominal frequency 400 MHz
    Switch chip model QCA8519
    Dimensions 200 x 142 x 44 mm
    RouterOS license 5
    Operating System RouterOS
    Size of RAM 64 MB
    Storage size 16 MB
    Storage type FLASH
    MTBF Approximately 200'000 hours at 25C
    Tested ambient temperature -40°C to 70°C
    Suggested price $219.00

    Powering

    Details
    Number of DC inputs 1 (DC jack)
    DC jack input Voltage 8-30 V
    Max power consumption 20 W
    Cooling type 1 fan

    Ethernet

    Details
    10/100/1000 Ethernet ports 1

    Fiber

    Details
    SFP ports 10
    SFP+ ports 1

    Peripherals

    Details
    Serial console port RJ45

    Other

    Details
    Current Monitor Yes
    PCB temperature monitor Yes
    Voltage Monitor Yes
    Beeper Yes

    Certification & Approvals

    Details
    Certification CE, EAC, ROHS

    Included parts

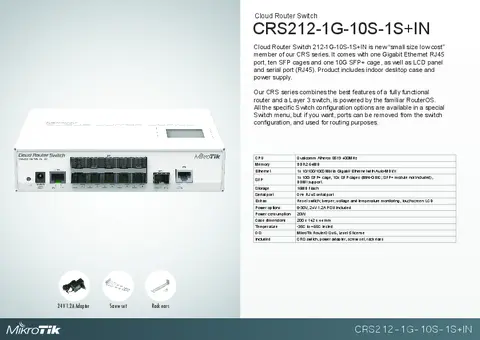

    BrochureOpen
    Quick GuideOpen
    User ManualOpen
    RouterOS current releaseDownload
    Block diagramOpen
    SFP compatibility listOpen
    RouterOS software manualOpen
    Declaration of conformityOpen (CE)

    High resolution images

    Switching results

    CRS212-1G-10S-1S+INr2
    Mode Configuration 1518 byte 512 byte 64 byte
    kpps Mbps kpps Mbps kpps Mbps
    Switching Non blocking Layer 2 throughput 1,706.8 20,726.9 4,934.2 20,210.5 31,250.0 16,000.0
    Switching Non blocking Layer 2 capacity 1,706.8 41,453.8 4,934.2 40,421.1 31,250.0 32,000.0
    Switching Non blocking Layer 1 throughput 1,706.8 21,000.0 4,934.2 21,000.0 31,250.0 21,000.0
    Switching Non blocking Layer 1 capacity 1,706.8 42,000.0 4,934.2 42,000.0 31,250.0 42,000.0

    Ethernet test results

    CRS212-1G-10S-1S+INr2QCA8519 Max possible throughput test
    ModeConfiguration1518 byte512 byte64 byte
    kppsMbpskppsMbpskppsMbps
    Bridgingnone (fast path)26.7324.228.6117.124.512.5
    Bridging25 bridge filter rules21.4259.922.491.822.211.4
    Routingnone (fast path)23.0279.323.596.324.512.5
    Routing25 simple queues19.6238.022.491.821.010.8
    Routing25 ip filter rules7.995.910.442.610.85.5
    1. All tests are done with Xena Networks specialized test equipment (XenaBay),and done according to RFC2544 (Xena2544)
    2. Max throughput is determined with 30+ second attempts with 0,1% packet loss tolerance in 64, 512, 1518 byte packet sizes
    3. Test results show device maximum performance, and are reached using mentioned hardware and software configuration, different configurations most likely will result in lower results

    The device has an operating system preinstalled and licensed. No separate purchase is necessary and the product is ready to use. The device includes free software updates for the life of the product or a minimum of 5 years starting from date of purchase..
