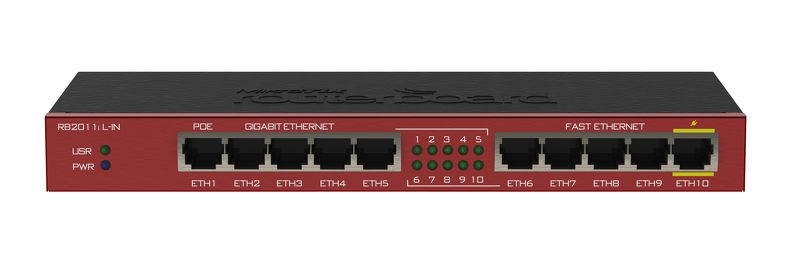

Name | RB2011iL-IN | RB2011iLS-IN | RB2011iL-RM |
10/100 Ethernet ports | 5 | 5 | 5 |
10/100/1000 Ethernet ports | 5 | 5 | 5 |
Architecture | MIPSBE | MIPSBE | MIPSBE |
Beeper | Yes | Yes | Yes |
CPU | AR9344 | AR9344 | AR9344 |
CPU core count | 1 | 1 | 1 |
CPU nominal frequency | 600 MHz | 600 MHz | 600 MHz |
Can be used indoors | Yes | Yes | Yes |
Certification | N/A | N/A | CE, EAC, ROHS |
Cooling type | N/A | N/A | Passive |
DC jack input Voltage | 8-30 V | 8-30 V | 8-30 V |
Dimensions | 230x90x25mm | 230x90x25mm | 443 x 92 x 44 mm |
IP | N/A | N/A | IP20 |
MTBF | Approximately 100'000 hours at 25C | Approximately 200'000 hours at 25C | Approximately 100'000 hours at 25C |
Max out per port output (input 18-30 V) | 500 mA | 510 mA | 510 mA |
Max power consumption | 18 W | 18 W | 18 W |
Max power consumption without attachments | 6 W | 6 W | 6 W |
Max total out (A) | 500 mA | 510 mA | 510 mA |
Number of DC inputs | 2 | 2 | 2 |
Operating System | RouterOS | RouterOS | RouterOS |
PoE in | Passive PoE | Passive PoE | Passive PoE |
PoE in input Voltage | 8-30 V | 8-30 V | 8-30 V |
PoE out | Passive PoE | Passive PoE | Passive PoE |
PoE-out ports | Ether10 | Ether10 | Ether10 |
RouterOS license | 4 | 4 | 4 |
SFP DDMI | N/A | Yes | N/A |
SFP ports | N/A | 1 | N/A |
Size of RAM | 64 MB | 64 MB | 64 MB |
Storage size | 128 MB | 128 MB | 128 MB |
Storage type | NAND | NAND | NAND |
Switch chip model | AR8327-BL1A-R | AR8327-BL1A-R | AR8327-BL1A-R |
Tested ambient temperature | -35C to +65C | -35C to +65C | -40°C to 60°C |
