MikroTik Routers and Wireless - Products: RB2011iL-RM

Discontinued

The RB2011 is a low cost multi port device series. Designed for indoor use, and available in many different cases, with a multitude of options.

The RB2011 is powered by RouterOS, a fully featured routing operating system which has been continuously improved for fifteen years. Dynamic routing, hotspot, firewall, MPLS, VPN, advanced quality of service, load balancing and bonding, real-time configuration and monitoring - just a few of the vast number of features supported by RouterOS.

The RB2011iL-RM includes a new feature - power injector on Ethernet port 10 - it can power other PoE capable devices with the same voltage as applied to the unit. Less power adapters and cables to worry about! Maximum load on the port is 500mA. It is powered by the new Atheros 600MHz 74K MIPS network processor, has 64MB of RAM and a Level4 RouterOS license, as well as five Gigabit Ethernet ports and five Fast Ethernet ports for unbeliveable USD 99!

RouterBOARD 2011iL-RM comes with 1U rackmount enclosure and power supply.

Send purchase questions

Specifications

Details
Product code	RB2011iL-RM
Architecture	MIPSBE
CPU	AR9344
CPU core count	1
CPU nominal frequency	600 MHz
Switch chip model	AR8327-BL1A-R
Dimensions	443 x 92 x 44 mm
RouterOS license	4
Operating System	RouterOS
Size of RAM	64 MB
Storage size	128 MB
Storage type	NAND
MTBF	Approximately 100'000 hours at 25C
Tested ambient temperature	-40°C to 60°C
Suggested price	$99.00

Powering

Details
Number of DC inputs	2 (DC jack, PoE-IN)
DC jack input Voltage	8-30 V
Max power consumption	18 W
Max power consumption without attachments	6 W
Cooling type	Passive
PoE in	Passive PoE
PoE in input Voltage	8-30 V

PoE-out

Details
PoE-out ports	Ether10
PoE out	Passive PoE
Max out per port output (input 18-30 V)	510 mA
Max total out (A)	510 mA

Ethernet

Details
10/100 Ethernet ports	5
10/100/1000 Ethernet ports	5

Other

Details
Beeper	Yes

Certification & Approvals

Details
Certification	CE, EAC, ROHS
IP	IP20

Included parts

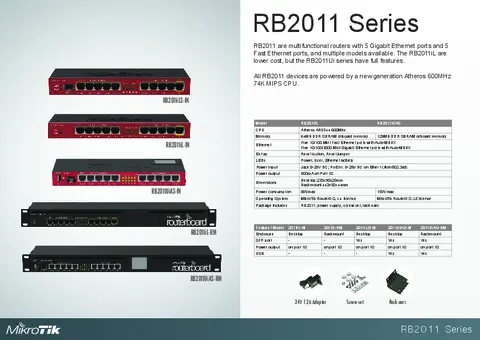

BrochureOpen

Quick GuideOpen

User ManualOpen

RouterOS current releaseDownload

Block DiagramOpen

RouterOS software manualOpen

Declaration of conformityOpen (CE)

High resolution images

Ethernet test results

RB2011iL-RM		AR9344 1G&100M all port test
Mode	Configuration	1518 byte		512 byte		64 byte
Mode	Configuration	kpps	Mbps	kpps	Mbps	kpps	Mbps
Bridging	none (fast path)	122.0	1,481.6	232.0	950.3	269.6	138.0
Bridging	25 bridge filter rules	83.6	1,015.2	86.0	352.3	87.6	44.9
Routing	none (fast path)	122.0	1,481.6	210.0	860.2	226.9	116.2
Routing	25 simple queues	100.5	1,220.5	103.9	425.6	106.6	54.6
Routing	25 ip filter rules	56.8	689.8	59.6	244.1	60.5	31.0

All tests are done with Xena Networks specialized test equipment (XenaBay),and done according to RFC2544 (Xena2544)
Max throughput is determined with 30+ second attempts with 0,1% packet loss tolerance in 64, 512, 1518 byte packet sizes
Test results show device maximum performance, and are reached using mentioned hardware and software configuration, different configurations most likely will result in lower results

The device has an operating system preinstalled and licensed. No separate purchase is necessary and the product is ready to use. The device includes free software updates for the life of the product or a minimum of 5 years starting from date of purchase..
