    FiberBox An outdoor switch with five SFP ports

    Discontinued

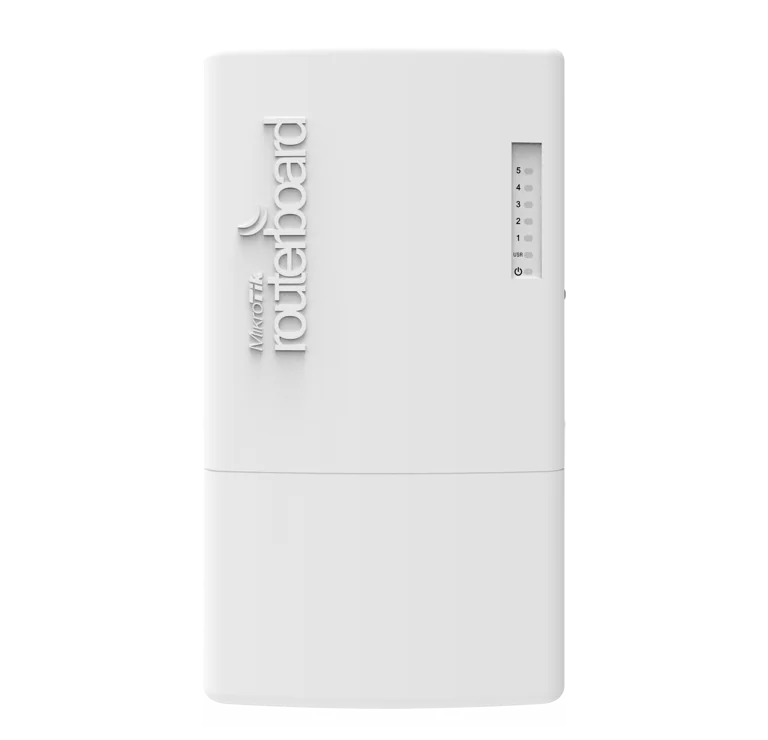

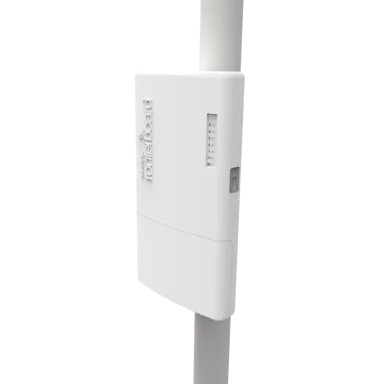

    The Fiberbox is an outdoor switch with five SFP ports, ideal for locations where distance is restricting the use of regular ethernet cables. The device is weatherproof and comes with a hose clamp and zip ties, ready to be installed on high masts and towers.

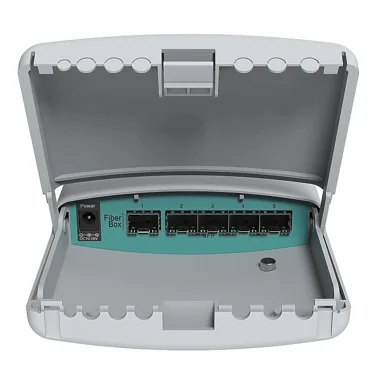

    The package also includes the RJ45 SFP (S-RJ01) copper module already preinstalled in the first port, so you can use ethernet in one of the ports already out of the box. If not needed, remove it to have access to all five SFP ports for using with 1.25 Gbit fiber modules.

     Send purchase questions

    Specifications

    Details
    Product code CRS105-5S-FB
    Architecture MIPSBE
    CPU QCA8511
    CPU core count 1
    CPU nominal frequency 400 MHz
    Switch chip model QCA8511
    Dimensions 125 x 178 x 48 mm
    RouterOS license 5
    Operating System RouterOS
    Size of RAM 128 MB
    Storage size 16 MB
    Storage type FLASH
    MTBF Approximately 100'000 hours at 25C
    Tested ambient temperature -20°C to 70°C
    Suggested price $79.00

    Powering

    Details
    Number of DC inputs 1 (DC jack)
    DC jack input Voltage 9-30 V
    Max power consumption 11 W
    Cooling type Passive

    Fiber

    Details
    SFP ports 5

    Other

    Details
    Mode button Yes

    Certification & Approvals

    Details
    Certification CE, EAC, ROHS

    Included parts

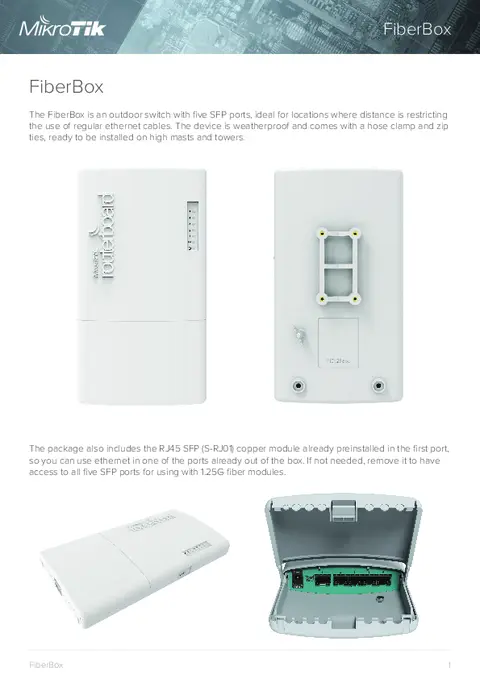

    BrochureOpen
    Quick GuideOpen
    User ManualOpen
    RouterOS current releaseDownload
    Block DiagramOpen
    SFP compatibility listOpen
    RouterOS software manualOpen
    Declaration of conformityOpen (CE)

    High resolution images

    #
    #
    #
    #

    Switching results

    CRS105-5S-FB
    Mode Configuration 1518 byte 512 byte 64 byte
    kpps Mbps kpps Mbps kpps Mbps
    Switching Non blocking Layer 2 throughput 406.4 4,935.0 1,174.8 4,812.0 7,440.5 3,809.5
    Switching Non blocking Layer 2 capacity 406.4 9,870.0 1,174.8 9,624.1 7,440.5 7,619.0
    Switching Non blocking Layer 1 throughput 406.4 5,000.0 1,174.8 5,000.0 7,440.5 5,000.0
    Switching Non blocking Layer 1 capacity 406.4 10,000.0 1,174.8 10,000.0 7,440.5 10,000.0

    Ethernet test results

    CRS105-5S-FBQCA8511 1G all port test
    ModeConfiguration1518 byte512 byte64 byte
    kppsMbpskppsMbpskppsMbps
    Bridgingnone48.0582.973.5301.178.039.9
    Bridging25 bridge filter rules26.1317.028.6117.129.615.2
    Routingnone46.5564.765.7269.171.136.4
    Routing25 simple queues14.5176.116.165.916.88.6
    Routing25 ip filter rules7.894.78.032.88.34.2
    1. All tests are done with Xena Networks specialized test equipment (XenaBay),and done according to RFC2544 (Xena2544)
    2. Max throughput is determined with 30+ second attempts with 0,1% packet loss tolerance in 64, 512, 1518 byte packet sizes
    3. Test results show device maximum performance, and are reached using mentioned hardware and software configuration, different configurations most likely will result in lower results

    The device has an operating system preinstalled and licensed. No separate purchase is necessary and the product is ready to use. The device includes free software updates for the life of the product or a minimum of 5 years starting from date of purchase..
