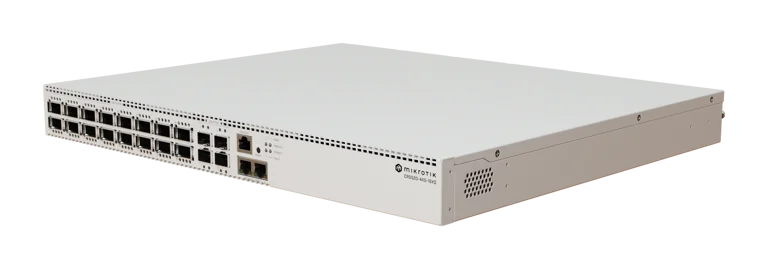

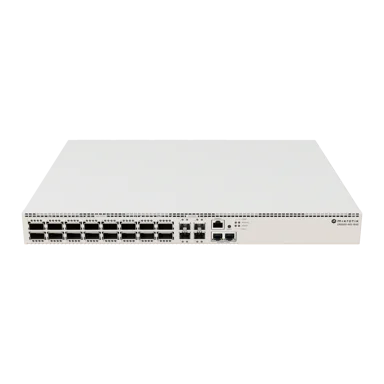

CRS520-4XS-16XQ-RM An ultra-fast enterprise switch with extra processing power due to the CCR series CPU & the best price per 100 Gigabit port on the market!

    Welcome to the forefront of networking: the future-proof CRS520-4XS-16XQ-RM with extra processing power, 4 GB of DDR4 RAM, and the best price per 100 Gigabit port we’ve seen so far.

    With 16x 100 Gigabit QSFP28 ports, 4x 25 Gigabit SFP28 ports, and an extra pair of 10 Gigabit Ethernet ports, this switch can bring a lot of value to complicated enterprise networks, data centers, multimedia studios, and other setups where you would typically use several devices. Now – a single CRS520 can do the trick!

    Avid CCR users might recognize the powerful quad-core ARM CPU running at 2 GHz, and ask – why would a switch need all that power? Two reasons:

    1) CRS520 is more than a switch. You can run OSPF/BGP, out-of-band/management VPNs, ACLs, Jumbo frames and even L3HW Offloaded routing;

    2) Future-proofing: as our friends at Marvell keep expanding the capabilities of their spectacular switch-chips, our in-house software team is busy exploring ways to add even more Hardware Offloaded features. You can expect software updates that will take the CRS520 to the next level! And all that without any paywalls or subscriptions.

    Two hot-swap power supplies and four hot-swap fans for cooling are included.

     Send purchase questions


    Product code CRS520-4XS-16XQ-RM
    Architecture ARM 64bit
    CPU AL52400
    CPU core count 4
    CPU nominal frequency 2 GHz
    Switch chip model 98CX8410
    RouterOS license 5
    Operating System RouterOS v7
    Size of RAM 4 GB
    Storage size 128 MB
    Storage type NAND
    MTBF Approximately 200'000 hours at 25C
    Tested ambient temperature -20°C to 50°C
    Suggested price $2195.00


    Number of AC inputs 2
    AC input range 100-240
    Frequency (Hz) 47-63
    Max power consumption 150 W
    Max power consumption without attachments 123 W
    Cooling type 4 fans


    Number of 1G/2.5G/5G/10G Ethernet ports 2


    Number of 25G SFP28 ports 4
    Number of 100G QSFP28 ports 16


    Serial console port RJ45


    CPU temperature monitor Yes
    PCB temperature monitor Yes
    Voltage Monitor Yes

    Certification & Approvals

    Certification CE, EAC, ROHS
    IP 20

    Included parts

    RouterOS current releaseDownload
    Block DiagramOpen
    Safety and regulatory informationOpen
    SFP compatibility listOpen
    RouterOS software manualOpen
    Declaration of conformityOpen (CE)

    High resolution images

    Switching results

    ModeConfiguration1518 byte512 byte64 byte
    SwitchingNon blocking Layer 2 throughput138166.71677896.4399435.41636087.41034826.8529831.3
    SwitchingNon blocking Layer 2 capacity138166.73355792.8399435.43272174.81034826.81059662.6
    SwitchingNon blocking Layer 1 throughput138166.71700003.1399435.41699997.11034826.8695403.6
    SwitchingNon blocking Layer 1 capacity 138166.73400006.2399435.43399994.21034826.81390807.2
    Routingnone (L3HW)138028.51676218.1399435.41636087.4606408.5310481.2
    Routing25 ip filter rules (Fasttrack L3HW)138028.51676218.1399427.41636054.6577907.3295888.5

    Ethernet test results

    CRS520-4XS-16XQ-RMAL52400 (2.0 GHz) - all port test
    ModeConfiguration1518 byte512 byte64 byte
    Bridgingnone (fast path)2999.436424.45841.923928.67976.24339
    Bridging25 bridge filter rules2027.924626.72052.58406.92048.61114.4
    Routingnone (fast path)2960.135947.35707.723378.885384644.7
    Routing25 simple queues2081.525277.32114.48660.72158.41174.2
    Routing25 ip filter rules1338.616255.513405488.71334.5725.9
    1. All tests are done with Xena Networks specialized test equipment (XenaBay),and done according to RFC2544 (Xena2544)
    2. Max throughput is determined with 30+ second attempts with 0,1% packet loss tolerance in 64, 512, 1518 byte packet sizes
    3. Test results show device maximum performance, and are reached using mentioned hardware and software configuration, different configurations most likely will result in lower results

    The device has an operating system preinstalled and licensed. No separate purchase is necessary and the product is ready to use. The device includes free software updates for the life of the product or a minimum of 5 years starting from date of purchase..
