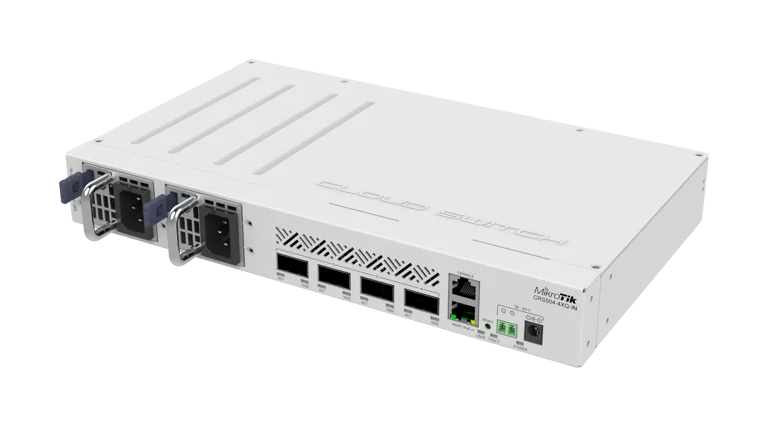

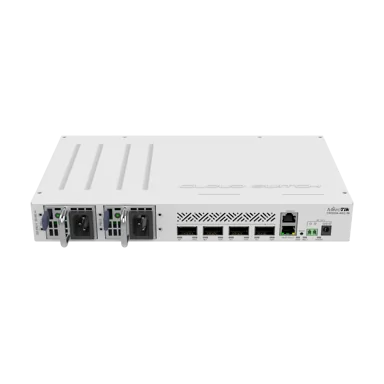

    CRS504-4XQ-IN Your most affordable, compact, energy-efficient doorway to the world of 100 Gigabit networking. This switch is the next step in upgrading existing 10 or 25 Gigabit networks. Multiple powering options, dual hot-swap power supplies.

    Our 100 Gigabit family keeps expanding – you’ve already seen the incredible CCR2216 100 Gigabit router. Now it’s time for a matching switch – the CRS504-4XQ-IN. The small size combined with the low power consumption (25W without attachments!) is perfect to start expanding 100 Gigabit networking in everyday setups. This speed is no longer limited to data centers, ISPs, and large offices. You too can upgrade your 10 or 25 Gigabit network and join the one hundred club!

    There are four 100 Gigabit QSFP28 ports. Use them to connect other 100 Gigabit devices or grab a breakout cable to connect multiple 25 Gigabit devices: each port is connected to four 25 Gigabit lines, allowing you to connect 16 x 25 Gigabit devices. In fact, you can mix and match all kinds of connections this way: 100 Gigabits on one port, 40 Gigabits on the other, 4x25 Gigabits on the third, and maybe even some 10G or 1G cables on the fourth. The mighty Marvell DX4310 switch-chip will handle everything without breaking a sweat!

    Obviously, there is an Ethernet port for management purposes as well.

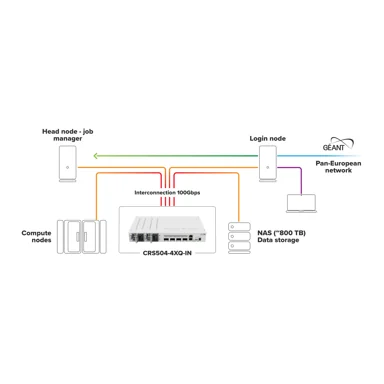

    We’ve been using this switch for quite some time now in the Genomics Data Network project. A high-capacity data network for our local scientists working on ground-breaking cancer treatments. Genome data can take up a lot of space, so you need exceptionally fast connections there. Also, with these devices, Latvia became the first Baltic country to establish a 100 Gigabit connection to the pan-European research network.

    With multiple powering options and the ability to be mounted on the wall, this switch will make any system administrator happy.

     Send purchase questions

    Specifications

    Details
    Product code CRS504-4XQ-IN
    Architecture MIPSBE
    CPU QCA9531
    CPU core count 1
    CPU nominal frequency 650 MHz
    Switch chip model 98DX4310
    Dimensions 320 x 185 x 44 mm
    RouterOS license 5
    Operating System RouterOS v7
    Size of RAM 64 MB
    Storage size 16 MB
    Storage type FLASH
    MTBF Approximately 200'000 hours at 25C
    Tested ambient temperature -40°C to 70°C
    Suggested price $799.00

    Powering

    Details
    Number of AC inputs 2
    AC input range 100-240
    Number of DC inputs 3 (2-pin terminal, DC jack, PoE-IN)
    DC jack input Voltage 36-57 V
    Number of PSU slots 2
    2-pin terminal input Voltage 36-57 V
    Frequency (Hz) 47-63
    Max power consumption 41 W
    Max power consumption without attachments 25 W
    Cooling type 2 fans
    PoE in 802.3 bt
    PoE in input Voltage 43-57 V

    Ethernet

    Details
    10/100 Ethernet ports 1

    Fiber

    Details
    Number of 100G QSFP28 ports 4

    Peripherals

    Details
    Serial console port RJ45

    Other

    Details
    PCB temperature monitor Yes

    Certification & Approvals

    Details
    Certification CE, EAC, ROHS
    IP 20

    Included parts

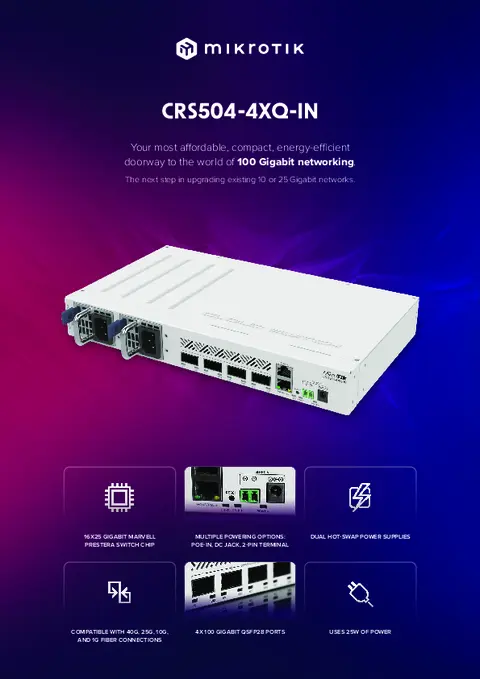

    BrochureOpen
    Quick GuideOpen
    User ManualOpen
    RouterOS current releaseDownload
    Block DiagramOpen
    SFP compatibility listOpen
    RouterOS software manualOpen
    Declaration of conformityOpen (CE)

    High resolution images

    Switching results

    CRS504-4XQ-IN
    ModeConfiguration1518 byte512 byte64 byte
    kppsMbpskppsMbpskppsMbps
    SwitchingNon blocking Layer 2 throughput32517.9394897.194008.5385058.6595386.9304838.1
    SwitchingNon blocking Layer 2 capacity32517.9789794.394008.5770117.3595386.9609676.2
    SwitchingNon blocking Layer 1 throughput32517.9400100.094008.5400100.0595386.9400100.0
    SwitchingNon blocking Layer 1 capacity 32517.9800200.094008.5800200.0595386.9800200.0
    Routingnone (L3HW)32509.7394798.193984.9384962.1299891.2163140.8
    Routing25 ip filter rules (Fasttrack L3HW)32509.7394798.193984.8384961.9288803.4157109.0

    Ethernet test results

    CRS504-4XQ-INQCA9531 all port test
    ModeConfiguration1518 byte512 byte64 byte
    kppsMbpskppsMbpskppsMbps
    Bridgingnone (fast path)37,4454.282,8339.1162,583.2
    Bridging25 bridge filter rules33,8410.547,8195.875,638.7
    Routingnone (fast path)37,2451.873,3300.2144,974.2
    Routing25 simple queues36,4442.052,4214.654,427.9
    Routing25 ip filter rules33,8410.541,4169.641,721.4
    1. All tests are done with Xena Networks specialized test equipment (XenaBay),and done according to RFC2544 (Xena2544)
    2. Max throughput is determined with 30+ second attempts with 0,1% packet loss tolerance in 64, 512, 1518 byte packet sizes
    3. Test results show device maximum performance, and are reached using mentioned hardware and software configuration, different configurations most likely will result in lower results

    The device has an operating system preinstalled and licensed. No separate purchase is necessary and the product is ready to use. The device includes free software updates for the life of the product or a minimum of 5 years starting from date of purchase..
