CCR1009-7G-1C-PC
7x Gigabit Ethernet, 1x Combo port (SFP or Gigabit Ethernet), 9 cores x 1GHz CPU, 1GB RAM, passive cooling case, RouterOS L6
The new updated revision of CCR1009 is here. We attempted to combine all the customer feedback and best practice in CCR device manufacturing that we learned over the last three years, since the first CCR1009 devices were launched.
Important changes:
No switch-chip - the device now features only fully independent Ethernet ports each with a direct connection to the CPU, allowing to overcome previous shared 1Gbit limitation from switch-chip ports and utilize full potential of CPU processing power on those ports.
Combo-port - a single 1Gbit software interface that has two hardware interfaces - an SFP cage and a Gigabit Ethernet port, allowing you to use any type of connection available to you. It is also possible to switch between both physical interfaces in RouterOS. In an event of disconnect the combo-port provides hardware fail-over feature.
100Mbps SFP support - this is our first device that supports 100BASE-LX/100BASE-SX/100BASE-BX fiber modules, as well as standard 1.25G SFP modules.
More throughput - because the ports are now directly connected to the CPU, the new CCR1009 can achieve even higher throughput.
This unit is equipped with passive cooling enclosure, two heat-pipes and a specially designed heat-sink, so its completely silent. It’s powered by an external 24V 2.5A AC/DC adapter and supports power redundancy if you also power it from the PoE input port.
Specification
- Product code CCR1009-7G-1C-PC
- Suggested price $465.00
- Architecture TILE
- CPU TLR4-00980
- CPU core count 9
- CPU nominal frequency 1 GHz
- CPU Threads count 9
- Dimensions 272 x 190 x 44 mm
- RouterOS license 6
- Operating System RouterOS
- Size of RAM 1 GB
- Storage size 128 MB
- Storage type NAND
- MTBF Approximately 200'000 hours at 25C
- Tested ambient temperature -20°C to 60°C
- Number of DC inputs 2 (DC jack, PoE-IN)
- DC jack input Voltage 18-57 V
- Max power consumption 30 W
- Max power consumption without attachments 25 W
- PoE in Passive PoE
- Cooling type Passive
- PoE in input Voltage 18-57 V
- 10/100/1000 Ethernet ports 7
- Ethernet Combo ports 1
- Serial console port RS232 + Header
- Number of USB ports 1
- USB Power Reset Yes
- USB slot type microUSB type AB
- Max USB current (A) 1
- CPU temperature monitor Yes
- Current Monitor Yes
- PCB temperature monitor Yes
- Voltage Monitor Yes
- Beeper Yes
- Certification CE, EAC, ROHS
- IP IP20
| CCR1009-7G-1C-PC | Tile 9 core all port test with combo-port | ||||||
| Mode | Configuration | 1518 byte | 512 byte | 64 byte | |||
| kpps | Mbps | kpps | Mbps | kpps | Mbps | ||
| Bridging | none (fast path) | 652.8 | 7,927.6 | 1,931.2 | 7,910.2 | 14,874.0 | 7,615.5 |
| Bridging | 25 bridge filter rules | 649.6 | 7,888.7 | 1,183.8 | 4,848.8 | 1,184.0 | 606.2 |
| Routing | none (fast path) | 652.8 | 7,927.6 | 1,931.2 | 7,910.2 | 14,581.0 | 7,465.5 |
| Routing | 25 simple queues | 652.8 | 7,927.6 | 1,686.0 | 7,175.6 | 1,699.6 | 1,142.1 |
| Routing | 25 ip filter rules | 615.8 | 7,478.3 | 660.9 | 2,812.8 | 668.3 | 449.1 |
- All tests are done with Xena Networks specialized test equipment (XenaBay),and done according to RFC2544 (Xena2544)
- Max throughput is determined with 30+ second attempts with 0,1% packet loss tolerance in 64, 512, 1518 byte packet sizes
- Test results show device maximum performance, and are reached using mentioned hardware and software configuration, different configurations most likely will result in lower results
| CCR1009-7G-1C-PC | CCR1009 series 1 GHz IPsec throughput | ||||||
| Mode | Configuration | 1400 byte | 512 byte | 64 byte | |||
| kpps | Mbps | kpps | Mbps | kpps | Mbps | ||
| Single tunnel | AES-128-CBC + SHA1 | 112.5 | 1260.0 | 112.6 | 461.2 | 115.4 | 59.1 |
| 256 tunnels | AES-128-CBC + SHA1 | 232.1 | 2599.5 | 268.2 | 1098.5 | 277.3 | 142.0 |
| 256 tunnels | AES-128-CBC + SHA256 | 232.1 | 2599.5 | 268.2 | 1098.5 | 277.3 | 142.0 |
| 256 tunnels | AES-256-CBC + SHA1 | 230.0 | 2576.0 | 265.4 | 1087.1 | 260.7 | 133.5 |
| 256 tunnels | AES-256-CBC + SHA256 | 230.0 | 2576.0 | 265.4 | 1087.1 | 260.7 | 133.5 |
- All tests are done with Xena Networks specialized test equipment (XenaBay),and done according to RFC2544 (Xena2544)
- Max throughput is determined with 30+ second attempts with 0,1% packet loss tolerance in 64, 512, 1400 byte packet sizes
- Test results show device maximum performance, and are reached using mentioned hardware and software configuration, different configurations most likely will result in lower results

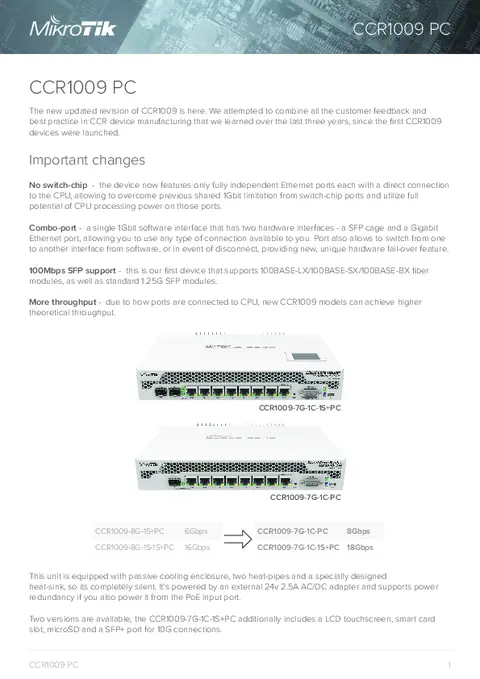

Documents
