| Name |

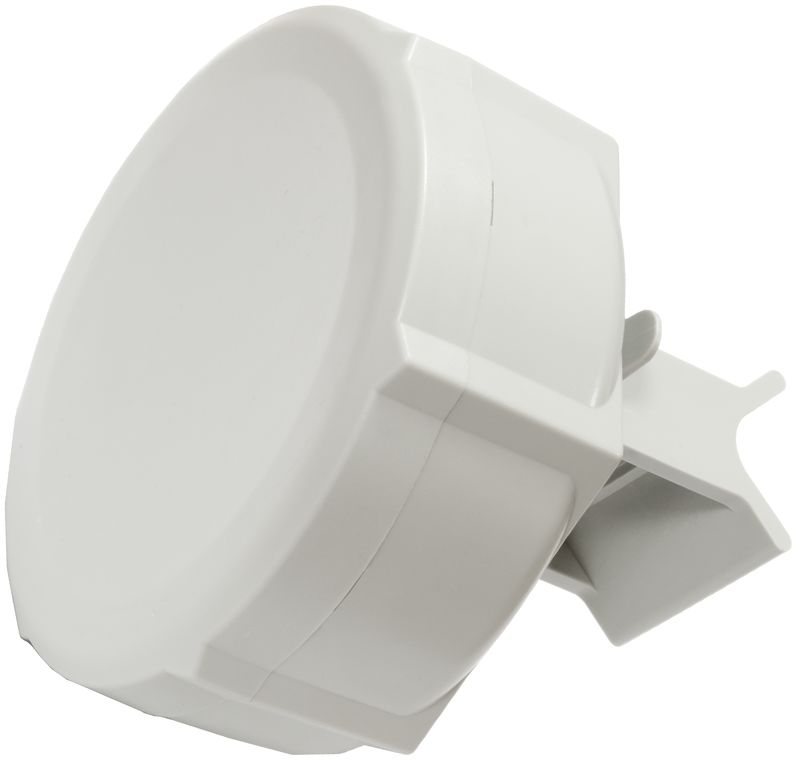

SXT Lite5 ac
|
wsAP ac lite
|
| 10/100 Ethernet ports |
1
|
3
|
| 802.11a |
Yes
|
Yes
|
| 802.11b |
Yes
|
Yes
|
| 802.11g |
Yes
|
Yes
|
| 802.11n |
Yes
|
Yes
|
| Antenna gain |
1.5
|
1.5
|
| Antenna gain dBi for Wireless 2 |
16
|
3
|
| Antenna header count |
2
|
N/A
|
| Architecture |
MIPSBE
|
MIPSBE
|
| CPU |
QCA9531
|
QCA9531
|
| CPU core count |
1
|
1
|
| CPU nominal frequency |
650 MHz
|
650 MHz
|
| Can be used indoors |
N/A
|
Yes
|
| Can be used outdoors |
Yes
|
N/A
|
| Certification |
FCC
|
CE, FCC, IC, EAC, ROHS
|
| Cooling type |
Passive
|
Passive
|
| Dimensions |
140x140x56mm
|
112 x 126 x 30 mm
|
| High voltage PoE-Out current limit |
N/A
|
420 mA
|
| IP |
N/A
|
IP20
|
| Low voltage PoE-Out current limit |
N/A
|
420 mA
|
| MTBF |
Approximately 100'000 hours at 25C
|
Approximately 100'000 hours at 25C
|
| Max USB current (A) |
N/A
|
0.5
|
| Max power consumption |
8 W
|
20 W
|
| Max power consumption without attachments |
8W
|
6 W
|
| Max total out (A) |
N/A
|
420 mA
|
| Mode button |
N/A
|
Yes
|
| Number of DC inputs |
1
|
1
|
| Number of USB ports |
N/A
|
1
|
| Operating System |
RouterOS
|
RouterOS
|
| PoE in |
Passive PoE
|
802.3af/at
|
| PoE in input Voltage |
8-30 V
|
18-57 V
|
| PoE out |
N/A
|
Passive PoE
|
| PoE-out ports |
N/A
|
Ether3
|
| RouterOS license |
3
|
4
|
| Size of RAM |
64 MB
|
64 MB
|
| Storage size |
16 MB
|
16 MB
|
| Storage type |
FLASH
|
FLASH
|
| Switch chip model |
N/A
|
QCA9531
|
| TX power |
| 2.4 GHz | |
|---|
| TX | RX | | 1MBit/s | 17 | -93 | | 11MBit/s | 17 | -86 | | 6MBit/s | 17 | -90 | | 54MBit/s | 15 | -71 | | MCS0 | 17 | -90 | | MCS7 | 13 | -68 | | 5 GHz | |
|---|
| TX | RX | | 6MBit/s | 29 | -96 | | 54MBit/s | 26 | -81 | | MCS0 | 29 | -96 | | MCS7 | 25 | -77 | | MCS9 | 22 | -72 |
|
| 2.4 GHz | |
|---|
| TX | RX | | 1MBit/s | 22 | -96 | | 11MBit/s | 22 | -89 | | 6MBit/s | 20 | -93 | | 54MBit/s | 18 | -74 | | MCS0 | 20 | -93 | | MCS7 | 16 | -71 | | 5 GHz | |
|---|
| TX | RX | | 6MBit/s | 23 | -93 | | 54MBit/s | 20 | -75 | | MCS0 | 23 | -93 | | MCS7 | 19 | -71 | | MCS9 | 16 | -63 |
|
| Tested ambient temperature |
-40°C to 70°C
|
-40°C to 60°C
|
| USB Power Reset |
N/A
|
Yes
|
| USB slot type |
N/A
|
USB type A
|
| Wi-Fi generation |
Wi-Fi 5
|
Wi-Fi 5
|
| WiFi speed |
N/A
|
AC750
|
| Wireless 1 Max data rate |
150 Mbit/s
|
300 Mbit/s
|
| Wireless 1 Number of chains |
1
|
2
|
| Wireless 1 band |
2.4 GHz
|
2.4 GHz
|
| Wireless 1 generation |
Wi-Fi 4
|
Wi-Fi 4
|
| Wireless 2 Max data rate |
867 Mbit/s
|
433 Mbit/s
|
| Wireless 2 Number of chains |
2
|
1
|
| Wireless 2 band |
5 GHz
|
5 GHz
|
| Wireless 2 generation |
Wi-Fi 5
|
Wi-Fi 5
|
| Wireless chip model |
QCA9531
|
QCA9531
|
| Wireless secondary chip model |
QCA9892
|
QCA-9887
|
| Wireless secondary standards |
802.11a/n/ac
|
802.11a/n/ac
|
| Wireless standards |
802.11b/g/n
|
802.11b/g/n
|
