| Name |

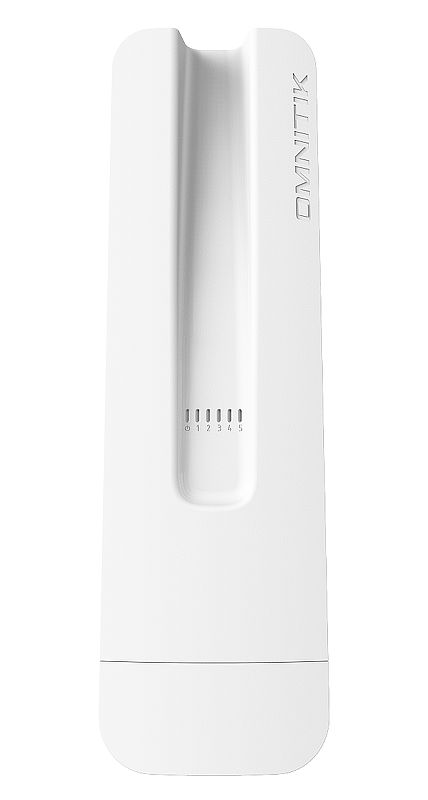

OmniTIK 5
|
OmniTIK 5 PoE
|
OmniTIK 5 ac
|
| 10/100 Ethernet ports |
5
|
5
|
N/A
|
| 10/100/1000 Ethernet ports |
N/A
|
N/A
|
5
|
| 802.11a |
Yes
|
Yes
|
Yes
|
| 802.11n |
Yes
|
Yes
|
Yes
|
| Antenna gain |
7.5
|
7.5
|
7.5
|
| Antenna header count |
N/A
|
2
|
N/A
|
| Architecture |
MIPSBE
|
MIPSBE
|
MIPSBE
|
| Beeper |
Yes
|
Yes
|
Yes
|
| CPU |
AR9344
|
AR9344
|
QCA9557
|
| CPU core count |
1
|
1
|
1
|
| CPU nominal frequency |
600 MHz
|
600 MHz
|
720 MHz
|
| Can be used outdoors |
Yes
|
Yes
|
Yes
|
| Certification |
CE, FCC, IC, EAC, ROHS
|
CE, FCC, IC, EAC, ROHS
|
CE, FCC, IC, EAC, ROHS
|
| Cooling type |
Passive
|
Passive
|
Passive
|
| Dimensions |
368x125x55mm
|
368x125x55mm
|
416 x 129 x 58 mm
|
| IP |
IP54
|
IP54
|
IP54
|
| MTBF |
Approximately 100'000 hours at 25C
|
Approximately 100'000 hours at 25C
|
Approximately 200'000 hours at 25C
|
| Max USB current (A) |
1
|
1
|
1
|
| Max out per port output (input 18-30 V) |
N/A
|
1 A
|
N/A
|
| Max power consumption |
11 W
|
59 W
|
14 W
|
| Max power consumption without attachments |
N/A
|
11 W
|
N/A
|
| Max total out (A) |
N/A
|
2 A
|
N/A
|
| Number of DC inputs |
1
|
1
|
1
|
| Number of USB ports |
1
|
1
|
1
|
| Operating System |
RouterOS v5 and above
|
RouterOS
|
RouterOS
|
| PCB temperature monitor |
N/A
|
Yes
|
N/A
|
| PoE in |
Passive PoE
|
Passive PoE
|
Passive PoE
|
| PoE in input Voltage |
11-30 V
|
11-30 V
|
12-57 V
|
| PoE out |
N/A
|
Passive PoE
|
N/A
|
| PoE-out ports |
N/A
|
Ether2-Ether5
|
N/A
|
| RouterOS license |
4
|
5
|
4
|
| Size of RAM |
64 MB
|
128 MB
|
128 MB
|
| Storage size |
16 MB
|
16 MB
|
16 MB
|
| Storage type |
FLASH
|
FLASH
|
FLASH
|
| Switch chip model |
AR9344
|
AR9344
|
QCA8337
|
| TX power |
| 5 GHz | |
|---|
| TX | RX | | 6MBit/s | 30 | -96 | | 54MBit/s | 27 | -78 | | MCS0 | 30 | -96 | | MCS7 | 26 | -75 |
|
| 5 GHz | |
|---|
| TX | RX | | 6MBit/s | 30 | -96 | | 54MBit/s | 27 | -78 | | MCS0 | 30 | -96 | | MCS7 | 26 | -75 |
|
| 5 GHz | |
|---|
| TX | RX | | 6MBit/s | 31 | -96 | | 54MBit/s | 27 | -81 | | MCS0 | 30 | -96 | | MCS7 | 27 | -77 | | MCS9 | 22 | -72 |
|
| Tested ambient temperature |
-40°C to 70°C
|
-40°C to 70°C
|
-40°C to 70°C
|
| USB Power Reset |
Yes
|
Yes
|
Yes
|
| USB slot type |
USB type A
|
USB type A
|
USB type A
|
| Voltage Monitor |
N/A
|
Yes
|
N/A
|
| Wi-Fi generation |
Wi-Fi 4
|
Wi-Fi 4
|
Wi-Fi 5
|
| WiFi speed |
N/A
|
N/A
|
AC900
|
| Wireless 1 Max data rate |
300 Mbit/s
|
300 Mbit/s
|
867 Mbit/s
|
| Wireless 1 Number of chains |
2
|
2
|
2
|
| Wireless 1 band |
5 GHz
|
5 GHz
|
5 GHz
|
| Wireless 1 generation |
Wi-Fi 4
|
Wi-Fi 4
|
Wi-Fi 5
|
| Wireless chip model |
AR9344
|
AR9344
|
QCA9892
|
| Wireless standards |
802.11a/n
|
802.11a/n
|
802.11a/n/ac
|
