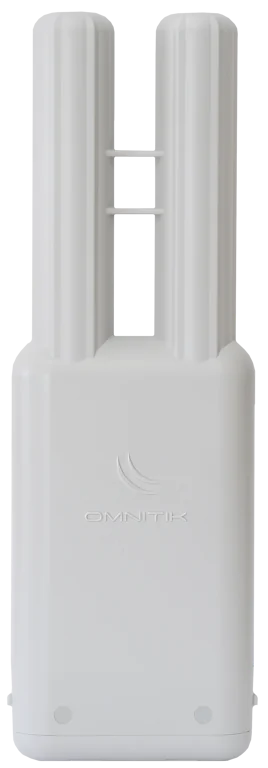

    OmniTIK 5 7.5dBi Integrated AP, 5GHz Dual chain, 5xEthernet ports

    OmniTIK is a weatherproof outdoor AP with dual-polarized omni antennas - the perfect companion for our SXT, or for any other 802.11 standard device.

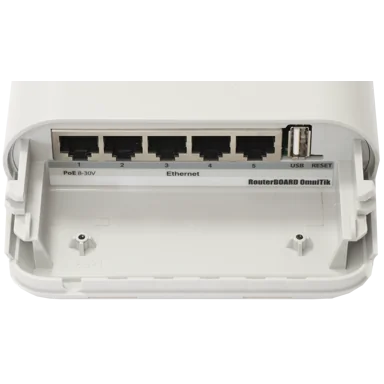

    Weatherproof, durable and ready to use. It has five 10/100 Ethernet ports, PoE support and a built-in 802.11a/n wireless radio. It supports Nv2 TDMA technology with up to 200Mbit aggregate throughput.

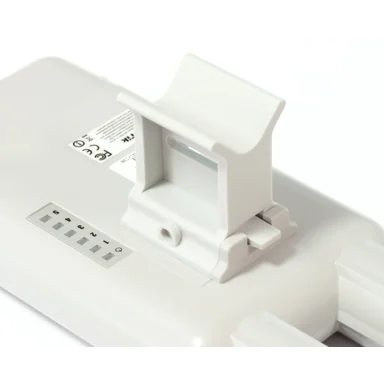

    LED signal indicators on it’s back are fully customizable, show Ethernet activity or wireless signal - or any other information from RouterOS. The USB port gives the ability to connect a 3G modem or a storage drive. The OmniTIK runs RouterOS with all it’s features

    Box contains: OmniTik U-5HnD, mounting loops, PoE injector, power adapter

    - RBOmniTikU-5HnD-US (USA) is factory locked for 5170-5250MHz and 5725-5835MHz frequencies. This lock can not be removed.

    - RBOmniTikU-5HnD (International) supports 5150MHz-5875MHz range (Specific frequency range can be limited by country regulations).

     Send purchase questions

    Specifications

    Details
    Product code RBOmniTikU-5HnD
    Architecture MIPSBE
    CPU AR9344
    CPU core count 1
    CPU nominal frequency 600 MHz
    Switch chip model AR9344
    Dimensions 368x125x55mm
    RouterOS license 4
    Operating System RouterOS v5 and above
    Size of RAM 64 MB
    Storage size 16 MB
    Storage type FLASH
    MTBF Approximately 100'000 hours at 25C
    Tested ambient temperature -40°C to 70°C
    Suggested price $89.00

    Powering

    Details
    Number of DC inputs 1 (PoE-IN)
    Max power consumption 11 W
    Cooling type Passive
    PoE in Passive PoE
    PoE in input Voltage 11-30 V

    Wireless specifications

    Details
    Wireless 5 GHz Max data rate 300 Mbit/s
    Wireless 5 GHz number of chains 2
    Wireless 5 GHz standards 802.11a/n
    Antenna gain dBi for 5 GHz 7.5
    Wireless 5 GHz chip model AR9344
    Wireless 5 GHz generation Wi-Fi 4

    Ethernet

    Details
    10/100 Ethernet ports 5

    Peripherals

    Details
    Number of USB ports 1
    USB Power Reset Yes
    USB slot type USB type A
    Max USB current (A) 1

    Other

    Details
    Beeper Yes

    Certification & Approvals

    Details
    Certification CE, FCC, IC, EAC, ROHS
    IP IP54

    Wireless specifications

    5 GHzTransmit (dBm)Receive Sensitivity
    6MBit/s30-96
    54MBit/s27-78
    MCS030-96
    MCS726-75

    Included parts

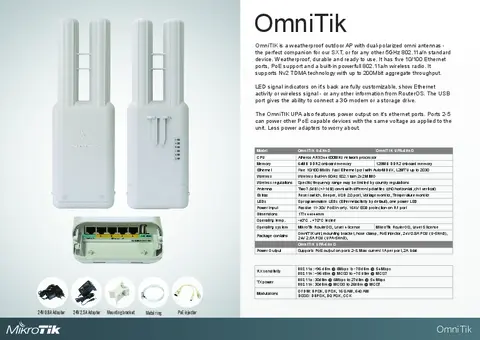

    BrochureOpen
    Quick GuideOpen
    User ManualOpen
    RouterOS current release
    Antenna patternsOpen
    RouterOS software manualOpen
    Declaration of conformityOpen (CE)
    Declaration of conformityOpen (FCC)

    High resolution images

    #
    #
    #

    Ethernet test results

    RBOmniTikU-5HnDr2AR9344 100M all port test
    ModeConfiguration1518 byte512 byte64 byte
    kppsMbpskppsMbpskppsMbps
    Bridgingnone (fast path)40.0485.8116.5477.2269.6138.0
    Bridging25 bridge filter rules40.0485.886.0352.387.644.9
    Routingnone (fast path)40.0485.8116.5477.2226.9116.2
    Routing25 simple queues40.0485.8103.9425.6106.654.6
    Routing25 ip filter rules40.0485.859.6244.160.531.0
    1. All tests are done with Xena Networks specialized test equipment (XenaBay),and done according to RFC2544 (Xena2544)
    2. Max throughput is determined with 30+ second attempts with 0,1% packet loss tolerance in 64, 512, 1518 byte packet sizes
    3. Test results show device maximum performance, and are reached using mentioned hardware and software configuration, different configurations most likely will result in lower results

    The device has an operating system preinstalled and licensed. No separate purchase is necessary and the product is ready to use. The device includes free software updates for the life of the product or a minimum of 5 years starting from date of purchase..
