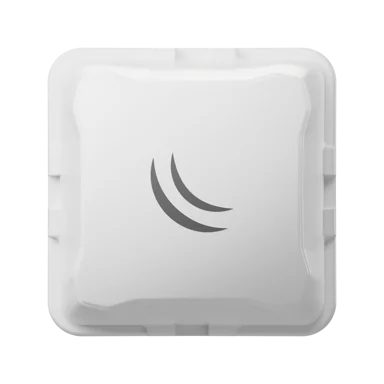

    Wireless Wire Cube A 2 Gb/s 60 GHz aggregate link with a 5 GHz failover. Forget about wires or downtime!

    Discontinued


    If you are managing networks in a large, busy area (like a park or a stadium), then you have probably experienced all kinds of problems – massive interference, signal loss during bad weather, etc. And laying wires everywhere can be clumsy and expensive, sometimes even impossible. Finally, there is a simple, secure and extremely cost-effective solution: the Wireless Wire Cube.

    It is a kit of two pre-paired devices that form a blazing fast AES encrypted wireless connection. Pure plug-and-play: just point the Cubes at one another and power them on!

    The 60 GHz frequency is unaffected by the crowded wireless spectrum, it offers high speed and capacity. Traditional 60 GHz devices, however, can have limited connectivity during bad weather. But not the Wireless Wire Cube! It features an automatic 5 GHz backup connection, so you don’t have to worry about any downtime. No need for additional configuration - the 5 GHz backup connection works out-of-the-box! The Cube will take care of your connection at all times.

    It can easily cover a distance of 800 meters and reach fiber-like speed. The Сube form-factor has been designed with function and durability in mind. And it attracts less unwanted attention due to its size and shape. The box includes two Cube 60G ac devices that are already paired together, power supplies, PoE injectors and mounting kits for both devices.


     Send purchase questions

    Specifications

    Details
    Product code CubeG-5ac60adpair
    Architecture ARM 32bit
    CPU IPQ-4019
    CPU core count 4
    CPU nominal frequency 716 MHz
    RouterOS license 3
    Size of RAM 256 MB
    Storage size 16 MB
    Storage type FLASH
    Tested ambient temperature -40°C to 70°C
    Suggested price $270.00

    Powering

    Details
    Number of DC inputs 1 (PoE-IN)
    Max power consumption 9 W
    Max power consumption without attachments 9 W
    Cooling type Passive
    PoE in 802.3af/at
    PoE in input Voltage 12-57 V

    Wireless specifications

    Details
    Wireless 5 GHz Max data rate 433 Mbit/s
    Wireless 5 GHz number of chains 1
    Wireless 5 GHz standards 802.11a/n/ac
    Antenna gain dBi for 5 GHz 11.5
    Wireless 5 GHz chip model IPQ-4019
    Wireless 5 GHz generation Wi-Fi 5

    Ethernet

    Details
    10/100/1000 Ethernet ports 1

    Certification & Approvals

    Details
    Certification CE, FCC, IC, EAC, ROHS
    IP IP54

    Wireless specifications

    5 GHzTransmit (dBm)Receive Sensitivity
    6MBit/s22-93
    54MBit/s18-74
    MCS022-93
    MCS717-71
    MCS915-68

    Included parts

    BrochureOpen
    Quick GuideOpen
    User ManualOpen
    RouterOS current release
    Selection guide for PtMP linksOpen
    FCC Grant of Certification (60GHz)Open
    Selection guide for PtP linksOpen
    Declaration of conformityOpen (CE)
    FCC Grant of Certification (5GHz)Open
